| Model Variations |
CG319X-BK |
| Panel |
|
| Type |
IPS |
| Backlight |
Wide-Gamut LED |
| Size |
31.1" / 78.9 cm |
| Native Resolution |
4096 x 2160 (17:9 aspect ratio) |
| Viewable Image Size (H x V) |
698.0 x 368.1 mm |
| Pixel Pitch |
0.170 x 0.170 mm |
| Pixel Density |
149ppi |
| Grayscale Tones |
DisplayPort, HDMI: 1,024 tones (a palette of 65 thousand tones) |
| Display Colors |
DisplayPort, HDMI: 1.07 billion from 24-bit palette |
| Viewing Angles (H / V, typical) |
178°, 178° |
| Brightness (typical) |
350 cd/m2 |
| Contrast Ratio (typical) |
1500:1 |
| HDR Gamma |
HLG, PQ curve |
| Response Time (typical) |
9 ms (Gray-to-gray) |
| Color Gamut (typical) |
Adobe RGB: 99%, DCI-P3: 98% |
| Video Signals |
|
| Input Terminals |
DisplayPort x 2 (HDCP 1.3), HDMI x 2 (Deep Color, HDCP 2.2 / 1.4) |
| Digital Scanning Frequency (H / V) |
DisplayPort: 25 - 137 kHz, 23 - 61 Hz
HDMI: 15 - 136 kHz, 23 - 61 Hz |
| USB |
|
| Upstream |
USB 3.1 Gen 1: Type-B |
| Downstream |
USB 3.1 Gen 1: Type-A x 3 (Battery Charging 10.5 W max. x1) |
| Power |
|
| Power Requirements |
AC 100 - 240 V, 50 / 60 Hz |
| Typical Power Consumption |
52 W |
| Maximum Power Consumption |
140 W |
| Power Save Mode |
1.2 W or less |
| Standby Mode |
1.2 W or less |

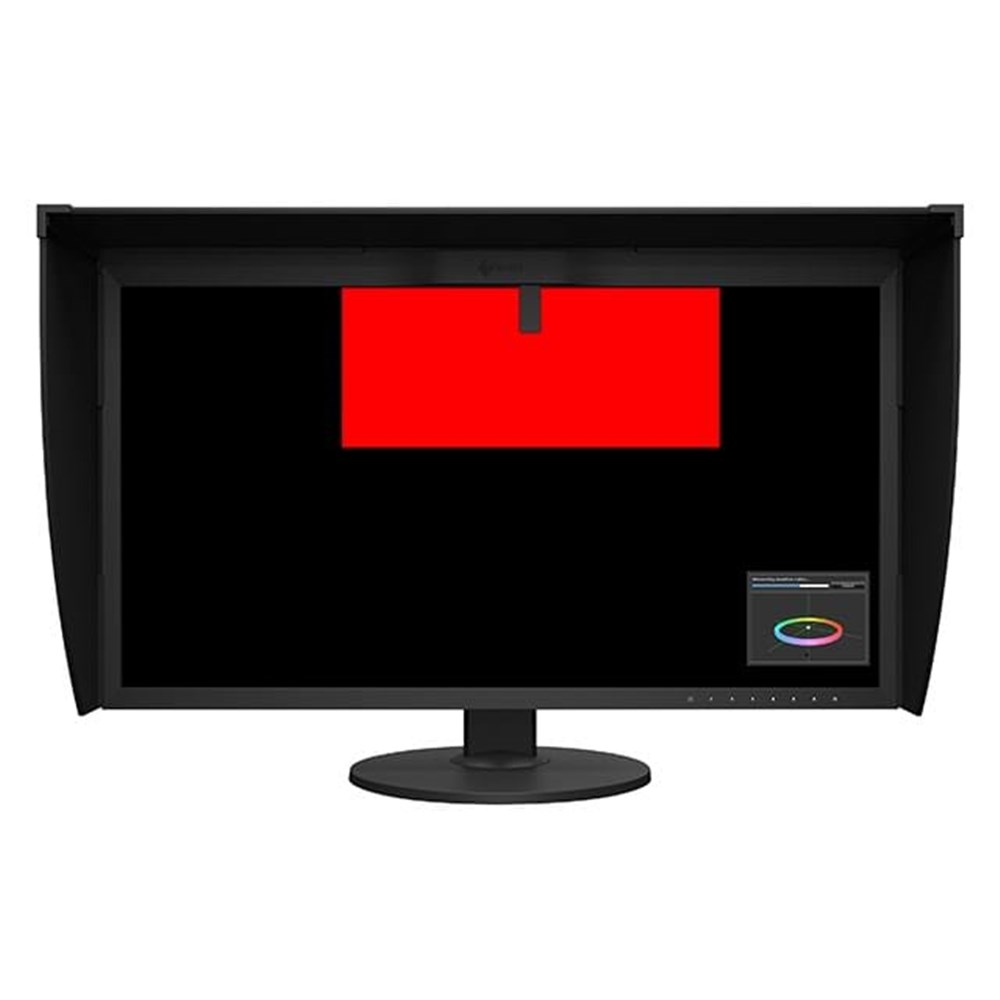

| Built-in Calibration Sensor |
Yes |
| Features & Functions |
|
| Brightness Stabilization |
Yes |
| Digital Uniformity Equalizer |
Yes |
| Preset Modes |
Color Mode (BT.2020, BT.709, DCI, PQ_DCI, PQ_BT.2100,
HLG_BT.2100, Adobe RGB, sRGB, Calibration) |
| OSD Languages |
English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese |
| Others |
Screen Size (Full Screen, Aspect Ratio, Dot by Dot), Color Adjustment (Brightness, Temperature, Gamma, Color Gamut, Hue, Saturation, Clipping, XYZ Format, Gain, Black Level, Independent 6-Color Control, Reset), Range Extension, HDMI Settings (Noise Reduction, Film Detection, Safe Area Marker, Safe Area Size, Border Color), Auto Input Detection, Menu Rotation, USB CHARGE Port, Power Save, Indicator, Beep, Input Skip, Mode Skip, Signal Switching, Information, DUE Priority, Key Lock, Picture Setup, Signal Format, Zoom, BT.709 Gamut warning, All Reset, I/P Conversion |
| Physical Specifications |
|
| Dimensions (Landscape, W x H x D) |
735 x 434 - 588 x 290 mm |
| Dimensions (Without Stand, W x H x D) |
735 x 423 x 71.5 mm |

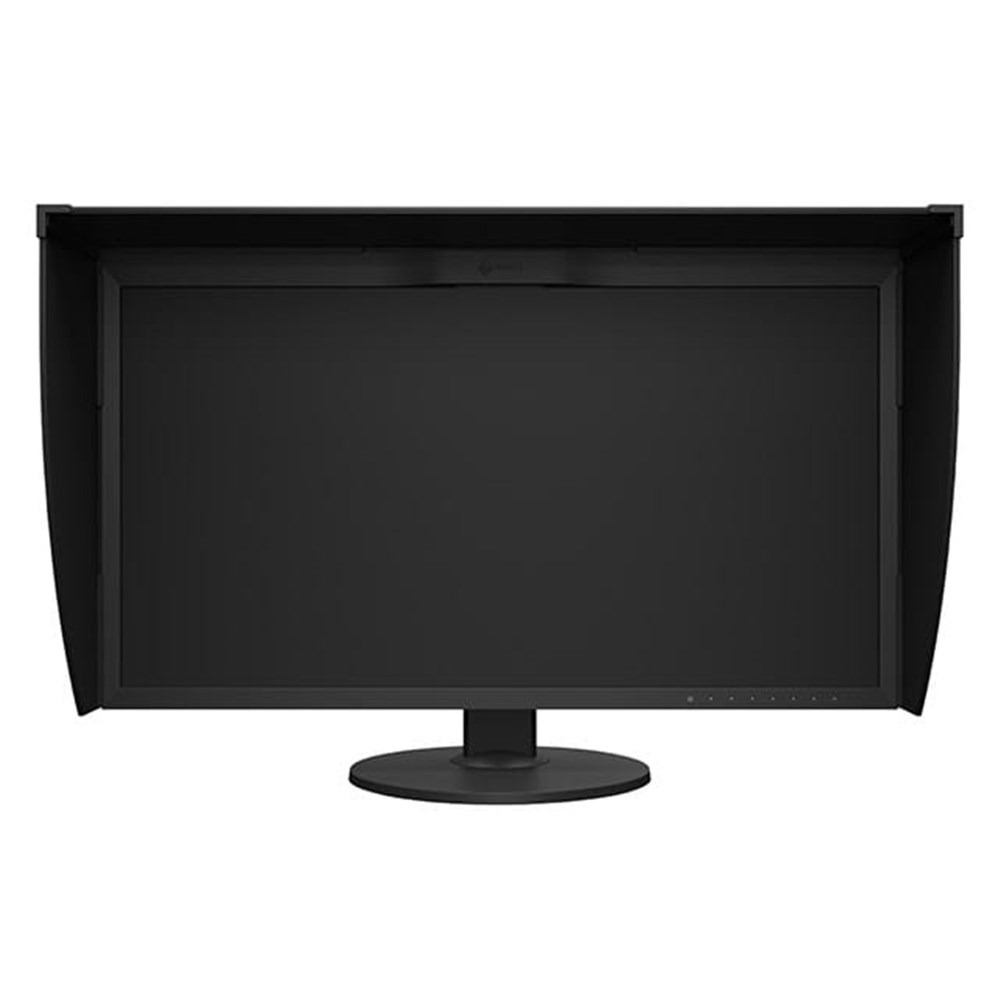

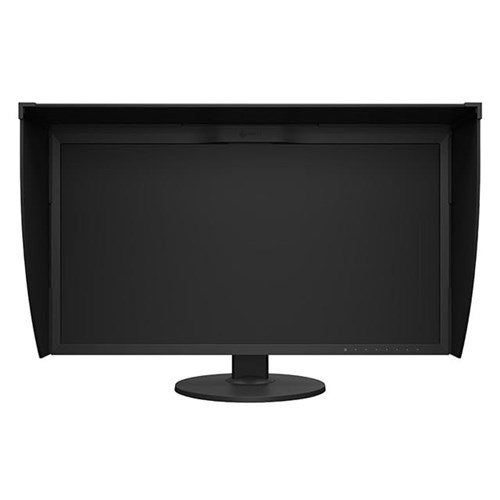

| Dimensions (Landscape with Hood, W x H x D) |
754.4 x 443.6 - 597.6 x 381.5 mm |
| Net Weight |
12.4 kg / 27.3 lbs |
| Net Weight (Without Stand) |
8.3 kg / 18.3 lbs |
| Net Weight (With Hood) |
13.3 kg / 29.3 lbs |
| Height Adjustment Range |
154 mm |
| Tilt |
35° Up, 5° Down |
| Swivel |
344° |
| Hole Spacing (VESA Standard) |
100 x 100 mm |
| Environmental Requirements |
|
| Operating Temperature |
Landscape: 0 - 35 °C |
| Operating Humidity (R.H., non condensing) |
20 - 80 % |
| Certifications & Standards (Please contact EIZO for the latest information.) |
CB, CE, TUV/GS, cTUVus, FCC-B, CAN ICES-3 (B), TUV/S, PSE, VCCI-B, RCM, EAC, RoHS, WEEE, TUV/Ergonomics, TUV/Color Accuracy (Quick Stability), FograCert Softproofing System (class A) |
| Proprietary Software |
|
| Color Mangement Software ColorNavigator 7 |
Supported |
| Color Mangement Software ColorNavigator 6 |
Supported |
| Dedicated Software |
|
| Monitor Management Software ColorNavigator NX |
Supported |
| Supplied Accessories (May vary by country. Please contact EIZO for details.) |
|
| Signal Cables |
DisplayPort (2 m), Mini DisplayPort - DisplayPort (2 m), HDMI (2 m) |
| Others |
AC power cord, USB cable, Setup guide, Adjustment certificate, ScreenCleaner, Monitor hood, Warranty card |
| Dimension Drawing |
PDF |
