Amaran Ray 360C RGB LED Bowens Mount Light Kit

121413

inc GST
Increase value Decrease value
  • Product Description
  • Specifications
  • What's in the Box?

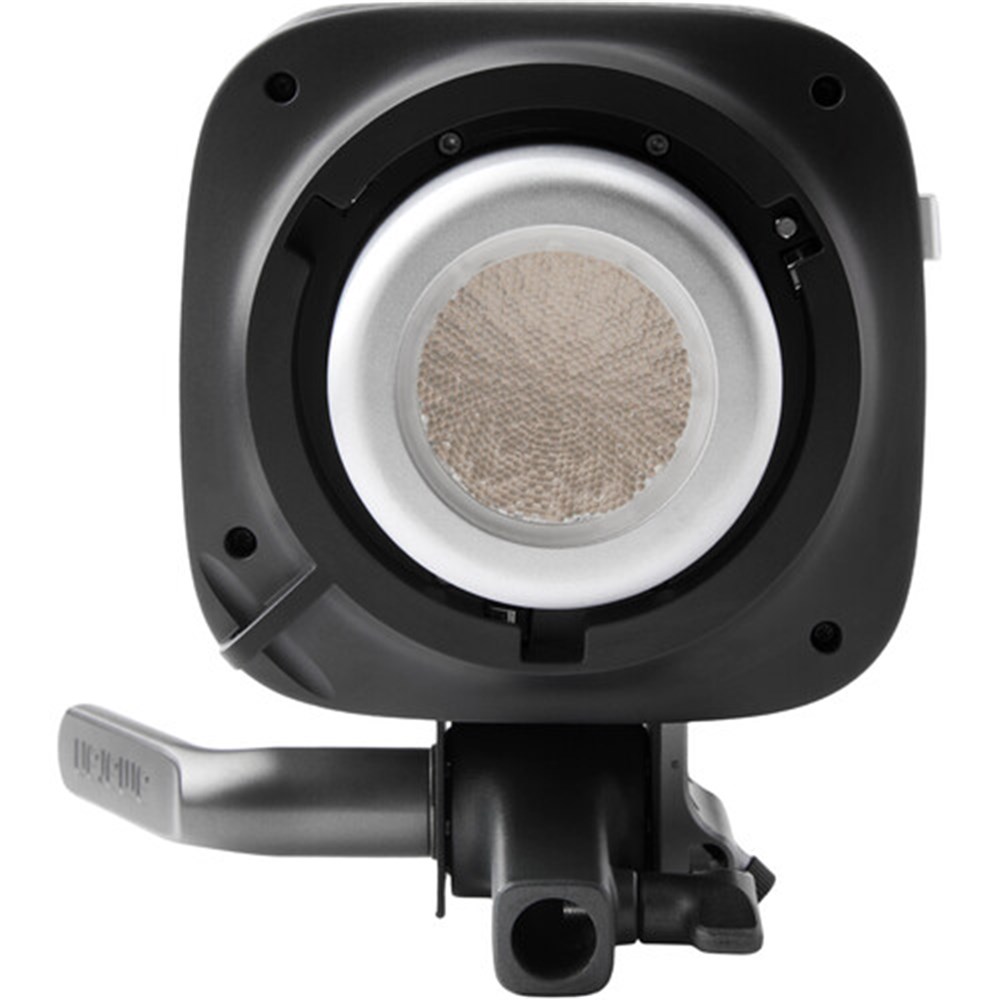

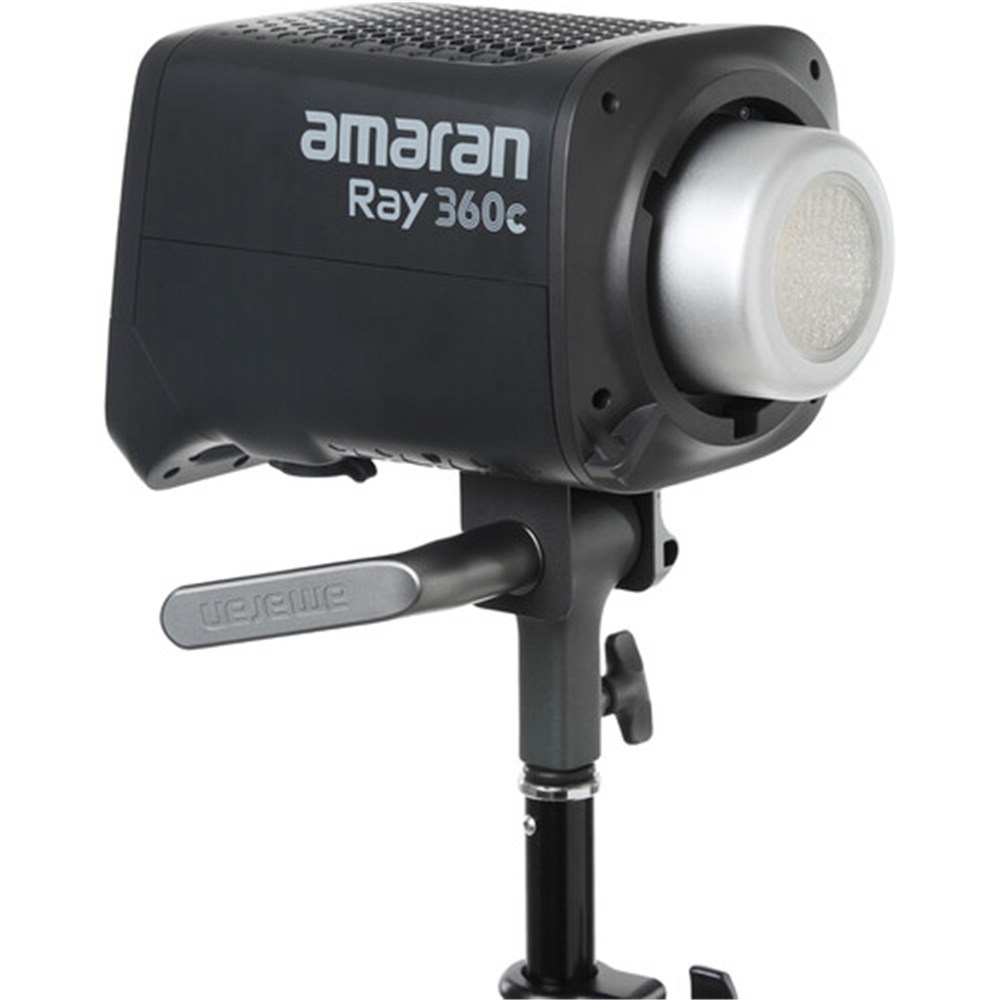

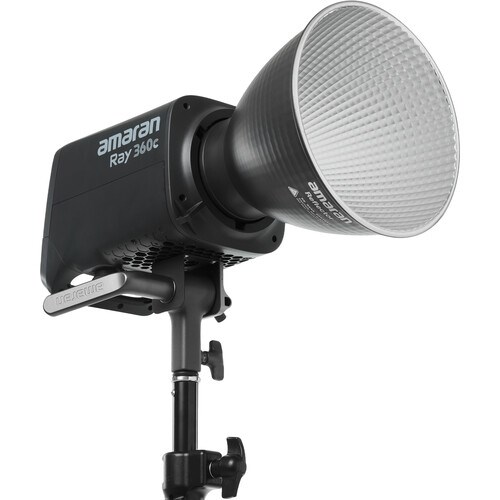

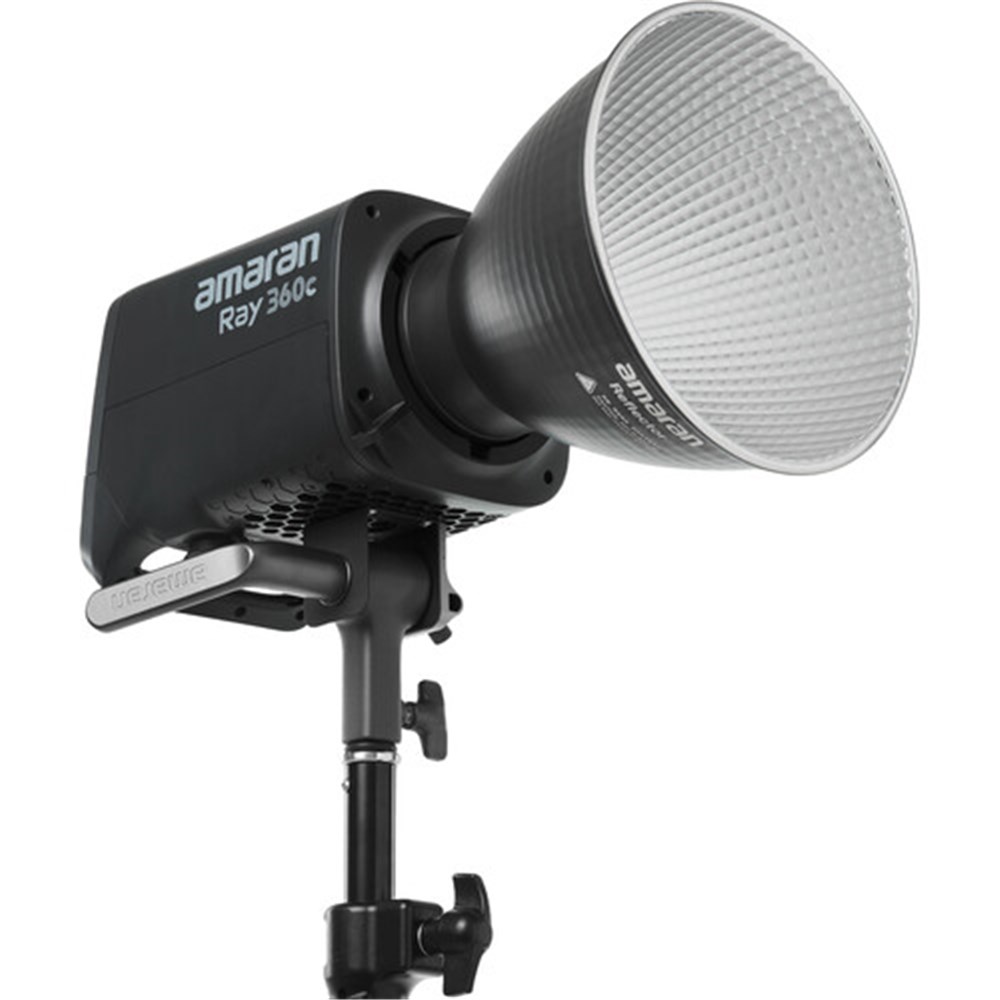

Amaran Ray 360C RGB LED Bowens Mount Light Kit


Key Features
  • For Film, Broadcast & Video Production
  • Output: 17,130 Lux at 3.3' (Bare)
  • 1800-20,000K CCT+; RGB Color Control
  • AC Power & Optional USB-C DMX Control
  • Onboard & App Control; FlowTurn & NFC
  • CRI & TLCI 95 | SSI 80/87 | TM-30 94/100
  • OmniColor Engine, G/M Shift & Effects
  • Fan Cooled, Bowens Mount & IP54 Design
  • Metal Tilting Bracket; 5/8" Receiver
  • Includes Reflector, AC Power Cable & Bag


A powerful full-color point-source LED for studio creators, amaran brings the Ray 360c RGB LED Monolight as an efficient 360W AC-powered fixture—built with high color accuracy at the forefront of its all-in-one IP54 design. With a wide CCT and advanced features, the Ray 360c can be placed in compact studios, podcasts setups, music video sets, and other lighting environments. Find intuitive onboard and app management of settings via FlowTurn knob and NFC configuration, or opt for DMX control via USB-C by adding an optional adapter. Powered by the OmniColor light engine, the Ray 360c is way brighter than the amaran 300c. Choose from an extended color temperature range of 1800-20,000K in CCT+ with high color accuracy, and access 360° full color control with HSI and RGB modes. amaran includes a reflector, a single power cable, and a case to give you a storage solution and facilitate faster setup between shoots.

Specifications

CCT (Standard)
2,300K - 10,000K
CRI
95+
SSI (P3200)
87
TM-30 RG (Average)
100
Max Power Output
360W
Color Chipset
OmniColor
Weather Resistance Rating
IP54
Beam Angle (Reflector)
45º
Max Noise Level
28dBA (30ºC / 86ºF)
Storage Temperature
-20ºC - 80ºC / -4ºF - 176ºF
Firmware Upgradeable
amaran App, USB-C
Screen Type
TFT
Max Light Output
17,130 lux @ 1m (No Accessory)
CCT + (Expanded)
1,800K – 20,000K
TLCI
95+
SSI (D56)
80
TM-30 RF (Average)
94
Max Power Consumption
410W
Lumens
23,174 lumens
Beam Angle (No Reflector)
70º
Operating Voltage
AC 100V - 240V / 50 - 60Hz
Operating Temperature
-10°C - 40°C / 14°F - 104°F
Control Methods
On-board, amaran App, DMX via USB-C
Wireless Operating Range
≤80m / ≤262.5ft (Bluetooth)
Cooling Method
Active Cooling
Dimensions
Fixture w/o Mounting Bracket
25.5 x 14.8 x 16.5cm / 10.04 x 5.83 x 6.50in

AC Power Cable
5m / 16.40ft

Fixture w/ Mounting Bracket
25.8 x 19.4 x 25.8cm / 10.16 x 7.64 x 10.16in

Carrying Case
55.0 x 39.0 x 56.0cm / 21.65 x 15.35 x 22.05in

Weight
Fixture
3.3kg / 7.28lbs

Carrying Bag
730g / 1.61lbs

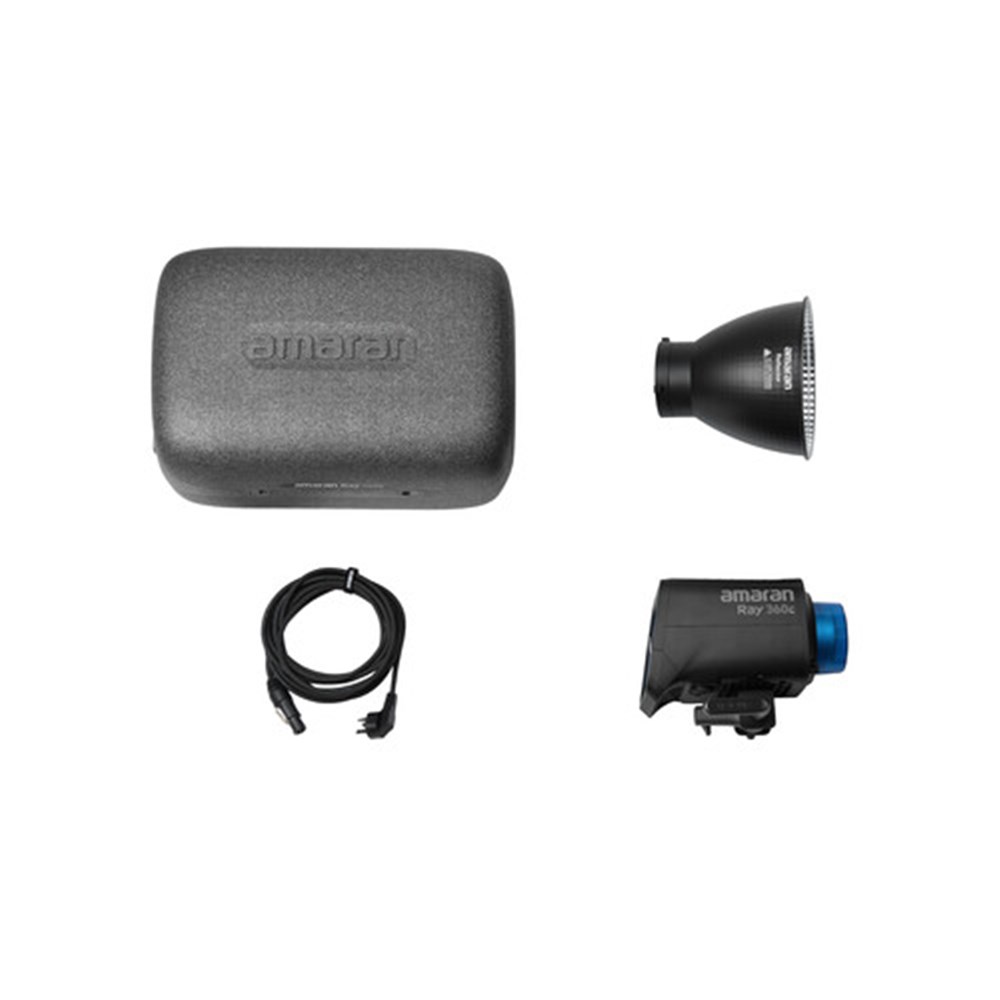

  • 1x amaran Ray 360c

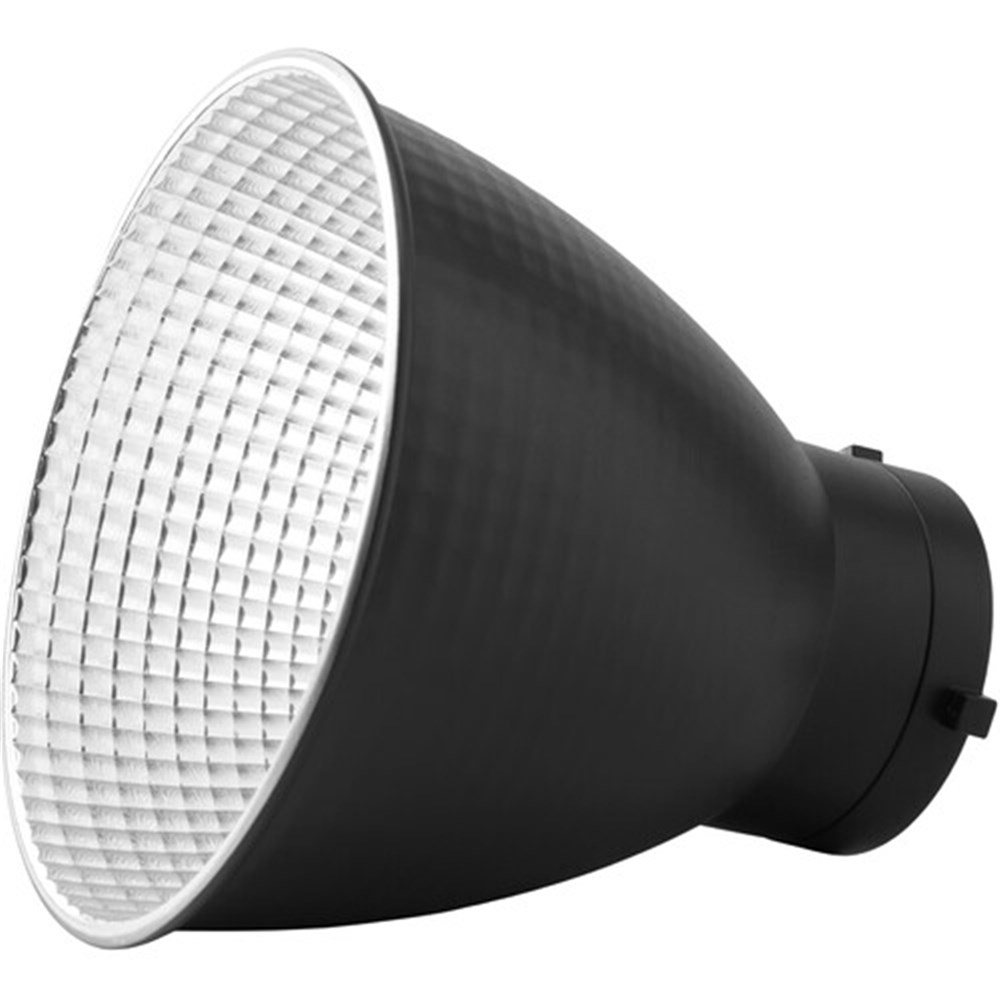

  • 1x amaran Reflector
  • 1x amaran AC Power Cable (5m)

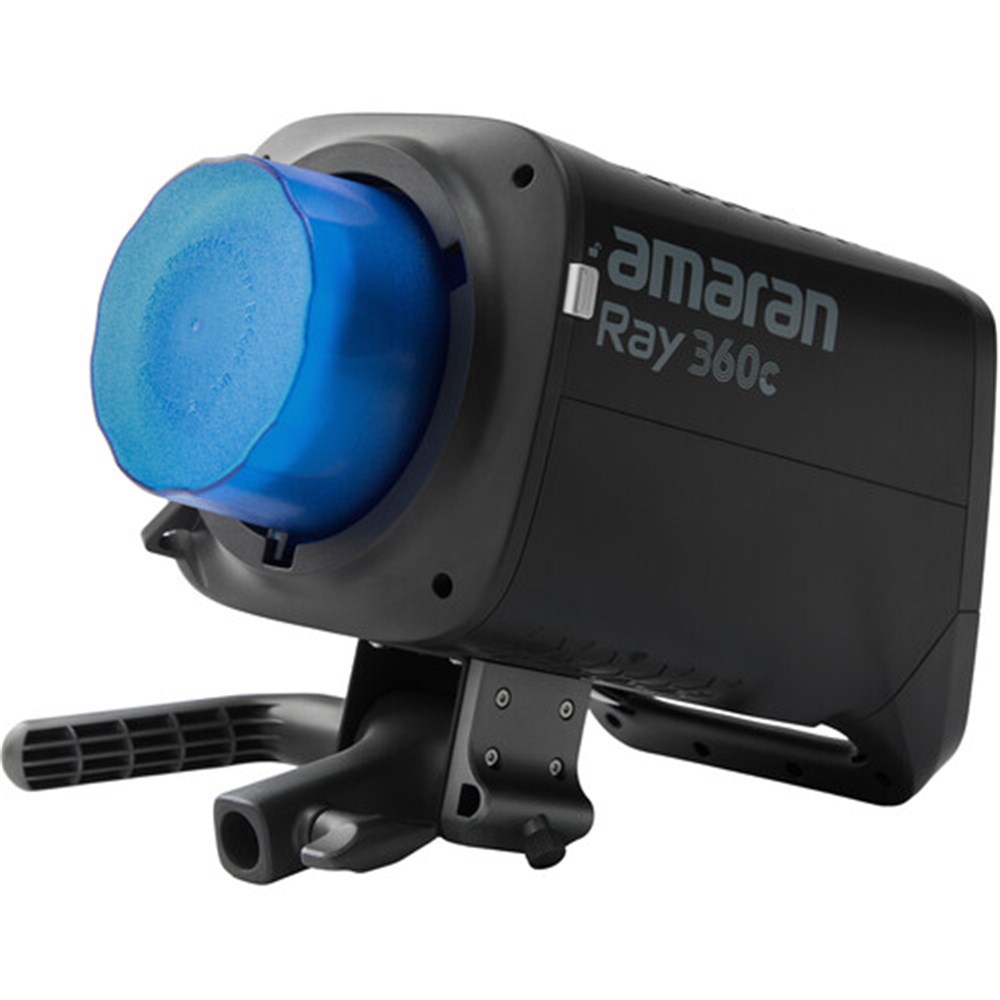

  • 1x amaran Blue Bowens Mount Protection Cover
  • 1x amaran Ray 360c EPP Carrying Case
