Atomos Ninja HDR Monitor Recorder

118657

inc GST
Increase value Decrease value
Found a better price? We'll match it!* Price Match Now
  • Product Description
  • Specifications
  • What's in the Box?
  • Warranty

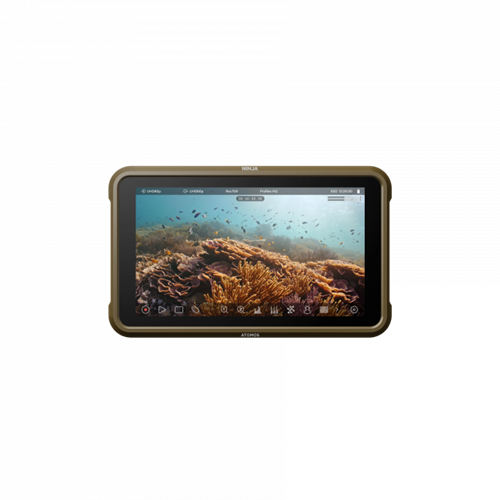

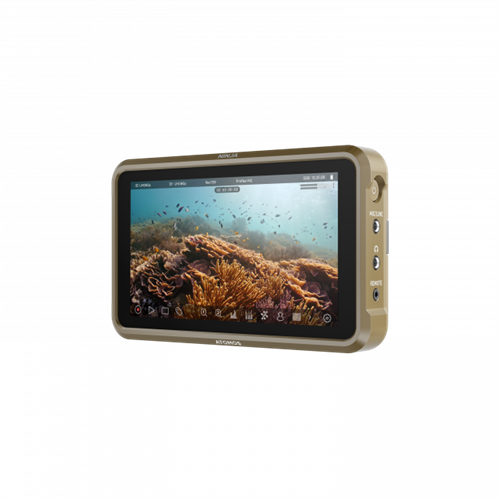

Atomos Ninja

Key Features:
  • 1920 x 1080 Touchscreen Display
  • 10-Bit Exterior Viewable Monitor
  • 4K HDMI 2.0 Input/Output
  • 6K30 ProRes RAW with Select Cameras
  • AtomOS 11 Operating System
  • 1000 cd/m² Brightness
  • Supports Multiple Log Formats
  • ProRes and DNxHR/HD Recording
  • Record to Master Caddy II/III Hard Drive
  • L-Series Battery Slot, USB-C Port

The Atomos Ninja stands as a pinnacle of innovation in the realm of external monitor recorders. Designed with meticulous attention to detail, it addresses the evolving needs of modern content creators. This dynamic tool combines the functionalities of a high-resolution monitor and a versatile recorder, resulting in a seamless workflow that significantly enhances the video production process.

One of the standout features of the Atomos Ninja is its ability to capture and record in pristine ProRes and ProRes RAW formats. This capability ensures that every nuance of the captured footage is preserved with exceptional clarity and color accuracy. This is particularly important for professionals who demand the highest quality in their work, whether they are shooting in the studio or in challenging outdoor environments.

The Atomos Ninja's user-friendly interface and intuitive touchscreen controls offer a streamlined experience, enabling users to navigate through settings, preview shots, and manage recordings with ease. Its real-time monitoring capabilities provide a true-to-life representation of the captured content, allowing filmmakers and videographers to make informed decisions about framing, exposure, and composition while on set.

Furthermore, the Atomos Ninja fosters a more efficient post-production workflow. Its ability to record in industry-standard formats ensures seamless integration with popular video editing software, saving valuable time during the editing process. The inclusion of advanced features like waveform monitors, focus peaking, and 3D LUT support empowers users to fine-tune their footage with precision, resulting in a final product that meets their creative vision.

In essence, the Atomos Ninja is not just a device; it's a tool that empowers content creators to transcend the limitations of traditional recording methods. With its unparalleled image quality, user-friendly interface, and comprehensive feature set, the Atomos Ninja redefines the possibilities of video production, enabling professionals to capture, monitor, and deliver visuals that captivate audiences and elevate storytelling to unprecedented heights.

Panel Type IPS-Type LCD
Display Size 5.2" / 13.2 cm
Resolution 1920 x 1080
Aspect Ratio 16:09
Touchscreen Yes
Maximum Brightness 1000 nits / cd/m2
Bit Depth / Color Support 8-Bit+FRC (1.07 Billion Colors)
HDR Compatibility Hybrid Log Gamma
Pixels Per Inch (ppi) 427 ppi
Real-Time LUT Monitoring HDR
Image Controls Anamorphic De-Squeeze, Blue Only, False Color, Focus Peaking, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra

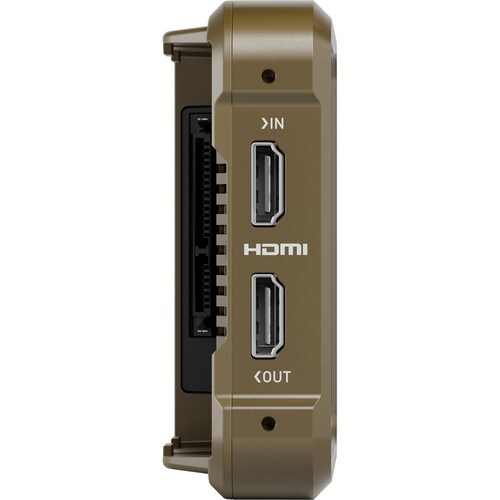

Video I/O 1 x HDMI 2.0 Input
1 x HDMI 2.0 Output
HDCP Support No
Embedded Audio HDMI

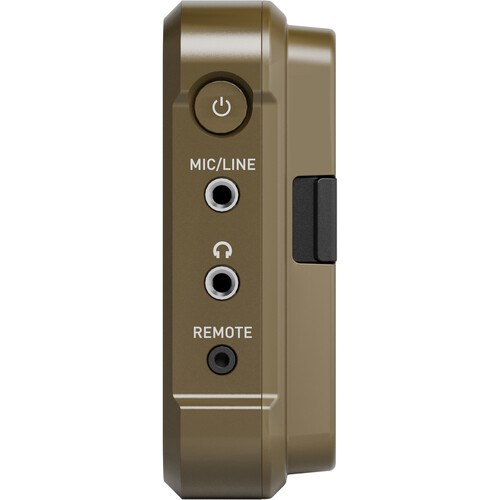

Audio I/O 1 x 1/8" / 3.5 mm Input
1 x 1/8" / 3.5 mm Headphone Output
Built-In Speaker None
Power I/O 1 x Barrel Input
Other I/O 1 x USB-C
Media/Memory Card Slot None
File System Support exFAT
Wi-Fi None
Bluetooth None
Mobile App Compatible Yes: iOS Only
App Name: AtomRemote
*As of August, 2023: Check with manufacturer for the most up-to-date compatibility
Video Format HDMI (8/10/16-Bit 4:2:2)
6K Raw: 30
DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF
1080i: 120/100/60/59.94/50/30/29.97/25/24/23.98
720p: 60/59.94/50/30/29.97/25/24/23.98
Gamma Curve ARRI Log C, Canon Log, Canon Log 2, Canon Log 3, FUJIFILM F-Log, HDR-HLG, HDR-PQ, JVC J-Log, Nikon N-Log, Panasonic V-Log, Rec709, Sony S-Log, Sony S-Log 2, Sony S-Log 3
Timecode Support Yes
Pulldown Conversion 2:2, 3:2
Camera Trigger HDMI
Pre-Roll Record Full HD: 8 Seconds
4K: 2 Seconds
Encoding Formats x
DNxHR
DNxHD
ProRes
Maximum Audio Tracks 8
Reference Input None
Phantom Power None
DC Input Power 6.2 to 16.8 VDC
Built-In Battery None

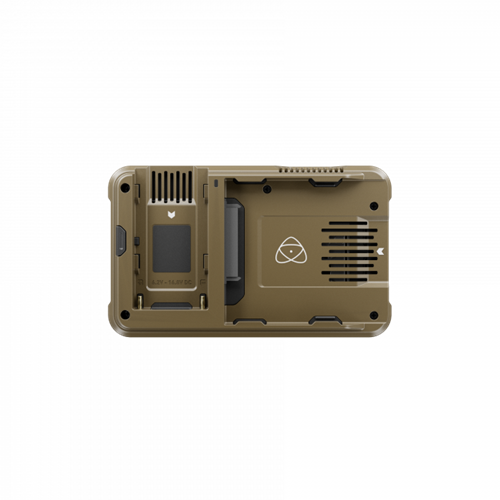

Battery Type 1 x L-Series
Power Consumption 30 W

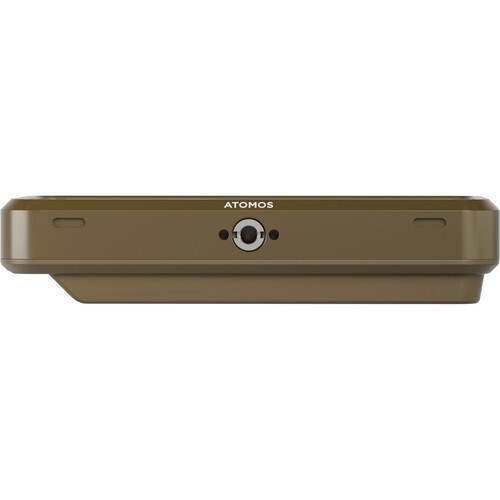

Mounting 1 x ARRI Anti-Twist 1/4"-20
2 x 3/8"-16 Female
Operating Temperature 104°F / 40°C
Material of Construction Aluminum, Plastic
Dimensions 151 x 91.5 x 31 mm
Weight 360 g
  • Atomos Ninja 5.2" 4K HDMI Recording Monitor
  • Battery Eliminator
  • USB-C PD to 2.1mm DC Power Cable

1 Year Warranty
