Atomos Shinobi 7

116307

inc GST
Increase value Decrease value
Found a better price? We'll match it!* Price Match Now
  • Product Description
  • Specifications
  • What's in the Box?

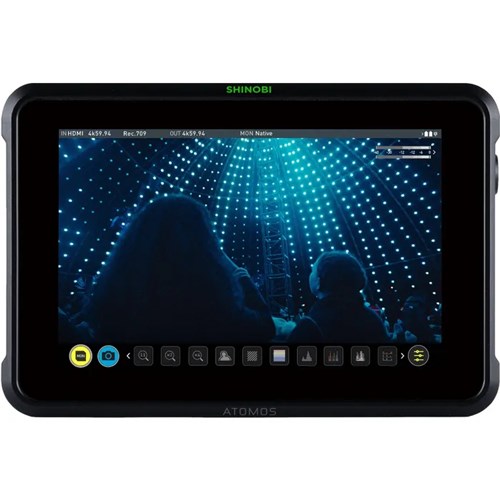

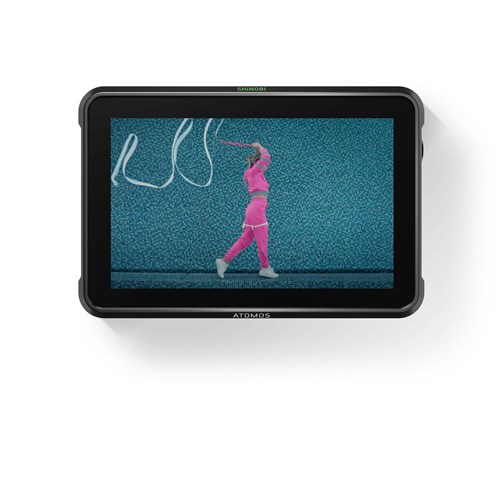

Atomos Shinobi 7

Key Features
  • 7" 1920 x 1200 Touchscreen Display
  • 4K60 HDMI 2.0 In/Out, 2K60 3G-SDI In/Out
  • 2200 cd/m² Brightness
  • HDMI/SDI Cross Conversion
  • 2.5mm Camera Control Port for Z CAM E2
  • Dual Sony L-Series Battery Slots
  • AtomOS; AtomHDR & 3D LUT Support
  • 10-Stop Dynamic Range
  • Supports a Variety of Log Formats

The Atomos Shinobi 7 combines a large 7” HDR screen with a calibrated peak brightness of 2200nits and the lightweight monitor-only functions of the original Shinobi. The Shinobi 7 can be used in the brightest of environments to monitor signals up to 4Kp60 via HDMI or SDI. An ideal directors’ monitor, focus pullers’ monitor, program or preview display for video switchers, and perfect for vloggers presenting to camera.

The touchscreen Shinobi 7 runs the latest AtomOS firmware that features a variety of onscreen analysis tools such as multi-scope views, exposure, framing, focus assist, waveform, RGB parade, and histogram tools

Display

Panel Type IPS-Type LCD
Display Size 7.0" / 17.8 cm
Resolution 1920 x 1200
Aspect Ratio 16:10
Touchscreen Yes
Maximum Brightness 2200 cd/m2
Bit Depth / Color Support 10-Bit (1.07 Billion Colors)
HDR Compatibility Advanced HDR
Pixels Per Inch (ppi) 323 ppi
Real-Time LUT Monitoring SDR, HDR
Image Controls Anamorphic De-Squeeze, Blue Only, False Color, Focus Peaking, Histogram, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra

I/O

Video 1 x HDMI Type A (HDMI 2.0) Input
1 x BNC (3G-SDI) Input
1 x HDMI Type A (HDMI 2.0) Loop Output
1 x BNC (3G-SDI) Loop Output
Embedded Audio HDMI: 2-Channel
SDI: 2-Channel
Audio 1 x 1/8" / 3.5 mm Headphone Output
Built-In Speaker None
Power 1 x Coax (16.8 VDC) Input
Other I/O 1 x LANC (2.5 mm) Output
1 x USB 2.0 (USB Type-A) Input
1 x RJ45 Input/Output
Media/Memory Card Slot Single Slot: SD/SDHC/SDXC

Wireless

Wi-Fi None

Format Support

Video Format HDMI (8/10-Bit 4:2:2)
DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/29.97/25/24/23.98
720p: 60/59.94/50
SDI (8/10-Bit 4:2:2)
DCI 2K: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/25/24/23.98
720p: 60/59.94/50
Gamma Curve ARRI Log C, Canon Log, Canon Log 2, Canon Log 3, HDR-HLG, HDR-PQ, JVC J-Log, Panasonic V-Log, REDlogFilm, Rec2020, Rec709, Sony S-Log 2, Sony S-Log 3

Power

DC Input Power 6.2 to 16.8 VDC
Battery Type 2 x L-Series
Power Consumption 4 W (Typical)
7 W (Maximum)

Mounting

Mounting 2 x 1/4"-20 Female

Environmental

Operating Temperature 32 to 104°F / 0 to 40°C (Recommended)
  • Atomos Shinobi 7
  • Universal Power Adapter
