Camera

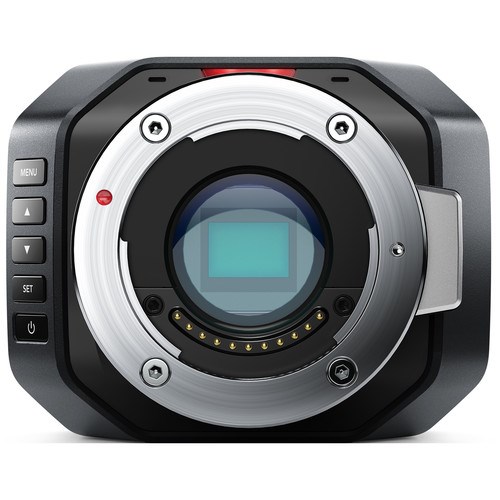

Sensor Size 13.056 x 7.344 mm

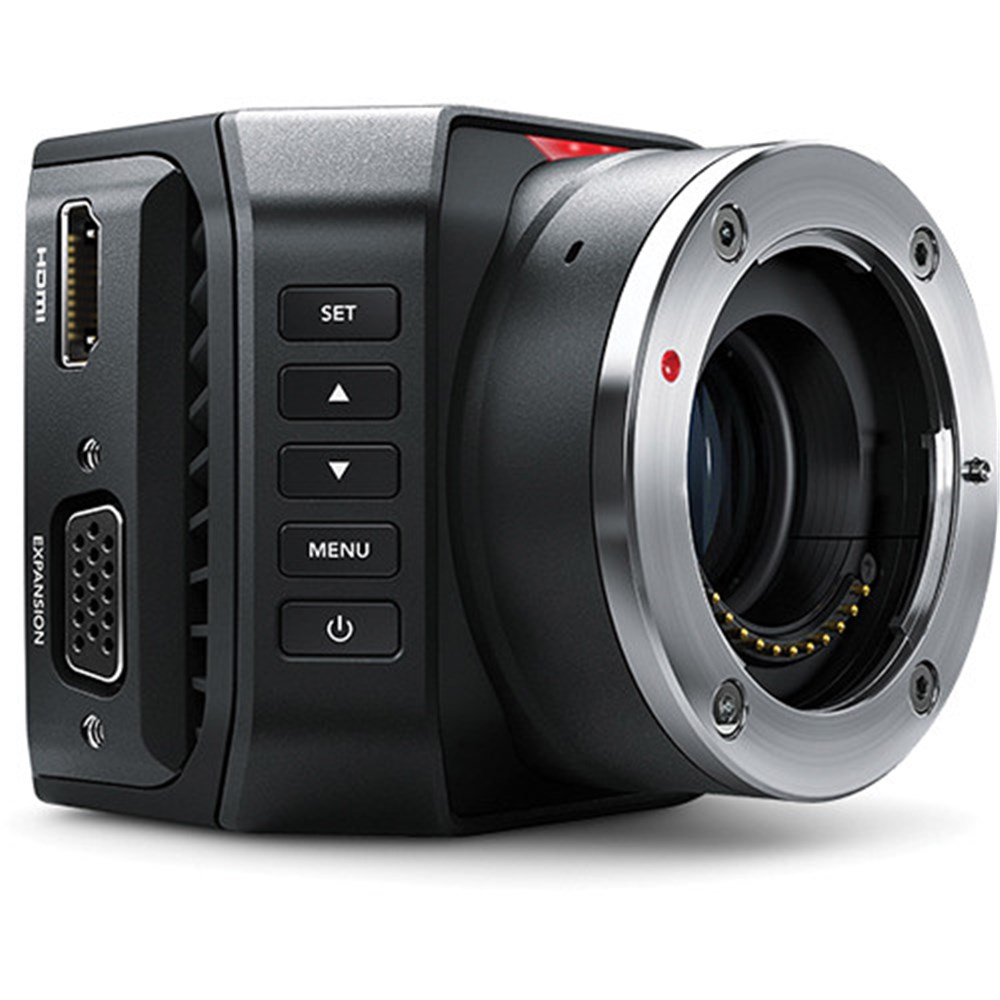

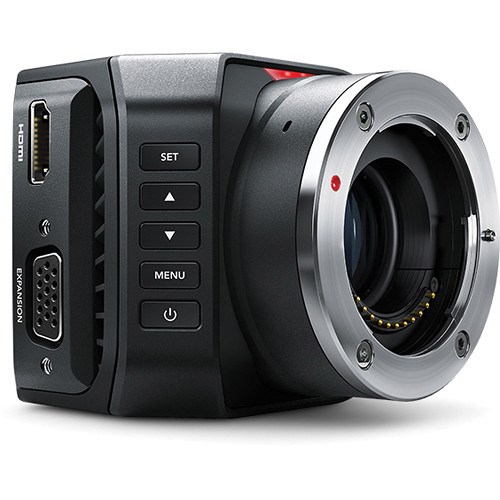

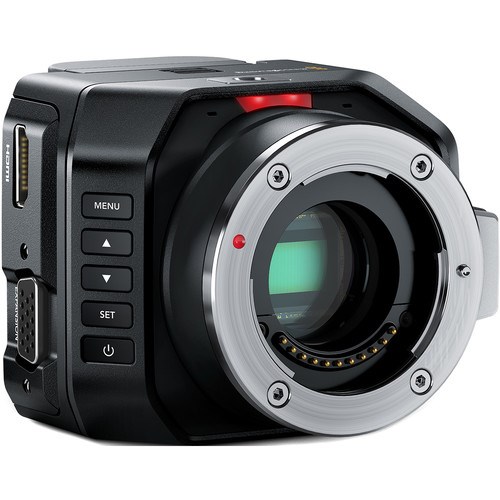

Lens Mount Active MFT
Resolutions & Frame Rates 3840 x 2160p 23.98/24/25/29.97/30
1920 x 1080p 23.98/24/25/29.97/30/50/59.94/60
1920 x 1080i 50/59.94
Connections

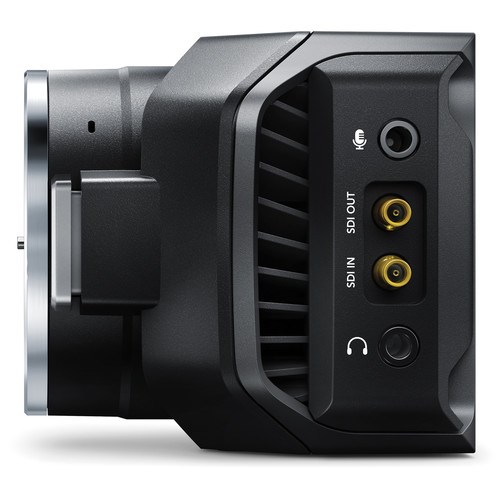

SDI Video Output 1 x 6G-SDI (DIN 1.0/2.3 connector), 10-bit 4:2:2
SDI Video Input 1 x 6G-SDI (DIN 1.0/2.3 connector), 10-bit 4:2:2
SDI Audio Output 2-channel embedded audio support in SDI stream

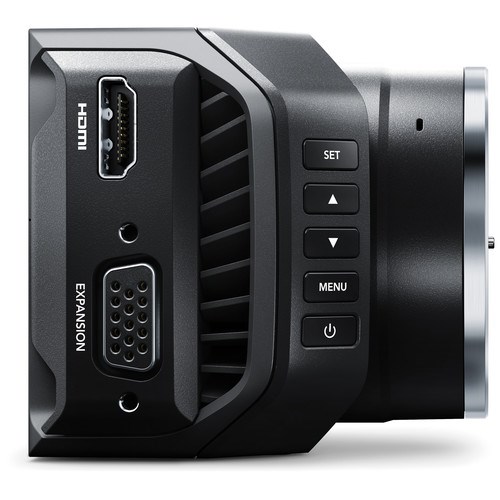

HDMI Video Output 1 x HDMT (Type A), output is always 1080p
HDMI Audio Output 2 channels (48 kHz, 24-bit)
Analog Audio Input 1 x 3.5 mm stereo mini jack (mic or line level)
Analog Audio Output 1 x 3.5mm stereo connector (for stereo headphones, compatible with iPhone headsets for talkback)
Expansion Port 1 x DB-HD15 serial connector supports:
LANC input
1 x S.Bus channel input
PTZ output
Genlock input
B4 lens control output
Remote Control Over SDI via ATEM Switcher CCU protocols or via expansion port using LANC or S.Bus.
Computer Interface USB 2.0 Mini-B port (for software updates and configuration)
General
Built-In Microphone Integrated stereo microphone

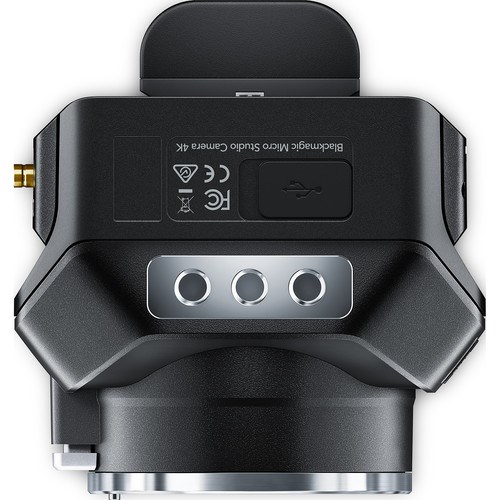

Mounting 1 x 1/4"-20 thread (top)
3 x 1/4"-20 thread (bottom)
Power 12 to 20 VDC
Battery Type Canon LP-E6
Battery Life Approx. 1 hour 10 minutes
Operating Temperature 32 to 104° F (0 to 40° C)
Storage Temperature -4 to 113° F (-20 to 45° C)
Relative Humidity 0 to 90% non-condensing
Dimensions 3.25 x 2.74 x 2.57 (8.26 x 6.96 x 6.53 cm)
Weight 10.7 oz (303.34 g)
