DJI High-Bright Remote Monitor

Key Features

7", 1920 x 1200 Resolution Monitor
1500 cd/m² Brightness
Built-In Wireless Receiver Monitor

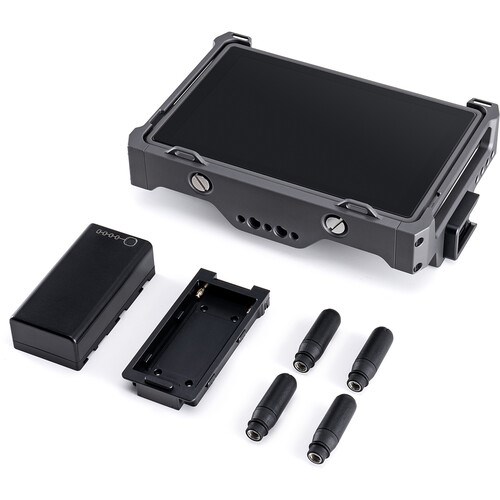

Protective Cage Included
Powers from Gimbal or External Battery

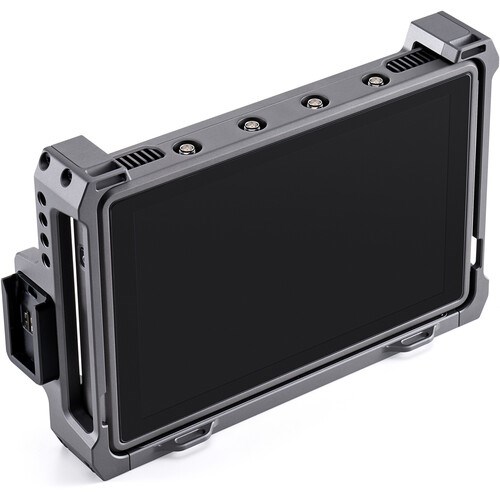

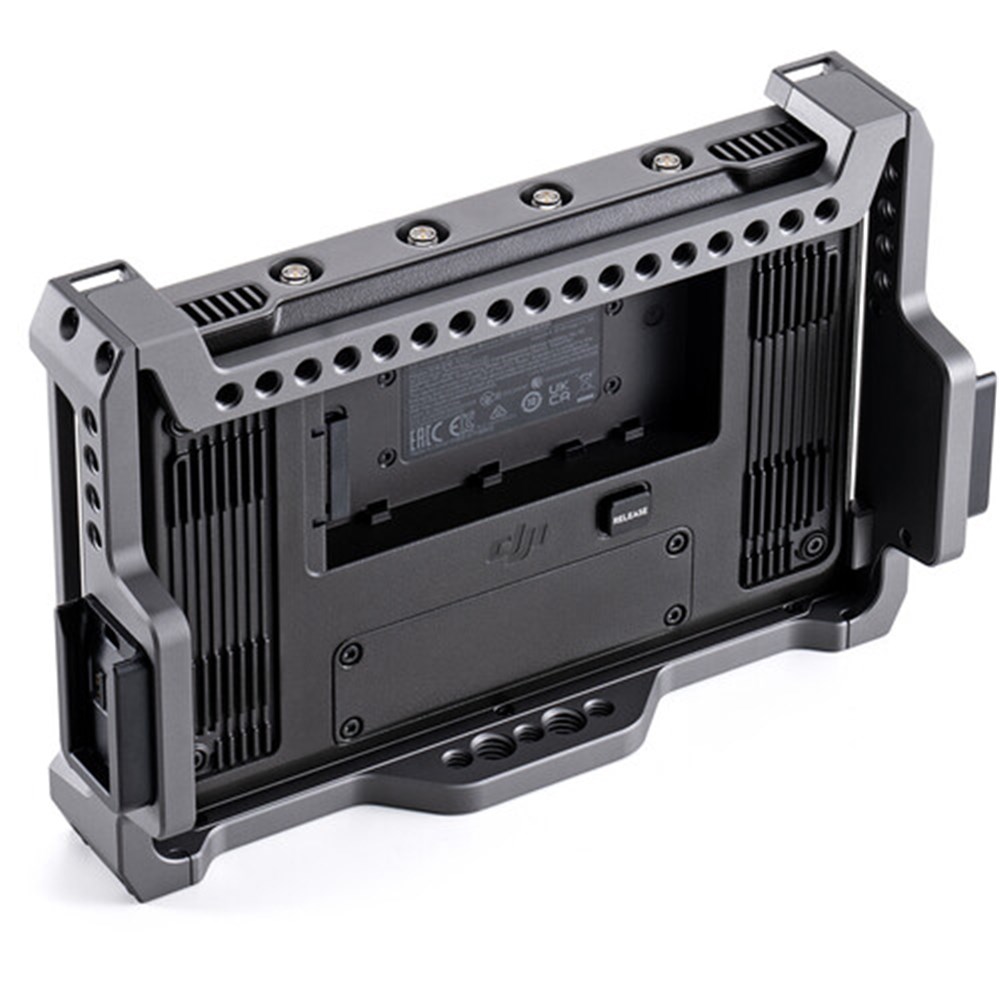

Use the DJI High-Bright Remote Monitor to view footage from your Ronin 4D setup to provide crew members a remote view of what your gimbal is capturing. Nestled inside the included cage and receiving a wireless feed via its integrated receiver, the monitor can be used by the director to view the shot, remotely focus, or control gimbal movement.

Compatibility

DJI Ronin 4D

Display

Panel Type	LCD
Display Size	7"
Native Resolution	1920 x 1200
Maximum Brightness	1500 nits / cd/m²
USB I/O	1 x USB-C 3.0 / 3.1/3.2 Gen 1 Integrated Male Input/Output
Video I/O	1x HDMI Input
Audio I/O	1x 1/8" / 3.5 mm Output
Media/Memory Card Slot	Single Slot: microSD/microSDHC

Power

Power Source

Battery

Environmental

Operating Temperature	32 to 104°F / 0 to 40°C
Storage Temperature	-4 to 140°F / -20 to 60°C

Physical

Mounting	Multiplex 1/4"-20
Cable Length	Not Specified by Manufacturer
Dimensions	8.5 x 6.5 x 2.3" / 216 x 166 x 58 mm (Includes Cage)
Weight	Not Specified by Manufacturer

Packaging Info

Package Weight	3.405 lb
Box Dimensions (LxWxH)	9.2 x 6.8 x 4.2"
