| Takeoff Weight |
900 g |
| Dimensions (Folded/Unfolded) |

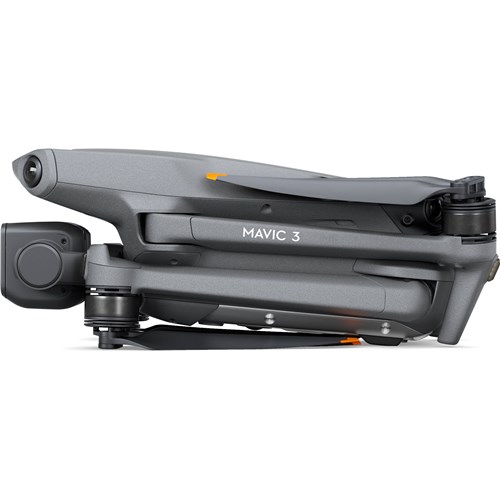

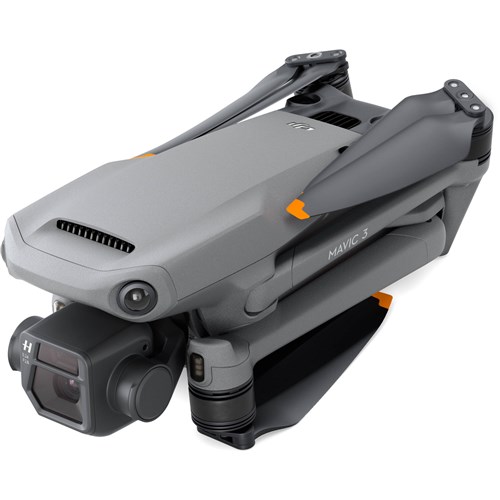

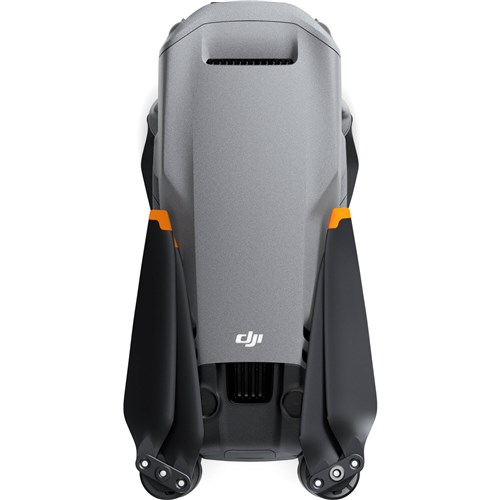

Folded (without propellers) 221×96.3×90.3 mm (Length×Width×Height)
Unfolded (without propellers) 347.5×283×107.7 mm (Length×Width×Height) |
| Wheelbase |
Diagonal: 380.1 mm |
| Max Ascent Speed |
1 m/s (C mode)
6 m/s (N mode)
8 m/s (S mode) |
| Max Descent Speed |
1 m/s (C mode)
6 m/s (N mode)
6 m/s (S mode) |
| Max Flight Speed (at sea level, no wind) |
5 m/s (C mode)
16 m/s (N mode)
21 m/s (S mode) |
| Max Service Ceiling Above Sea Level |
6000 m |
| Max Flight Time (no wind) |
46 minutes |
| Max Hovering Time (no wind) |
40 minutes |
| Max Flight Distance |
30 km |
| Max Wind Speed Resistance |
12 m/s |
| Max Tilt Angle |
25° (C mode)
30° (N mode)
35° (S mode) |
| Max Angular Velocity |
200°/s |
| Operating Temperature |
-10° to 40° C (14° to 104° F) |
| GNSS |
GPS + Galileo + BeiDou |
| Hovering Accuracy Range |
Vertical: ±0.1 m (with Vision Positioning); ±0.5 m (with GNSS Positioning)
Horizontal: ±0.3 m (with Vision Positioning); ±0.5 m (with High Precision Positioning System) |
| Internal Storage |
Mavic 3: 8 GB (available space is approx. 7.2 GB)
Mavic 3 Cine: 1TB (available space is approx. 934.8 GB) |
| Sensor |
4/3 CMOS, Effective pixels: 20 MP |
| Lens |
FOV: 84°
Format Equivalent: 24 mm
Aperture: f/2.8 to f/11
Focus: 1 m to ∞ (with Autofocus) |
| ISO Range |
Video: 100-6400
Still Image: 100-6400 |
| Shutter Speed |
Electronic Shutter: 8-1/8000 s |
| Max Image Size |
Main Unit: 5280×3956 |
| Still Photography Modes |
Single shot: 20MP Photos
Automatic Exposure Bracketing (AEB): 20 MP, 3/5 bracketed frames at 0.7 EV
Timed: 20 MP, 2/3/5/7/10/15/20/30/60s |
| Video Resolution |
Apple ProRes 422 HQ
5.1K: 5120×2700@24/25/30/48/50fps
DCI 4K: 4096×2160@24/25/30/48/50/60/120*fps
4K: 3840×2160@24/25/30/48/50/60/120*fps
H.264/H.265
5K: 5120×700@24/25/30/48/50p
DCI 4K: 4096×2160@24/25/30/48/50/60/120*fps
4K: 3840×2160@24/25/30/48/50/60/120*fps
FHD: 1920×1080p@24/25/30/48/50/60/120*/200*fps
* Frame rates above are recording frame rates. Videos will be played as slow-motion videos. |
| Max Video Bitrate |
H.264/H.265 Bitrate: H.264 Max 200Mbps, H.265 Max 140Mbps |
| Supported File Formats |
exFAT |
| Photo Format |
JPEG/DNG (RAW) |
| Video Formats |
Mavic 3:
MP4/MOV (MPEG-4 AVC/H.264, HEVC/H.265)
Mavic 3 Cine:
MP4/MOV (MPEG-4 AVC/H.264, HEVC/H.265)
MOV (Apple ProRes 422 HQ) |
| Sensor |
1/2" CMOS, |
| Lens |
FOV: 15°
Format Equivalent: 162 mm
Aperture: f/4.4
Focus: 3 meters to ∞ |
| ISO Range |
Video: 100-6400
Still Image: 100-6400 |
| Shutter Speed |
Electronic Shutter: 2-1/8000 s |
| Max Image Size |
4000×3000 |
| Photo Format |
JPEG |
| Video Formats |
MP4/MOV (MPEG-4 AVC/H.264, HEVC/H.265) |
| Still Photography Modes |
Single shot: 12MP Photos |
| Video Resolution |
H264/H.265
4K: 3840×2160@30
FHD: 1920×1080@30 |
| Digital Zoom |
4 times |
| Stabilization |
3-axis mechanical (tilt, roll, pan) |
| Mechanical Range |
Tilt: -135° to 100°
Roll: -45° to 45°
Pan: -27° to 27° |
| Controllable Range |
Tilt: -90° to 35°
Pan: -5° to 5° |
| Max Control Speed (tilt) |
100°/s |
| Angular Vibration Range |
±0.007° |
| Sensing System |
Omnidirectional binocular vision system, supplemented with an infrared sensor at the bottom of the aircraft |
| Forward Vision System: |
Measurement Range: 0.5-20 m
Detection Range: 0.5-200 m
Effective Sensing Speed: Flight Speed ≤ 16m/s
FOV: Horizontal 90°, Vertical 103° |
| Backward |
Measurement Range: 0.5-16 m
Effective Sensing Speed: Flight Speed ≤ 14m/s
FOV: Horizontal 90°, Vertical 103° |
| Lateral Sensing System |
Measurement Range: 0.5-25 m
Effective Sensing Speed: Flight Speed ≤ 16m/s
FOV: Horizontal 90°, Vertical 85° |
| Upward: |
Measurement Range: 0.2-10 m
Effective Sensing Speed: Flight Speed ≤ 6 m/s
FOV: Front and Back 100°, Left and Right 90° |
| Downward Vision System: |
Measurement Range: 0.3-18 m
Effective Sensing Speed: Flight Speed ≤ 6 m/s
FOV: Front and Back 130°, Left and Right 160° |
| Operating Environment |
Forward, Backward, Left, Right, and Upward: Surface with a clear pattern and adequate lighting (lux>15)
Downward: Surface with a clear pattern and adequate lighting (lux >15). Diffuse reflective surface with diffuse reflectivity>20% (e.g. wall, tree, person) |
| Video Transmission System |
O3+ |
| Live View Quality |
Remote Controller: 1080p@30fps/1080p@60fps |
| Operation Frequency |
2.400-2.4835 GHz
5.725-5.850 GHz |
| Max Transmission Distance (unobstructed, free of interference and aligned with controller) |
FCC: 15 km
CE: 8 km
SRRC: 8 km
MIC: 8 km |
| Max Download Bitrate |
SDR:
5.5MB/s (with RC-N1 remote controller)
15MB/s (with DJI RC Pro remote controller)
Wi-Fi 6:
80MB/s |
| Latency (depending on environmental conditions and mobile device) |
130 ms (with RC-N1 remote controller)
120 ms (with DJI RC Pro remote controller) |
| Antennas |
4 antennas, 2T4R |
| Transmitter Power (EIRP) |
2.4 GHz: ≤33 dBm (FCC); ≤20 dBm (CE/SRRC/MIC)
5.8 GHz: ≤33 dBm (FCC), ≤30 dBm(SRRC), ≤14 dBm(CE) |
| Capacity |
5000 mAh |
| Voltage |
15.4 V |
| Charging Voltage Limit |
17.6 V |
| Battery Type |
LiPo 4S |
| Energy |
77 Wh |
| Weight |
335.5 g |
| Charging Temperature |
5° to 40° C (41° to 104° F) |
| Input |
100-240 V AC, 47-63 Hz, 2.0 A |
| USB-C Output |
USB-C: 5.0 V⎓5.0 A/9.0⎓5.0 A/12.0 V⎓5.0 A/15.0 V⎓4.3 A/20.0 V⎓3.25 A/5.0~20.0 V⎓3.25 A |
| USB-A output |
USB-A: 5 V⎓2 A |
| Rated Power |
65 W |
| Input |
USB-C: 5-20 V⎓5.0 A max |
| Output |
Battery: 12-17.6 V⎓5.0 A max |
| Rated Power |
65 W |
| Charging Type |
Charges three batteries in sequence |
| Charging Temperature Range |
5° to 40° C (41° to 104° F) |
| Input |
Car Power Input: 12.7-16 V⎓6.5 A, rated voltage 14 V DC |
| Output |
USB-C: 5.0 V⎓5.0 A/9.0⎓5.0 A/12.0 V⎓5.0 A/15.0 V⎓4.3A/20.0 V⎓3.25 A/5.0~20.0 V⎓3.25 A
USB-A: 5 V⎓2 A |
| Rated Power |
65 W |
| Charging Time |
Approx. 96 minutes |
| Charging Temperature Range |
5° to 40° C (41° to 104° F) |
| Supported SD Cards |
SDXC or UHS-I microSD card with a capacity of up to 2 TB (theoretically) |
| Recommended microSD Cards |
SanDisk Extreme PRO 64GB V30 A2 microSDXC
SanDisk High Endurance 64GB V30 microSDXC
SanDisk Extreme 128GB V30 A2 microSDXC
SanDisk Extreme 256GB V30 A2 microSDXC
SanDisk Extreme 512GB V30 A2 microSDXC
Lexar 667x 64GB V30 A2 microSDXC
Lexar High-Endurance 64GB V30 microSDXC
Lexar High-Endurance 128GB V30 microSDXC
Lexar 667x 256GB V30 A2 microSDXC
Lexar 512GB V30 A2 microSDXC
Samsung EVO 64GB V30 microSDXC
Samsung EVO Plus 128GB V30 microSDXC
Samsung EVO Plus 256GB V30 microSDXC
Samsung EVO Plus 512GB V30 microSDXC
Kingston 128GB V30 microSDXC |
| SSD Specs |
Capacity: 1 TB
Max Read Speed: 700MB/s*
Max Write Speed: 471MB/s*
* Data refers to the read and write speed inside the aircraft. Actual read and write speed of computer and other external devices may affect actual speed. |
| Remote Controller Transmission System |
OcuSync 2.0 |
| Battery Life |
Without charging any mobile device: 6 hr; when charging mobile device: 4 hr |
| Supported USB Port Types |
Lightning, Micro USB, USB-C |
| Max Supported Mobile Device Size |
180×86×10 mm (Length×Width×Height) |
| Operating Temperature |
0° to 40° C (32° to 104° F) |
| Transmitter Power (EIRP) |
2.4 GHz:
≤26 dBm (FCC), ≤20 dBm (CE/SRRC/MIC)
5.8 GHz:
≤26 dBm (FCC/SRRC), ≤14 dBm (CE) |
