DJI Transmission Combo
Key Features

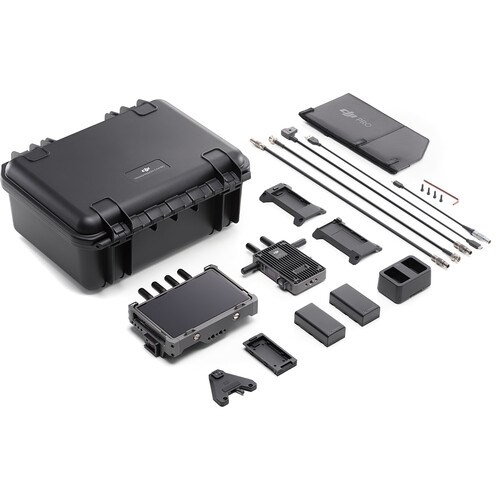

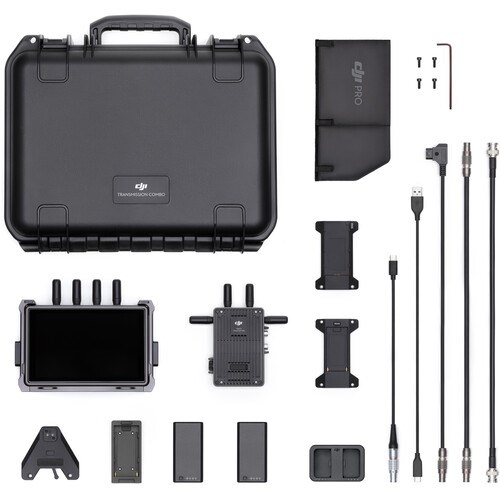

- Transmitter & High-Bright RX Monitor Kit
- Transmit 1080p60 Video over 3 Miles LoS
- HDMI/3G-SDI Input / Output
- 7" 1920 x 1200 Touchscreen Display
- Gyroscopic Sensor to Control Gimbals
- O3 Pro Video Transmission Technology
- AES 256-Bit Encryption

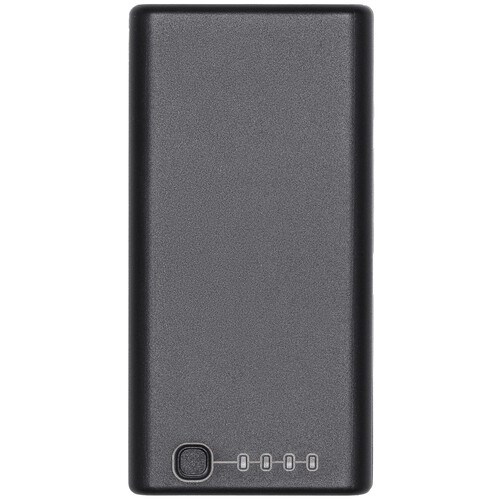

- Power via L-Series Batteries
- Works with Ronin 2 / RS 3 Pro Gimbals
- Custom LUTs, Built-In Image Tools

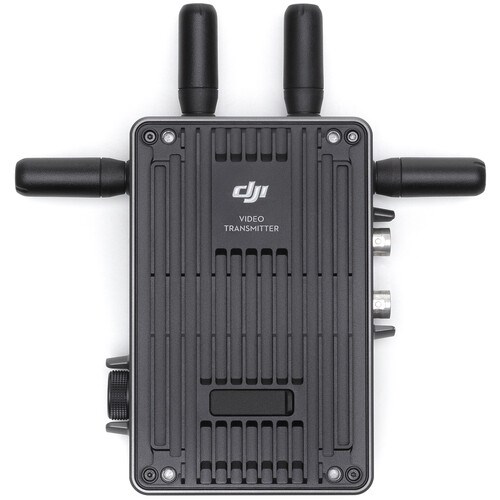

Transmit high-definition video over 3 miles (line-of-sight) from your DJI drone or gimbal gear for monitoring with this Transmission Combo from DJI. The combo includes a transmitter and a monitor/receiver that transmits up to 1080p60 video using the highly efficient O3 Pro transmission technology via Wi-Fi 2.4 and 5 GHz frequencies. Optional high-gain antennas can be purchased to boost the signal quality and distance. The high-bright monitor features 1500 cd/m² brightness, 1920 x 1200 resolution, and a touchscreen display.
The system supports automatic frequency hopping to find the strongest signal, and it operates using AES 256 encryption to protect your video from prying eyes. It allows you to transmit simultaneously to two receivers in control mode, and in broadcast mode, it can transmit to unlimited receivers with a slightly lower performance. Control mode allows you to control your gimbal or camera using the touchscreen or via physical gestures using the built-in gyroscopic sensor.

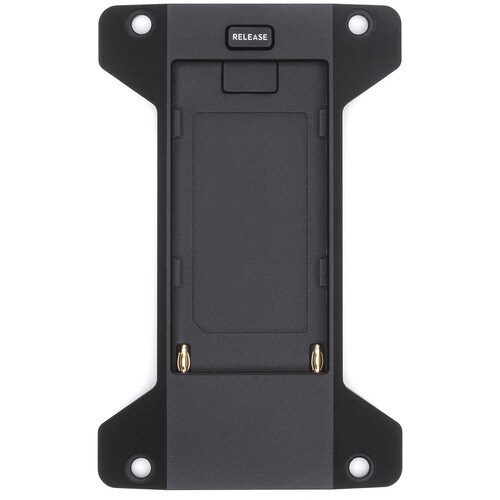

The units can be powered via an optional L-series battery or its DC power input, or they can be powered directly from a DJI gimbal such as the Ronin 2 or RS 3. The monitor provides multiple imaging tools such as frame guide, waveform, and false color, and it allows you to import custom LUTs.
