| SIZE |
| Max Print Width |
13 inch (330.2mm) |
| Max Sheet Size |
A3+ |
| PRINT TECHNOLOGY |
| Print Head |
Epson Micro Piezo™ |
| Print Modes |
Uni & Bi-directional |
| Features |
Variable Sized Droplet Technology (VSDT)
Advanced Epson LUT
Enhanced Colour Density
Enhanced Print Durability
Black enhance overcoat |
| Nozzle Configuration |
180 per colour |
| Active Channels |
10 (Dedicated Pk / Mk ink lines) |
| Max Resolution |
5760 x 1440 optimised dpi |
| Min Droplet Size |
1.5pl |
| INK SYSTEM |
| Family |
UltraChrome® Pro10 |
| Type |
Aqueous all-pigment |
| Colours |
 10 |
| Cartridge Size |
25ml |
| PERFORMANCE |
| A4 |
2 minutes |
| A3+ |
3.28 minutes |
| 4" x 6" borderless |
48 seconds |
|
| MEDIA SUPPORT |
| Format |
Cut Sheet & Roll media
Printable CD's & DVD's |
| Size |
3.5" x 5" (89 x 127mm) to 13" x 19" (329 x 482.6mm) sheets
13" (330.2mm) wide with 2" core rolls
(max roll diameter 82mm)
12" standard shaped printable optical media |
| Thickness |
ASF:
PlainPaper：0.08 - 0.11mm
Genuine Media : 0.08 - 0.50 mm
Front Thick Paper Path : 0.5 - 0.7 mm
Front Straight Path : 0.7 - 1.5 mm
Roll Paper Path : 0.08 - 0.70 mm |
| Min Margins (Normal Printing) |
3mm all directions on standard sheets
3mm left & right, 20mm top & bottom on thick sheets
50mm top, 14mm bottom on rolls
18mm interior diameter margin (21mm recommended) with max 120 diameter total print area on optical media |
| Borderless Printing (Supported on nominated paper widths for roll media and standard thickness sheets) |
A4, A3, A3+ (329 x 483mm), Letter (8.5"x11"), 3.5"x5" (90x130mm), 4"x6" (100x150mm), 16:9 (102x181mm), 5"x7" (130x180mm), 5"x8" (130x200mm), 8"x10" (200x250mm), 10"x12" (254x305mm), 11"x14" (279x356mm) 11"x17" (280x430mm), 12"x12" (300x300mm) sheets
13" (329mm) wide rolls |
| Max Print Length |
18m |
| Loading |
Top rear sheet feeder for plain and photo paper
Front manual for fine art & poster board
Rear roll paper unit (built in) |
| Roll Handling |
Integrated support, operation requires manual cutting |
| Output |
Front with extendable tray |
| Double Sided Printing |
Supported via manual loading however please refer to the user guide, and contact Epson or your authorised dealer before selecting any media for this purpose in order to check suitability. |
| OPERATION |
| Control Panel |
4.3” Touchscreen Colour LCD |
| Interface |
High Speed USB 3.0
Ethernet 10Base-T / 100Base-TX
Wi-Fi 5 (IEEE802.11 b/g/n/ac) |
| Included Software (Windows) |
Printer Driver, Print CD, EpsonNet Config, EpsonNet Setup, EpsonNet Print, Software Updater and Firmware updater on CD |
| Web Downloads (Windows) |
Printer Driver, Epson Print Layout, ColorBase2, Epson Media Installer, Photo+, E-Web Print, Firmware Updater & software uninstaller |
| Web Downloads (Mac) |
Printer Driver, Epson Print Layout, ColorBase2, Epson Media Installer, Photo+, EpsonNet Config, EpsonNet Setup, Software Updater, Firmware updater & software uninstaller |
| OS Compatibility |
Mac OS X 10.6.8 or later
Windows 10, 8/8.1, 7, |
| 3rd Party S/W Compatibility |
Compatible with a wide range of design, production, workflow management, and RIP software |
| Memory |
256MB |
| Language |
ESC/P Raster |
| ENVIRONMENT |
| Operational Temp |
10° to 35° C (15-25° C recommended) |
| Operational Humidity |
20 to 80% with no condensation (40-60% recommended) |
| Power Supply |
220 – 240V, 50 – 60Hz AC, 0.3A |
| Power Consumption |
22W Operating / 1.1W Sleep / 0.18W Off |
| Operating Noise |
39dB |

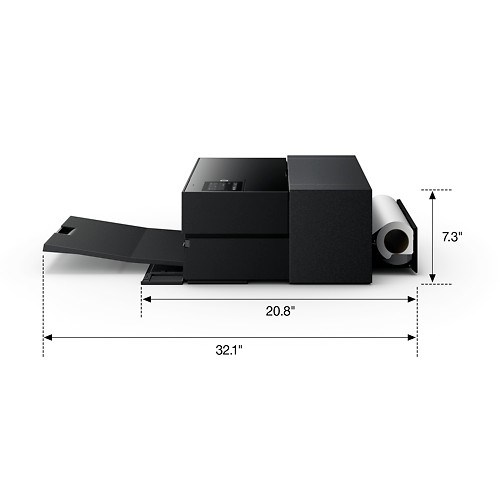

Operational Space
(W x D x H) |
515mm x 769mm x 420mm recommended
(Additional space will be required at rear when using the straight through paper path or roll paper unit) |
| PHYSICAL |
| Dimensions (W x D x H) |
515 x 368 x 185mm (sheet feeder & output tray closed) |
| Weight |
12.7kg (excludes consumables) |
