Model name |

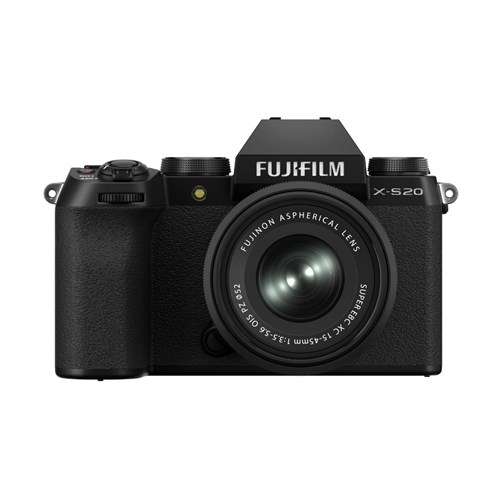

FUJIFILM X-S20 |
Lens Mount |
FUJIFILM X mount |
Image sensor |
23.5mm x 15.6mm (APS-C) X-Trans CMOS 4 with primary color filter |
Number of effective pixels |
26.1 millions pixels |
Sensor Cleaning System |
Ultra Sonic Vibration |
Image Processing Engine |
X-Processor 5 |
Storage media |
SD Card (-2GB) |
SDHC Card (-32GB) |
SDXC Card (-2TB) |
UHS-I |
UHS-II |
Video Speed Class V90 |
|
*Please see the Fujifilm website to check memory card compatibility. |
DCF |
Compliant with Design rule for Camera File system (DCF2.0) |
JPEG |
Exif Ver.2.32 |
HEIF |
4:2:2 10bit |
RAW |
14bit RAW (RAF original format) |
TIFF |
8bit / 16bit RGB (In-camera Raw Conversion Only) |
[L] |
3:2 6240 x 4160 |
16:9 6240 x 3512 |
1:1 4160 x 4160 |
[M] |
3:2 4416 x 2944 |
16:9 4416 x 2488 |
1:1 2944 x 2944 |
[S] |
3:2 3120 x 2080 |
16:9 3120 x 1760 |
1:1 2080 x 2080 |
[L] |
Vertical 9600 x 2160 |
Horizontal 9600 x 1440 |
[M] |
Vertical 6400 x 2160 |
Horizontal 6400 x 1440 |
Still Image |
Standard Output |
AUTO1 |
AUTO2 |
AUTO3 |
ISO160~12800 (1/3 step) |
|
Extended Output |
ISO80 |
ISO100 |
ISO125 |
ISO25600 |
ISO51200 |
Movie |
Standard Output |
AUTO |
ISO125~12800 (1/3 step) |
|
Extended Output |
ISO25600 |
Exposure control |
TTL 256-zone metering |
Multi |
Spot |
Average |
Center Weighted |
Exposure mode |
P (Program AE) |
A (Aperture Priority AE) |
S (Shutter Speed Priority AE) |
M (Manual Exposure) |
Exposure compensation |
Still -5.0EV~+5.0EV 1/3EV step |
Movie -2.0EV~+2.0EV 1/3EV step |
Mechanism |
Image sensor shift mechanism with 5-axis compensation |
Compensation Effect |
7.0 stops |
*based on CIPA standard |
*Pitch/yaw shake only |
*With XF35mmF1.4 R lens mounted |
Digital Image Stabilization |
Yes (movie mode only) |
IS MODE BOOST |
Yes (movie mode only) |
Shutter type |
Focal Plane Shutter |
Shutter speed |
Mechanical shutter: |
P mode 30sec. to 1/4000sec. |
A mode 30sec. to 1/4000sec. |
S/M mode 15min. to 1/4000sec. |
Bulb up to 60min. |
|
Electronic shutter: |
P mode 30sec. to 1/32000sec. |
A mode 30sec. to 1/32000sec. |
S/M mode 15min. to 1/32000sec. |
Bulb 1sec. Fixed |
|
Mechanical + Electronic shutter: |
P mode 30sec. to 1/32000sec. |
A mode 30sec. to 1/32000sec. |
S/M mode 15min. to 1/32000sec. |
Bulb up to 60min. |
*Mechanical shutter works until 1/4000sec. |
|
Movie: |
6.2K 1/4000sec. to 1/24 sec. |
DCI4K/4K 1/4000sec. to 1/24 sec. |
FHD 1/4000sec. to 1/24 sec. |
*Cannot choose slower shutter speed than framerate for some settings. |
|
Synchronized shutter speed for flash: |
Mechanical shutter 1/180sec. or slower |
CH |
Electronic shutter Approx. 30fps (1.25x Crop) |
JPEG 407frames |
Compressed RAW 88frames |
Lossless compressed RAW 62frames |
Uncompressed RAW 28frames |
Compressed RAW + JPEG 41frames |
Lossless compressed RAW + JPEG 36frames |
Uncompressed RAW + JPEG 28frames |
|
Electronic shutter Approx. 20fps (1.25x Crop) |
JPEG 1000+ frames |
Compressed RAW 104frames |
Lossless compressed RAW 72frames |
Uncompressed RAW 30frames |
Compressed RAW + JPEG 66frames |
Lossless compressed RAW + JPEG 53frames |
Uncompressed RAW + JPEG 30frames |
|
Electronic shutter Approx. 10fps (1.25x Crop) |
JPEG 1000+ frames |
Compressed RAW 1000+ frames |
Lossless compressed RAW 215frames |
Uncompressed RAW 40frames |
Compressed RAW + JPEG 163frames |
Lossless compressed RAW + JPEG 102frames |
Uncompressed RAW + JPEG 40frames |
|
Electronic shutter Approx. 20fps |
JPEG 256frames |
Compressed RAW 79frames |
Lossless compressed RAW 44frames |
Uncompressed RAW 28frames |
Compressed RAW+JPEG 68frames |
Lossless compressed RAW+JPEG 33frames |
Uncompressed RAW+JPEG 28frames |
|
Electronic shutter Approx. 10fps |
JPEG 1000+ frames |
Compressed RAW 341frames |
Lossless compressed RAW 82frames |
Uncompressed RAW 32frames |
Compressed RAW+JPEG 89frames |
Lossless compressed RAW+JPEG 51frames |
Uncompressed RAW+JPEG 32frames |
|
Electronic shutter Approx. 8fps |
JPEG 1000+ frames |
Compressed RAW 1000+ frames |
Lossless compressed RAW 90frames |
Uncompressed RAW 35frames |
Compressed RAW+JPEG 94frames |
Lossless compressed RAW+JPEG 57frames |
Uncompressed RAW+JPEG 33frames |
|
Mechanical shutter Approx. 8fps |
JPEG 1000+ frames |
Compressed RAW 1000+ frames |
Lossless compressed RAW 90frames |
Uncompressed RAW 35frames |
Compressed RAW+JPEGCompressed RAW+JPEG 94frames |
Lossless compressed RAW+JPEG 57frames |
Uncompressed RAW+JPEG 33frames |
CL |
Approx. 5.0fps |
JPEG 1000+ frames |
Compressed RAW 1000+ frames |
Lossless compressed RAW 1000+ frames |
Uncompressed RAW 49frames |
|
Approx. 4.0fps |
JPEG 1000+ frames |
Compressed RAW 1000+ frames |
Lossless compressed RAW 1000+ frames |
Uncompressed RAW 67 frames |
|
Approx. 3.0fps |
JPEG 1000+ frames |
Compressed RAW 1000+ frames |
Lossless compressed RAW 1000+ frames |
Uncompressed RAW 1000+ frames |
Pre-shot |
|
|
Electronic shutter, 1.25 x Crop Approx. 30fps |
While half press 30frames |
After full press 75frames |
Total 105frames |
|
Electronic shutter, 1.25 x Crop Approx. 20fps |
While half press 20frames |
After full press 576frames |
Total 596frames |
|
Electronic shutter, 1.25 x Crop Approx. 10fps |
While half press 10frames |
After full press 1000+ frames |
Total 1000+ frames |
|
Electronic shutter Approx. 20fps |
While half press 20frames |
After full press 998frames |
Total 1018frames |
|
Electronic shutter Approx. 10fps |
While half press 10frames |
After full press 1000+ frames |
Total 1000+ frames |
|
Electronic shutter Approx. 8fps |
While half press 8frames |
After full press 1000+ frames |
Total 1000+ frames |
AE Bracketing |
2 frames |
3 frames |
5 frames |
7 frames |
9 frames |
*by 1/3EV step, up to ±3EV steps |
Filmsimulation bracketing |
Any 3 types of film simulation selectable |
Dynamic Range Bracketing |
100% |
200% |
400% |
ISO sensitivity Bracketing |
±1/3EV |
±2/3EV |
±1EV |
White Balance Bracketing |
±1 |
±2 |
±3 |
Focus Bracketing |
AUTO |
MANUAL |
Multiple Exposure |
Yes (Max. 9 frames) |
Additive |
Average |
Bright |
Dark |
HDR Mode |
AUTO |
200% |
400% |
800% |
800% + |
Advanced filter |
Toy camera |
Miniature |
Pop color |
High-key |
Low-key |
Dynamic tone |
Soft focus |
Partial color (Red / Orange / Yellow / Green / Blue / Purple) |
Mode |
Single AF |
Continuous AF |
MF |
Type |
Intelligent Hybrid AF (TTL contrast AF / TTL phase detection AF) |
Low-light Performance |
Contrast -4.0EV |
Phase Detection -7.0EV |
with a XF50mmF1.0 lens attached |
AF frame selection |
Single point AF 13x9 / 25x17 (Changeable size of AF frame) |
Zone AF 3x3 / 5x5 / 7x7 from 117 areas on 13×9 grid |
Wide/Tracking AF Yes (AF-S: Wide / AF-C: Tracking) |
All Yes |
Face/eye detection |
Yes |
Subject detection |
Yes (Animal/Bird/Automobile/Motorcycle&Bike/Airplane/Train) |
Built-in flash |
Manual pop-up flash (Super Intelligent Flash) |
|
Guide Number Effective range(ISO1600) |
approx. 7 (ISO200・m) / approx. 5 (ISO100・m) |
|
Sync. Mode |
1st Curtain |
2nd Curtain |
|
Flash Mode |
TTL (TTL AUTO / STANDARD / SLOW SYNC. ) |
MANUAL |
COMMANDER |
Shoe mount flash |
Sync. Mode |
1st Curtain |
2nd Curtain |
AUTO FP (HSS) |
|
Flash Mode |
TTL (TTL AUTO / STANDARD / SLOW SYNC. ) |
MANUAL |
MULTI *When EF-X500 is set |
OFF |

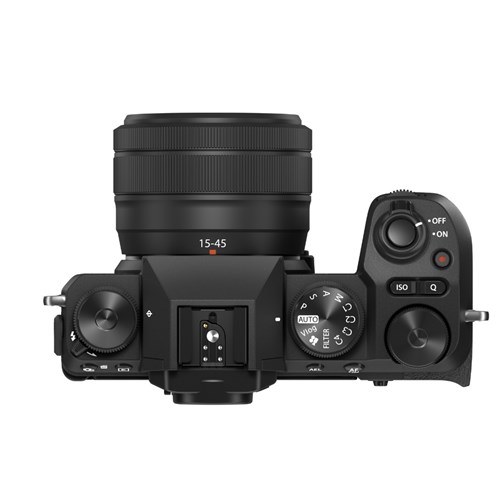

Hot shoe |
Yes (Dedicated TTL Flash compatible) |
EVF |
0.39 inch OLED Color Viewfinder |
Approx. 2.36 million dots |
Built-In Eye Sensor |
Coverage of Viewing Area vs. Capturing Area |
Approx. 100% |
Eyepoint |
Approx. 17.5mm (from the Rear End of the Camera's Eyepiece) |
Diopter Adjustment |
-4~+2m-1 |
Magnification |
0.62x with 50mm Lens (35mm Equivalent) at infinity and Diopter set to -1.0m-1 |
Diagonal Angle of View |
approx. 31° (Horizontal angle of view: approx. 26° ) |
Type |

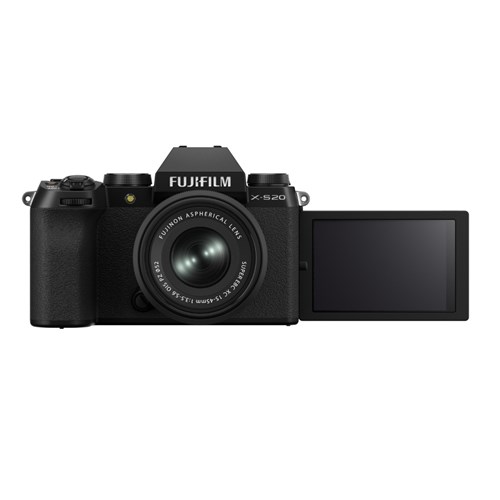

3.0 inch vari-angle Touch Screen Color LCD Monitor |
Aspect Ratio |
3:02 |
Dots |
Approx. 1.84 million dots |
Shooting Mode |
Shooting |
AF |
Focus Area |
OFF |
Double Tap Setting (ON/OFF) |
Touch Function Setting (ON/OFF) |
Touch Zoom (ON/OFF) |
EVF Touch Screen Area Setting |
Playback Mode |
Swipe |
Pinch-in / Pinch-out |
Double-tap |
Drag |
File format |
MOV |
HEVC/H.265, Linear PCM (Stereo sound 24bit / 48KHz sampling) |
MPEG-4 AVC/H.264, Linear PCM (Stereo sound 24bit / 48KHz sampling) |
|
MP4 |
MPEG-4 AVC/H.264, AAC |
Movie compression |
All Intra |
Long GOP |
6.2K(3:2) |
File size 6240 x 4160 |
|
Frame rate |
29.97p |
25p |
24p |
23.98p |
|
Bitrate |
360Mbps |
200Mbps |
100Mbps |
50Mbps |
DCI4K(17:9) |
File size 4096 x 2160 |
|
Frame rate |
59.94p |
50p |
29.97p |
25p |
24p |
23.98p |
|
Bitrate |
360Mbps |
200Mbps |
100Mbps |
50Mbps |
4K(16:9) |
File size 3840 x 2160 |
|
Frame rate |
59.94p |
50p |
29.97p |
25p |
24p |
23.98p |
|
Bitrate |
360Mbps |
200Mbps |
100Mbps |
50Mbps |
Full HD(17:9) |
File size 2048 x 1080 |
|
Frame rate |
59.94p |
50p |
29.97p |
25p |
24p |
23.98p |
|
Bitrate |
360Mbps |
200Mbps |
100Mbps |
50Mbps |
Full HD(16:9) |
File size 1920 x 1080 |
|
Frame rate |
59.94p |
50p |
29.97p |
25p |
24p |
23.98p |
|
Bitrate |
360Mbps |
200Mbps |
100Mbps |
50Mbps |
Full HD LP(17:9) |
File size 2048 x 1080 (1.29x Crop) |
|
Frame rate |
59.94p |
50p |
|
Bitrate |
360Mbps |
200Mbps |
100Mbps |
50Mbps |
Full HDLP(16:9) |
File size 1920 x 1080 (1.29x Crop) |
|
Frame rate |
59.94p |
50p |
|
Bitrate |
360Mbps |
200Mbps |
100Mbps |
50Mbps |
Full HD(17:9) High speed rec. |
File size 2048 x 1080 |
|
Frame rate |
240p |
200p |
120p |
100p |
|
Bitrate |
360Mbps (recording) |
200Mbps (recording) |
Full HD(16:9) High speed rec. |
File size 1920 x 1080 |
|
Frame rate |
240p |
200p |
120p |
100p |
|
Bitrate |
360Mbps (recording) |
200Mbps (recording) |
Notes |
*For recording movies, use a SD memory card with UHS Speed Class 3 or higher. |
*For recording movies in 360Mbps, use a SD memory card with Video Speed Class 60 or higher. |
*Selectable bitrate will be changed depends on the setting. |
*Recording time can become short depending on the temperature and/or shooting conditions> |
Modes |
19 modes |
PROVIA/Standard |
Velvia/Vivid |
ASTIA/Soft |
Classic Chrome |
PRO Neg.Hi |
PRO Neg.Std |
Classic Neg. |
Nostalgic Neg. |
ETERNA/Cinema |
ETERNA BLEACH BYPASS |
ACROS |
ACROS + Ye Filter |
ACROS + R Filter |
ACROS + G Filter |
Black & White |
Black & White + Ye Filter |
Black & White + R Filter |
Black & White + G Filter |
Sepia |
Monochromatic Color |
Yes |
Roughness |
STRONG, WEAK, OFF |
Size |
LARGE, SMALL |
Color Chrome Effect |
STRONG, WEAK, OFF |
Color chrome Blue |
STRONG, WEAK, OFF |
Still |
AUTO / 100% / 200% / 400% |
ISO restriction DR100%: No limit、DR200%: ISO320 or more、DR400%: ISO640 or more |
Movie |
100% / 200% / 400% |
ISO restriction DR100%: No limit、DR200%: ISO320 or more、DR400%: ISO640 or more |
Auto |
White Priority |
Auto |
Ambience Priority |
Custom |
Custom1 - 3 |
Color temperature selection |
2500K~10000K |
Preset |
Daylight |
Shade |
Fluorescent Light-1 |
Fluorescent Light-2 |
Fluorescent Light-3 |
Incandescent Light |
Underwater |
Clarity setting |
±5 steps |
Still |
10sec. |
2sec. |
Movie |
10sec. |
5sec. |
3sec. |
Interval timer shooting |
Yes (Setting : Interval, Number of shots, Starting time, Interval timer shooting exposure smoothing, Interval priority mode) |
Standard |
IEEE802.11a/b/g/n/ac (standard wireless protocol) |
Encryption |
WPA/WPA2 mixed mode, WPA3 |
Access mode |
Infrastructure |
Standard |
Bluetooth Ver. 4.2 (Bluetooth low energy) |
Operating frequency (Center frequency) |
2402〜2480MHz |
Digital interface |
USB Type-C (USB3.2 Gen2x1) |
HDMI output |
HDMI Micro connector (Type D) |
Others |
ø3.5mm, stereo mini connector (Microphone) |
ø3.5mm, stereo mini connector (Headphone) |
Hot shoe |
Battery |
NP-W235 Li-ion battery (included) |
Battery life for still images |
Economy Mode Approx. 800 frames |
Normal Mode Approx. 750 frames |
*When XF35mmF1.4 R is set |
Actual battery life of movie capture |
6.2K Approx. 85min. (29.97p) |
4K Approx. 80min. (59.94p) |
Full HD Approx. 95min. (59.94p)、Approx. 95min. (120P) |
*Face detection is set to OFF |
Continuance battery life of movie capture |
6.2K Approx. 120min. (29.97p) |
4K Approx. 110min. (59.94p) |
Full HD Approx. 150min. (59.94p) |
*Face detection is set to OFF<? |
Note |
*Approximate number of frames or movie recording time that can be taken with a fully-charged based on CIPA Standard. |
Width |
127.7mm |
Height |
85.1mm |
Depth |
65.4mm |
(Minimum Depth) |
(32.9mm) |
including battery and memory card |
491g |
excluding battery and memory card |
410g |
Operating Temperature |
0℃~+40℃ |
Operating Humidity |
10% - 80% (no condensation) |
