| Model name |
FUJIFILM X-S20 |
| Lens Mount |
FUJIFILM X mount |
| Image sensor |
23.5mm x 15.6mm (APS-C) X-Trans CMOS 4 with primary color filter |
| Number of effective pixels |
26.1 millions pixels |
| Sensor Cleaning System |
Ultra Sonic Vibration |
| Image Processing Engine |
X-Processor 5 |
| Storage media |
SD Card (-2GB) |
| SDHC Card (-32GB) |
| SDXC Card (-2TB) |
| UHS-I |
| UHS-II |
| Video Speed Class V90 |
| |
| *Please see the Fujifilm website to check memory card compatibility. |
| DCF |
Compliant with Design rule for Camera File system (DCF2.0) |
| JPEG |
Exif Ver.2.32 |
| HEIF |
4:2:2 10bit |
| RAW |
14bit RAW (RAF original format) |
| TIFF |
8bit / 16bit RGB (In-camera Raw Conversion Only) |
| [L] |
3:2 6240 x 4160 |
| 16:9 6240 x 3512 |
| 1:1 4160 x 4160 |
| [M] |
3:2 4416 x 2944 |
| 16:9 4416 x 2488 |
| 1:1 2944 x 2944 |
| [S] |
3:2 3120 x 2080 |
| 16:9 3120 x 1760 |
| 1:1 2080 x 2080 |
| [L] |
Vertical 9600 x 2160 |
| Horizontal 9600 x 1440 |
| [M] |
Vertical 6400 x 2160 |
| Horizontal 6400 x 1440 |
| Still Image |
Standard Output |
| AUTO1 |
| AUTO2 |
| AUTO3 |
| ISO160～12800 (1/3 step) |
| |
| Extended Output |
| ISO80 |
| ISO100 |
| ISO125 |
| ISO25600 |
| ISO51200 |
| Movie |
Standard Output |
| AUTO |
| ISO125～12800 (1/3 step) |
| |
| Extended Output |
| ISO25600 |
| Exposure control |
TTL 256-zone metering |
| Multi |
| Spot |
| Average |
| Center Weighted |
| Exposure mode |
P (Program AE) |
| A (Aperture Priority AE) |
| S (Shutter Speed Priority AE) |
| M (Manual Exposure) |
| Exposure compensation |
Still -5.0EV～+5.0EV 1/3EV step |
| Movie -2.0EV～+2.0EV 1/3EV step |
| Mechanism |
Image sensor shift mechanism with 5-axis compensation |
| Compensation Effect |
7.0 stops |
| *based on CIPA standard |
| *Pitch/yaw shake only |
| *With XF35mmF1.4 R lens mounted |
| Digital Image Stabilization |
Yes (movie mode only) |
| IS MODE BOOST |
Yes (movie mode only) |
| Shutter type |
Focal Plane Shutter |
| Shutter speed |
Mechanical shutter: |
| P mode 30sec. to 1/4000sec. |
| A mode 30sec. to 1/4000sec. |
| S/M mode 15min. to 1/4000sec. |
| Bulb up to 60min. |
| |
| Electronic shutter: |
| P mode 30sec. to 1/32000sec. |
| A mode 30sec. to 1/32000sec. |
| S/M mode 15min. to 1/32000sec. |
| Bulb 1sec. Fixed |
| |
| Mechanical + Electronic shutter: |
| P mode 30sec. to 1/32000sec. |
| A mode 30sec. to 1/32000sec. |
| S/M mode 15min. to 1/32000sec. |
| Bulb up to 60min. |
| *Mechanical shutter works until 1/4000sec. |
| |
| Movie: |
| 6.2K 1/4000sec. to 1/24 sec. |
| DCI4K/4K 1/4000sec. to 1/24 sec. |
| FHD 1/4000sec. to 1/24 sec. |
| *Cannot choose slower shutter speed than framerate for some settings. |
| |
| Synchronized shutter speed for flash: |
| Mechanical shutter 1/180sec. or slower |
| CH |
Electronic shutter Approx. 30fps (1.25x Crop) |
| JPEG 407frames |
| Compressed RAW 88frames |
| Lossless compressed RAW 62frames |
| Uncompressed RAW 28frames |
| Compressed RAW + JPEG 41frames |
| Lossless compressed RAW + JPEG 36frames |
| Uncompressed RAW + JPEG 28frames |
| |
| Electronic shutter Approx. 20fps (1.25x Crop) |
| JPEG 1000+ frames |
| Compressed RAW 104frames |
| Lossless compressed RAW 72frames |
| Uncompressed RAW 30frames |
| Compressed RAW + JPEG 66frames |
| Lossless compressed RAW + JPEG 53frames |
| Uncompressed RAW + JPEG 30frames |
| |
| Electronic shutter Approx. 10fps (1.25x Crop) |
| JPEG 1000+ frames |
| Compressed RAW 1000+ frames |
| Lossless compressed RAW 215frames |
| Uncompressed RAW 40frames |
| Compressed RAW + JPEG 163frames |
| Lossless compressed RAW + JPEG 102frames |
| Uncompressed RAW + JPEG 40frames |
| |
| Electronic shutter Approx. 20fps |
| JPEG 256frames |
| Compressed RAW 79frames |
| Lossless compressed RAW 44frames |
| Uncompressed RAW 28frames |
| Compressed RAW+JPEG 68frames |
| Lossless compressed RAW+JPEG 33frames |
| Uncompressed RAW+JPEG 28frames |
| |
| Electronic shutter Approx. 10fps |
| JPEG 1000+ frames |
| Compressed RAW 341frames |
| Lossless compressed RAW 82frames |
| Uncompressed RAW 32frames |
| Compressed RAW+JPEG 89frames |
| Lossless compressed RAW+JPEG 51frames |
| Uncompressed RAW+JPEG 32frames |
| |
| Electronic shutter Approx. 8fps |
| JPEG 1000+ frames |
| Compressed RAW 1000+ frames |
| Lossless compressed RAW 90frames |
| Uncompressed RAW 35frames |
| Compressed RAW+JPEG 94frames |
| Lossless compressed RAW+JPEG 57frames |
| Uncompressed RAW+JPEG 33frames |
| |
| Mechanical shutter Approx. 8fps |
| JPEG 1000+ frames |
| Compressed RAW 1000+ frames |
| Lossless compressed RAW 90frames |
| Uncompressed RAW 35frames |
| Compressed RAW+JPEGCompressed RAW+JPEG 94frames |
| Lossless compressed RAW+JPEG 57frames |
| Uncompressed RAW+JPEG 33frames |
| CL |
Approx. 5.0fps |
| JPEG 1000+ frames |
| Compressed RAW 1000+ frames |
| Lossless compressed RAW 1000+ frames |
| Uncompressed RAW 49frames |
| |
| Approx. 4.0fps |
| JPEG 1000+ frames |
| Compressed RAW 1000+ frames |
| Lossless compressed RAW 1000+ frames |
| Uncompressed RAW 67 frames |
| |
| Approx. 3.0fps |
| JPEG 1000+ frames |
| Compressed RAW 1000+ frames |
| Lossless compressed RAW 1000+ frames |
| Uncompressed RAW 1000+ frames |
| Pre-shot |
|
| |
| Electronic shutter, 1.25 x Crop Approx. 30fps |
| While half press 30frames |
| After full press 75frames |
| Total 105frames |
| |
| Electronic shutter, 1.25 x Crop Approx. 20fps |
| While half press 20frames |
| After full press 576frames |
| Total 596frames |
| |
| Electronic shutter, 1.25 x Crop Approx. 10fps |
| While half press 10frames |
| After full press 1000+ frames |
| Total 1000+ frames |
| |
| Electronic shutter Approx. 20fps |
| While half press 20frames |
| After full press 998frames |
| Total 1018frames |
| |
| Electronic shutter Approx. 10fps |
| While half press 10frames |
| After full press 1000+ frames |
| Total 1000+ frames |
| |
| Electronic shutter Approx. 8fps |
| While half press 8frames |
| After full press 1000+ frames |
| Total 1000+ frames |
| AE Bracketing |
2 frames |
| 3 frames |
| 5 frames |
| 7 frames |
| 9 frames |
| *by 1/3EV step, up to ±3EV steps |
| Filmsimulation bracketing |
Any 3 types of film simulation selectable |
| Dynamic Range Bracketing |
100% |
| 200% |
| 400% |
| ISO sensitivity Bracketing |
±1/3EV |
| ±2/3EV |
| ±1EV |
| White Balance Bracketing |
±1 |
| ±2 |
| ±3 |
| Focus Bracketing |
AUTO |
| MANUAL |
| Multiple Exposure |
Yes (Max. 9 frames) |
| Additive |
| Average |
| Bright |
| Dark |
| HDR Mode |
AUTO |
| 200% |
| 400% |
| 800% |
| 800% + |
| Advanced filter |
Toy camera |
| Miniature |
| Pop color |
| High-key |
| Low-key |
| Dynamic tone |
| Soft focus |
| Partial color (Red / Orange / Yellow / Green / Blue / Purple) |
| Mode |
Single AF |
| Continuous AF |
| MF |
| Type |
Intelligent Hybrid AF (TTL contrast AF / TTL phase detection AF) |
| Low-light Performance |
Contrast -4.0EV |
| Phase Detection -7.0EV |
| with a XF50mmF1.0 lens attached |
| AF frame selection |
Single point AF 13x9 / 25x17 (Changeable size of AF frame) |
| Zone AF 3x3 / 5x5 / 7x7 from 117 areas on 13×9 grid |
| Wide/Tracking AF Yes (AF-S: Wide / AF-C: Tracking) |
| All Yes |
| Face/eye detection |
Yes |
| Subject detection |
Yes (Animal/Bird/Automobile/Motorcycle&Bike/Airplane/Train) |
| Built-in flash |
Manual pop-up flash (Super Intelligent Flash) |
| |
| Guide Number Effective range(ISO1600) |
| approx. 7 (ISO200・m) / approx. 5 (ISO100・m) |
| |
| Sync. Mode |
| 1st Curtain |
| 2nd Curtain |
| |
| Flash Mode |
| TTL (TTL AUTO / STANDARD / SLOW SYNC. ) |
| MANUAL |
| COMMANDER |
| Shoe mount flash |
Sync. Mode |
| 1st Curtain |
| 2nd Curtain |
| AUTO FP (HSS) |
| |
| Flash Mode |
| TTL (TTL AUTO / STANDARD / SLOW SYNC. ) |
| MANUAL |
| MULTI *When EF-X500 is set |
| OFF |
| Hot shoe |
Yes (Dedicated TTL Flash compatible) |
| EVF |
0.39 inch OLED Color Viewfinder |
| Approx. 2.36 million dots |
| Built-In Eye Sensor |
| Coverage of Viewing Area vs. Capturing Area |
Approx. 100% |
| Eyepoint |
Approx. 17.5mm (from the Rear End of the Camera's Eyepiece) |
| Diopter Adjustment |
-4～+2m-1 |
| Magnification |
0.62x with 50mm Lens (35mm Equivalent) at infinity and Diopter set to -1.0m-1 |
| Diagonal Angle of View |
approx. 31° (Horizontal angle of view: approx. 26° ) |
| Type |
3.0 inch vari-angle Touch Screen Color LCD Monitor |
| Aspect Ratio |
3:02 |
| Dots |
Approx. 1.84 million dots |
| Shooting Mode |
Shooting |
| AF |
| Focus Area |
| OFF |
| Double Tap Setting (ON/OFF) |
| Touch Function Setting (ON/OFF) |
| Touch Zoom (ON/OFF) |
| EVF Touch Screen Area Setting |
| Playback Mode |
Swipe |
| Pinch-in / Pinch-out |
| Double-tap |
| Drag |
| File format |
MOV |
| HEVC/H.265, Linear PCM (Stereo sound 24bit / 48KHz sampling) |
| MPEG-4 AVC/H.264, Linear PCM (Stereo sound 24bit / 48KHz sampling) |
| |
| MP4 |
| MPEG-4 AVC/H.264, AAC |
| Movie compression |
All Intra |
| Long GOP |
| 6.2K(3:2) |
File size 6240 x 4160 |
| |
| Frame rate |
| 29.97p |
| 25p |
| 24p |
| 23.98p |
| |
| Bitrate |
| 360Mbps |
| 200Mbps |
| 100Mbps |
| 50Mbps |
| DCI4K(17:9) |
File size 4096 x 2160 |
| |
| Frame rate |
| 59.94p |
| 50p |
| 29.97p |
| 25p |
| 24p |
| 23.98p |
| |
| Bitrate |
| 360Mbps |
| 200Mbps |
| 100Mbps |
| 50Mbps |
| 4K(16:9) |
File size 3840 x 2160 |
| |
| Frame rate |
| 59.94p |
| 50p |
| 29.97p |
| 25p |
| 24p |
| 23.98p |
| |
| Bitrate |
| 360Mbps |
| 200Mbps |
| 100Mbps |
| 50Mbps |
| Full HD(17:9) |
File size 2048 x 1080 |
| |
| Frame rate |
| 59.94p |
| 50p |
| 29.97p |
| 25p |
| 24p |
| 23.98p |
| |
| Bitrate |
| 360Mbps |
| 200Mbps |
| 100Mbps |
| 50Mbps |
| Full HD(16:9) |
File size 1920 x 1080 |
| |
| Frame rate |
| 59.94p |
| 50p |
| 29.97p |
| 25p |
| 24p |
| 23.98p |
| |
| Bitrate |
| 360Mbps |
| 200Mbps |
| 100Mbps |
| 50Mbps |
| Full HD LP(17:9) |
File size 2048 x 1080 (1.29x Crop) |
| |
| Frame rate |
| 59.94p |
| 50p |
| |
| Bitrate |
| 360Mbps |
| 200Mbps |
| 100Mbps |
| 50Mbps |
| Full HDLP(16:9) |
File size 1920 x 1080 (1.29x Crop) |
| |
| Frame rate |
| 59.94p |
| 50p |
| |
| Bitrate |
| 360Mbps |
| 200Mbps |
| 100Mbps |
| 50Mbps |
| Full HD(17:9) High speed rec. |
File size 2048 x 1080 |
| |
| Frame rate |
| 240p |
| 200p |
| 120p |
| 100p |
| |
| Bitrate |
| 360Mbps (recording) |
| 200Mbps (recording) |
| Full HD(16:9) High speed rec. |
File size 1920 x 1080 |
| |
| Frame rate |
| 240p |
| 200p |
| 120p |
| 100p |
| |
| Bitrate |
| 360Mbps (recording) |
| 200Mbps (recording) |
| Notes |
*For recording movies, use a SD memory card with UHS Speed Class 3 or higher. |
| *For recording movies in 360Mbps, use a SD memory card with Video Speed Class 60 or higher. |
| *Selectable bitrate will be changed depends on the setting. |
| *Recording time can become short depending on the temperature and/or shooting conditions> |
| Modes |
19 modes |
| PROVIA/Standard |
| Velvia/Vivid |
| ASTIA/Soft |
| Classic Chrome |
| PRO Neg.Hi |
| PRO Neg.Std |
| Classic Neg. |
| Nostalgic Neg. |
| ETERNA/Cinema |
| ETERNA BLEACH BYPASS |
| ACROS |
| ACROS + Ye Filter |
| ACROS + R Filter |
| ACROS + G Filter |
| Black & White |
| Black & White + Ye Filter |
| Black & White + R Filter |
| Black & White + G Filter |
| Sepia |
| Monochromatic Color |
Yes |
| Roughness |
STRONG, WEAK, OFF |
| Size |
LARGE, SMALL |
| Color Chrome Effect |
STRONG, WEAK, OFF |
| Color chrome Blue |
STRONG, WEAK, OFF |
| Still |
AUTO / 100％ / 200％ / 400％ |
| ISO restriction DR100%: No limit、DR200%: ISO320 or more、DR400%: ISO640 or more |
| Movie |
100％ / 200％ / 400％ |
| ISO restriction DR100%: No limit、DR200%: ISO320 or more、DR400%: ISO640 or more |
| Auto |
White Priority |
| Auto |
| Ambience Priority |
| Custom |
Custom1 - 3 |
| Color temperature selection |
2500K～10000K |
| Preset |
Daylight |
| Shade |
| Fluorescent Light-1 |
| Fluorescent Light-2 |
| Fluorescent Light-3 |
| Incandescent Light |
| Underwater |
| Clarity setting |
±5 steps |
| Still |
10sec. |
| 2sec. |
| Movie |
10sec. |
| 5sec. |
| 3sec. |
| Interval timer shooting |
Yes (Setting : Interval, Number of shots, Starting time, Interval timer shooting exposure smoothing, Interval priority mode) |
| Standard |
IEEE802.11a/b/g/n/ac (standard wireless protocol) |
| Encryption |
WPA/WPA2 mixed mode, WPA3 |
| Access mode |
Infrastructure |
| Standard |
Bluetooth Ver. 4.2 (Bluetooth low energy) |
| Operating frequency (Center frequency) |
2402〜2480MHz |

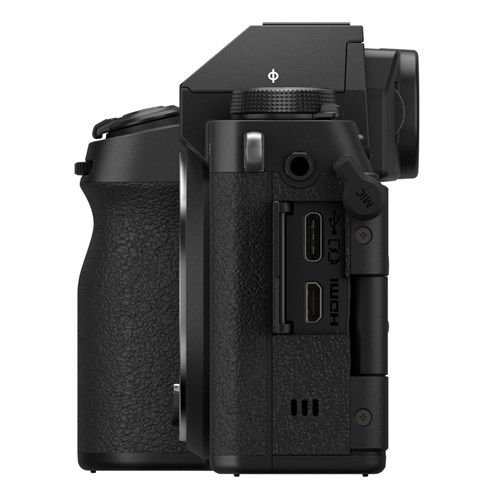

| Digital interface |
USB Type-C (USB3.2 Gen2x1) |
| HDMI output |
HDMI Micro connector (Type D) |
| Others |
ø3.5mm, stereo mini connector (Microphone) |
| ø3.5mm, stereo mini connector (Headphone) |

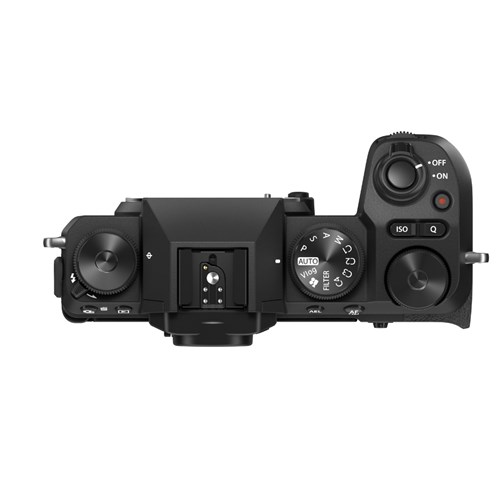

| Hot shoe |
| Battery |
NP-W235 Li-ion battery (included) |
| Battery life for still images |
Economy Mode Approx. 800 frames |
| Normal Mode Approx. 750 frames |
| *When XF35mmF1.4 R is set |
| Actual battery life of movie capture |
6.2K Approx. 85min. (29.97p) |
| 4K Approx. 80min. (59.94p) |
| Full HD Approx. 95min. (59.94p)、Approx. 95min. (120P) |
| *Face detection is set to OFF |
| Continuance battery life of movie capture |
6.2K Approx. 120min. (29.97p) |
| 4K Approx. 110min. (59.94p) |
| Full HD Approx. 150min. (59.94p) |
| *Face detection is set to OFF<? |
| Note |
*Approximate number of frames or movie recording time that can be taken with a fully-charged based on CIPA Standard. |
| Width |
127.7mm |
| Height |
85.1mm |
| Depth |
65.4mm |
| (Minimum Depth) |
(32.9mm) |
| including battery and memory card |
491g |
| excluding battery and memory card |
410g |
| Operating Temperature |
0℃～+40℃ |
| Operating Humidity |
10% - 80% (no condensation) |
