Laowa 24mm f/14 Cine Macro Probe Arri PL Mount Lens

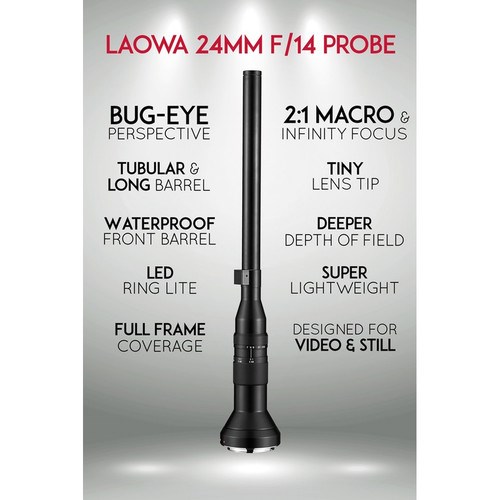

Key Features
  • Unique macro lens design offers a greater-than-life-sized 2:1 maximum magnification along with a minimum focusing distance of 1.5' and a working distance of just 0.8".
  • The long tubular lens barrel contributes to producing a distinct bug-eye perspective and, despite the short working distance, the length of the lens barrel places the camera at a comfortable shooting distance.
  • Wide-angle 24mm focal length affords greater depth of field and more surrounding detail than traditional telephoto macro designs, which tend to isolate subject matter with shallow depth of field.
  • Optical design includes two extra-low dispersion elements that control color fringing and chromatic aberrations to produce greater clarity and color accuracy. One extra refractive index element is also featured, which reduces spherical aberrations and distortion for improved sharpness and accurate rendering.
  • Slim 0.8" front diameter allows performing unique "slide-in" shots as well as affords a greater range of close-up, inconspicuous shooting opportunities. The smaller front diameter also makes it easier to illuminate close-up subjects from the front.
  • The front of the lens is waterproof, allowing you to comfortably work just under the water surface or in dusty environments.
  • The front of the lens has a built-in LED ring light which is powered via a micro-USB port on the barrel, providing some illumination on close-up subjects for easier focusing.
  • Designed for use as a close-up macro lens, the manual focus operation also lets you focus at infinity.
  • This "cine-mod" version of the lens has built-in focus and aperture gears to aid in doing focus and iris pulls.
  • Seven-blade diaphragm contributes to a pleasing bokeh quality.

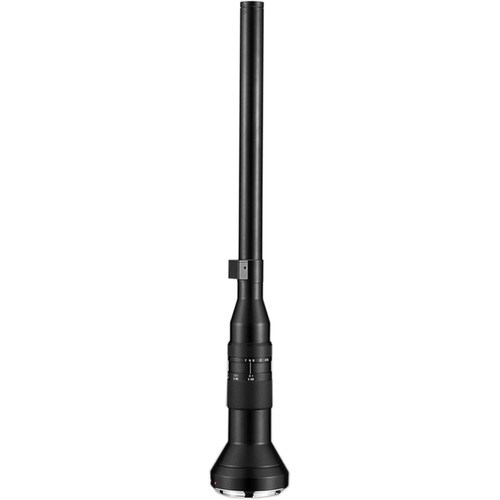

Described as "weird but genius," the ARRI PL-mount Laowa 24mm f/14 Probe Lens from Venus Optics is a truly unique lens designed for close-up shooting. Distinguished by its long and slender lens barrel, this macro lens provides a 2:1 maximum magnification with a 1.5' minimum focusing distance and a close 0.8" minimum working distance. Even with such a close working distance, the lens measures 1.3' long, placing you at a comfortable distance to photograph nearby subjects. Also, as a wide-angle lens, greater depth of field is afforded when compared to traditional telephoto macro lenses, allowing for greater detail in the background with less subject isolation.

Focal Length
24mm
Lens Mount
ARRI PL
Lens Format Coverage
Full Frame
Maximum Aperture
f/14
Minimum Aperture
f/40
Diagonal Angle of View
Full Frame: 85°
Minimum Focus Distance
From Camera Sensor: 1.5' / 47 cm
Optical Design
27 Elements in 19 Groups
Diaphragm Blades
7
Front Diameter
20 mm
Filter Thread
No
Focus Scales
No
Electronic Communication
No
Maximum Magnification Ratio
1:0.5
Image Stabilization
No
Dimensions (W x H)
2.4 x 2.4" / 60 x 60 mm
Length
1.3' / 408 mm
Weight
1 lb / 474 g
Packaging Info
Package Weight
4.6 lb
Box Dimensions (LxWxH)
20.2 x 7.35 x 5.9"
  • Venus Optics Laowa 24mm f/14 Probe Lens (ARRI PL, Cine-Mod Version)
  • USB Cable Dimmer with Power Adjustment
  • USB Cable
  • Lens Bag
  • Metal Lens Case
