Leofoto BV-10L 60mm Base Lever Release Video Head

119248

inc GST
Increase value Decrease value
Found a better price? We'll match it!* Price Match Now
  • Product Description
  • Specifications
  • What's in the Box?

Leofoto BV-10 60mm Low Profile Video Head

Key Features
  • 60mm Flat Base with 3/8"-16 Thread
  • 11 lb Payload
  • Quick Release Plate with 1/4"-20 Screw
  • 60° Pan and +90/-75° Tilt Adjustment
  • Individual Pan and Tilt Locks
  • Two Bubble Levels
  • Two Pan Handle Rosettes
  • Pan Handle Included

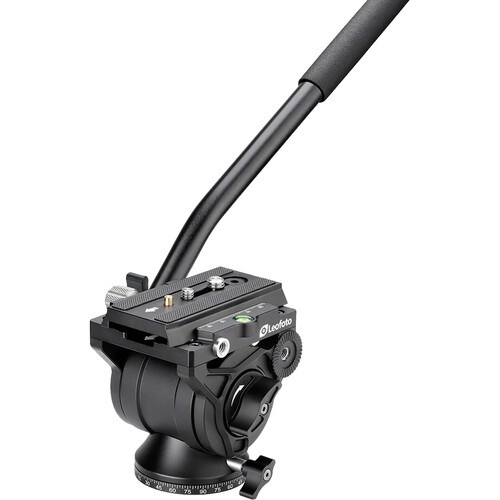

Lightweight and compact, this Fluid Video Head from Leofoto is suitable for DSLRs, mirrorless cameras, and compact camcorders weighing up to 11 lb. Featuring a Manfrotto-style plate and including both a 1/4"-20 and 3/8"-16 mounting screw, the head accepts a wide variety of cameras. The head features a 60mm flat base that can mount on compatible tripod legs, a slider carriage, or other platforms with a 3/8"-16 mounting screw.

Camera Plate Features
Quick Release, Sliding Balance Plate
Camera Plate Type
200PL-14, 501PL
Camera Mounting Screw
1x 1/4"-20 Male
1x 3/8"-16 Male
Base Mount
Flat Base
Counter Balance
No
Drag Type
Fluid
Load Capacity
11 lb / 5 kg

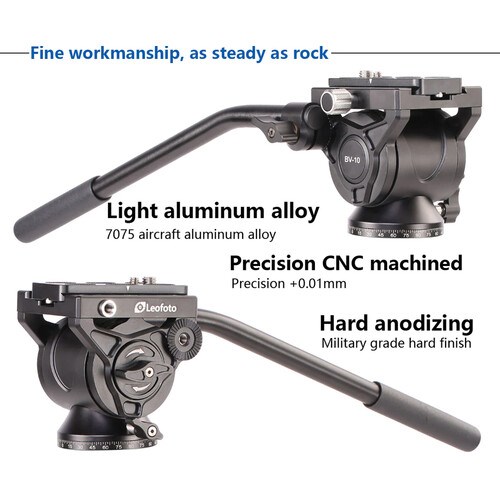

Materials
Aluminum
Camera Attachment
Camera Plate Features
Quick Release, Sliding Balance Plate
Camera Plate Type
200PL-14, 501PL
Camera Mounting Screw
1x 1/4"-20 Male
1x 3/8"-16 Male
Safety Lock
Yes

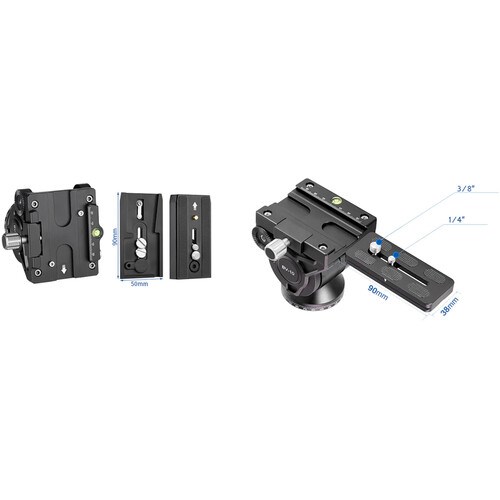

Plate Dimensions
3.5 x 2" / 90 x 50 mm
Head
Base Mount
Flat Base
Counter Balance
No
Pan Handle Fittings
2x Rosette
Included Pan Handle Length
12.6" / 320 mm
Bubble Level
2
Accessory Mounting
1x 3/8"-16 Female Thread

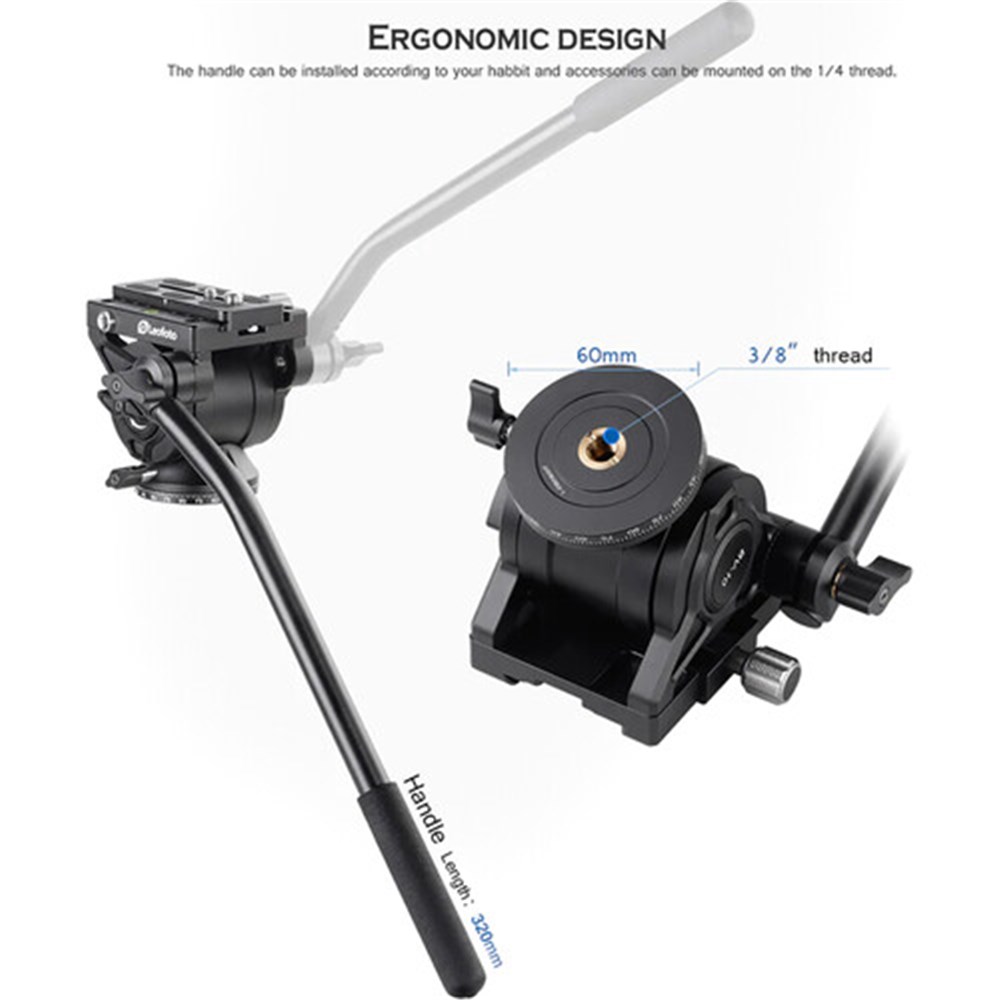

Base Diameter
2.4" / 60 mm
Pan & Tilt
Drag Type
Fluid

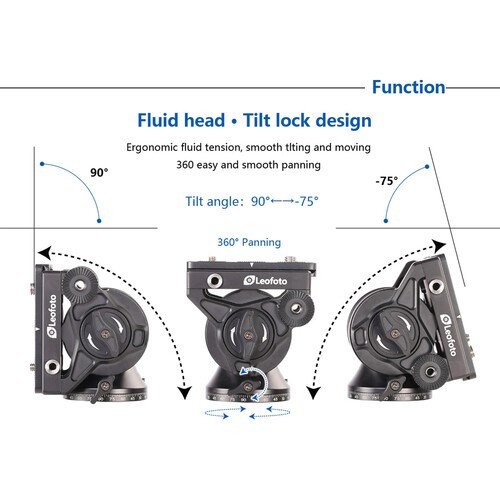

Vertical Tilt
+90° to -75°
Panning Range
360°
Independent Pan Lock
Yes
Independent Tilt Lock
Yes
General
Load Capacity
11 lb / 5 kg
Materials
Aluminum
Weight
1.5 lb / 0.7 kg
Packaging Info
Package Weight
2.17 lb
Box Dimensions (LxWxH)
14.8 x 5.7 x 4.2"

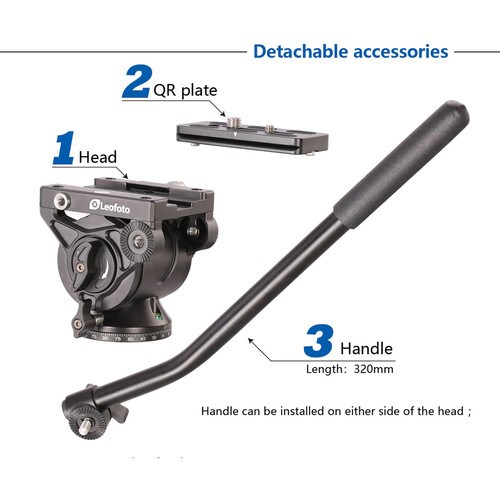

  • Leofoto Fluid Video Head (60mm, Flat Base)
  • MP-90 Quick Release Plate
  • Pan Handle
  • 1/4"-20 Screw
  • 3/8"-16 Screw
