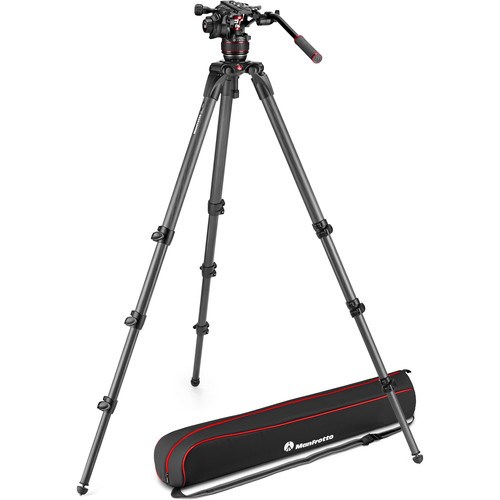

Manfrotto 608 Nitrotech Fluid Video Head and 536 Carbon Fiber Tripod

The 608 Nitrotech Fluid Video Head and 536 Carbon Fiber Single Legs Tripod from Manfrotto provide content creators with a versatile solution for various applications. A lightweight head is paired with a sturdy four-section tripod for a maximum height of 86" and a minimum height of only 16". The head supports up to 30.9 lb and features a Nitrogen gas piston mechanism that allows for continuous counterbalance across the full payload range. It's also designed with improved fluid technology that allows smooth and judder-free pan and tilt movements.

Other key features of the head include a side lock camera plate system and two rosette adapters each with a 3/8"-16 accessory port and Manfrotto and ARRI anti-rotation slots. A half ball is included to convert the flat base head to fit the tripod, which has a 100mm bowl and 75mm bowl adapter.

With a native flat base, the 608 Nitrotech can also be easily mounted on sliders, jibs, and other gear. The tripod's single legs can independently be set at 23, 50, and 70° angles. A padded carrying bag is included for the tripod.

  • Flat Base Head; Half Ball Included
  • Nitrogen Piston Counterbalance Mechanism
  • Continuous Counterbalance up to 30.9 lb
  • Continuous Variable Pan and Tilt Drag
  • 4-Section Carbon Fiber Single Legs
  • 86" Maximum Height / 16" Minimum Height
  • Side Lock Camera Plate System
  • Rosette Mounts with 3/8"-16 Port
  • Manfrotto and ARRI Anti-Rotation Slots
  • Padded Tripod Bag Included
  • Flat base with 3/8"-16 mounting thread allowing for use on tripods, sliders, jibs, monopods, and other support gear
  • Nitrogen gas piston counterbalance mechanism allows for continuous counterbalance adjustment for the full payload range of 0 to 30.9 lb
  • Upgraded fluid technology enabling smooth and judder-free pan and tilt movements via continuously variable drag performance
  • Easier, safer side-lock camera plate mechanism
  • Two rosette mounts with a 3/8"-16 port and Manfrotto and ARRI anti-rotation slots for attaching the included pan bar and a standard or anti-twist articulating arm
  • 5.9" height
Camera Plate
Camera Plate Features    Quick Release
Camera Plate Type    504PLONG
Camera Mounting Screw    1 x 1/4"-20 Male with Locating Pin
Tripod Platform
Base Mount    Flat Base
Pan & Tilt
Drag Control    Pan: Continuous
Tilt: Continuous
Drag Type    Fluid
Vertical Tilt    +90° to -70°
Panning Range    360°
Independent Pan Lock    Yes
Independent Tilt Lock    Yes
Physical
Material    Aluminum
Load Capacity    0 to 30.9 lb / 0 to 14 kg
Counter Balance    Continuous (0 to 17.6 lb / 0 to 7.98 kg)
Pan Handle Fittings    2 x Rosette
Bubble Level    1 x Illuminated
Accessory Mounting    2 x 3/8"-16 Female Thread
Operating Temperature    -4 to 122°F / -20 to 50°C
Dimensions    5.9" / 15 cm
Weight    4.9 lb / 2.22 kg
Packaging Info
Package Weight    6.6 lb
Box Dimensions (LxWxH)    30 x 20.5 x 20"
Manfrotto 536 Carbon Fiber Video Tripod Specs
General
Head Mount Type    100 mm Bowl
75/100 mm Bowl
75 mm Bowl
Load Capacity    55 lb / 25 kg
Maximum Working Height    80" / 203 cm
Minimum Working Height    10" / 26 cm
Folded Length    28" / 71 cm
Materials    Carbon Fiber, Magnesium
Bubble Level    No
Weight    7 lb / 3.25 kg
Legs
Leg Lock Type    Flip Lock
Leg Positions    3 Positions
Independent Leg Spread    Yes
Leg Sections    4
Leg Diameter    1.5" / 39.2 mm
Feet Features    Rubber
Packaging Info
Package Weight    9.8 lb
Box Dimensions (LxWxH)    31 x 8.8 x 8"

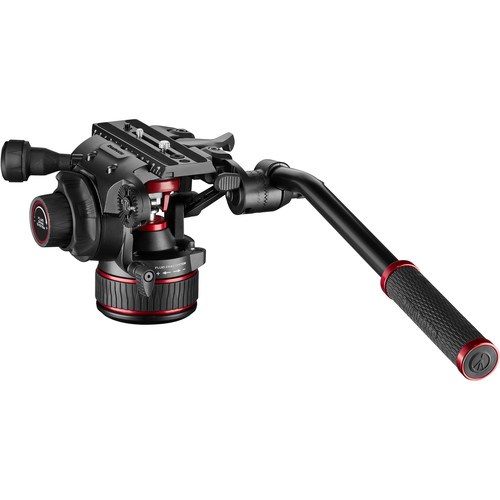

  • Manfrotto 608 Nitrotech Fluid Video Head
  • Pan Bar
  • 504PLONGR Camera Plate
  • 2 x 1/4"-20 Screw
  • 2 x 3/8"-16 Screw
  • 2 x Anti-Rotation Pin
  • Spare Rosette
  • CR1220 3V Battery

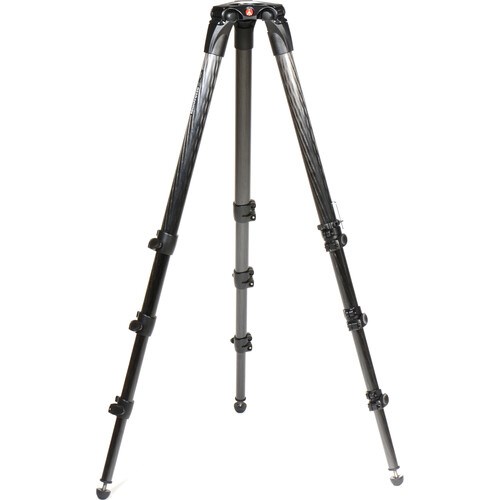

  • Manfrotto 536 Carbon Fiber Video Tripod
  • Bowl Adapter Ring
