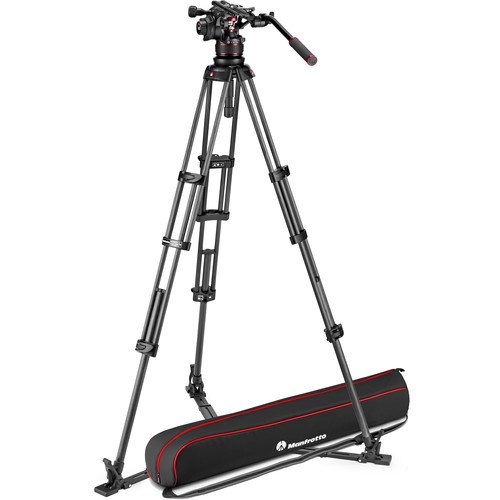

Manfrotto Nitrotech 612 Video Head MVK612TWINMA alu twin leg tripod

119658

inc GST
Increase value Decrease value
Found a better price? We'll match it!* Price Match Now
  • Product Description
  • Specifications
  • What's in the Box?

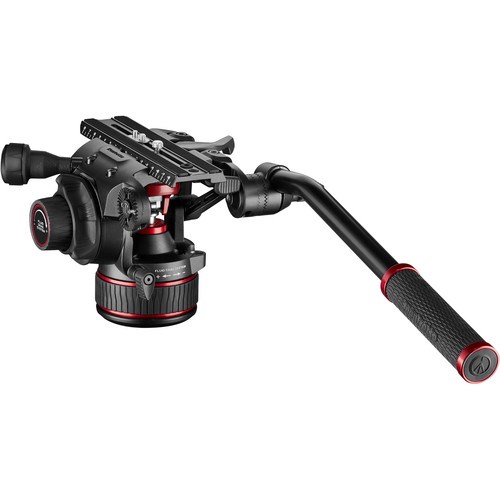

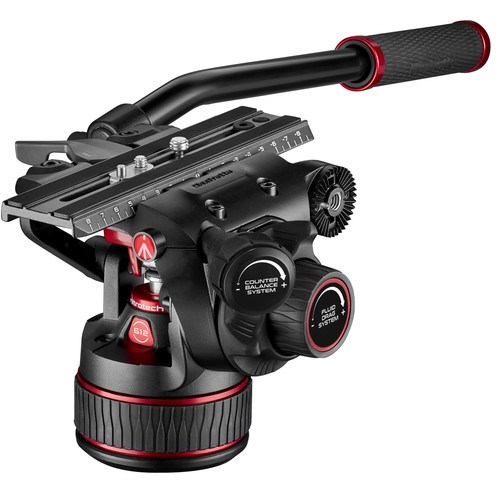

Manfrotto Nitrotech 612 Video Head MVK612TWINMA

Key Features
  • Flat Base Head; Half Ball Included
  • Nitrogen Piston Counterbalance Mechanism
  • 8.8 - 39.7 lb Continuous Counterbalance
  • Continuous Variable Pan and Tilt Drag
  • 3-Section Tripod, Removable Spreader
  • 68" Maximum Height / 19" Minimum Height
  • Twin Spiked Feet
  • Side Lock Camera Plate System
  • Rosette Mounts with 3/8"-16 Port
  • Manfrotto and ARRI Anti-Rotation Slots
  • Flat base with 3/8"-16 mounting thread allowing for use on tripods, sliders, jibs, monopods, and other support gear

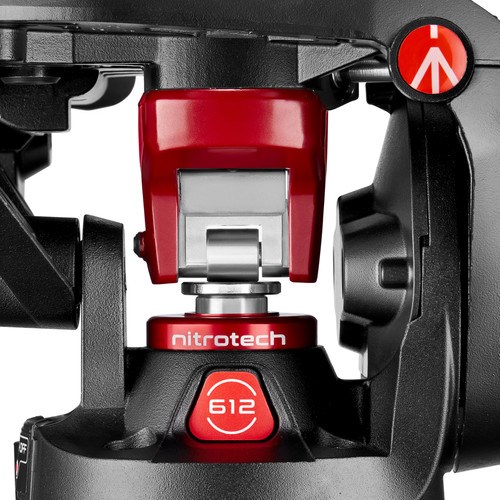

  • Nitrogen gas piston counterbalance mechanism allows for continuous counterbalance adjustment for the full payload range of 8.8 to 39.7 lb

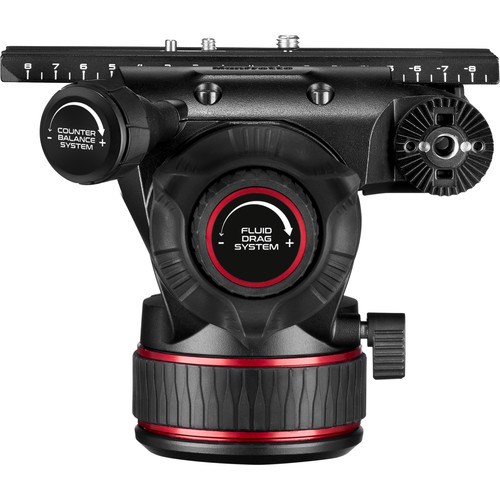

  • Upgraded fluid technology enabling smooth and judder-free pan and tilt movements via continuously variable drag performance
  • Easier, safer side-lock camera plate mechanism
  • Two rosette mounts with a 3/8"-16 port and Manfrotto and ARRI anti-rotation slots for attaching the included pan bar and a standard or anti-twist articulating arm
  • 5.9" height


The 612 Nitrotech Head and Carbon Fiber Twin Leg Tripod with Ground Spreader from Manfrotto provide content creators with a versatile solution for various applications. A compact fluid head is paired with a lightweight 3-section tripod and removable ground spreader that allows for maximum stability. The head features a Nitrogen gas piston mechanism that allows for continuous counterbalance from 8.8 to 39.7 lb. It's also designed with improved fluid technology that allows smooth and judder-free pan and tilt movements. Other key features of the head include a side lock camera plate system and two rosette adapters each with a 3/8"-16 accessory port and Manfrotto and ARRI anti-rotation slots

Camera Mounting Screw
1x 1/4"-20 Male with Locating Pin
Camera Plate
Quick Release: 504PLONG
Head Type
Fluid Head
Drag Control
Yes
Load Capacity
39.7 lb / 18 kg
Weight
5 lb / 2.27 kg
Camera Attachment
Camera Mounting Screw
1x 1/4"-20 Male with Locating Pin
Camera Plate
Quick Release: 504PLONG
Head
Head Type
Fluid Head
Base Mount
Flat Base (Thread Size Unspecified)
Counter Balance
Continuous (8.8 to 26.4 lb / 3.99 to 11.97 kg)
Pan & Tilt
Drag Control
Yes
Independent Pan Lock
Yes
Independent Tilt Lock
Yes
Vertical Tilt
+90° to -70°
General
Load Capacity
39.7 lb / 18 kg
Accessory Mounting
2x Pan Handle Fitting
2x 3/8"-16 Female Thread
Bubble Level
Yes (Illuminated)
Weight
5 lb / 2.27 kg
Packaging Info
Package Weight
6.5 lb
Box Dimensions (LxWxH)
30 x 20 x 9"

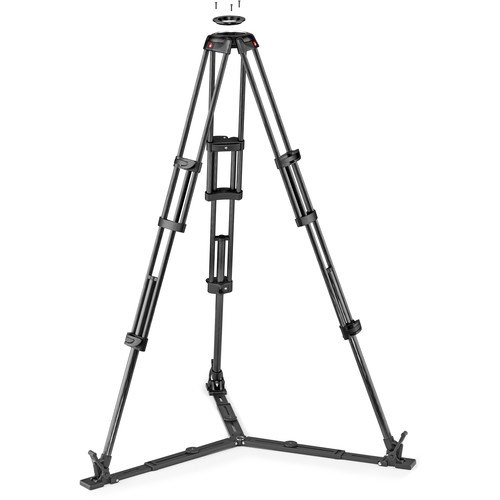

Manfrotto Carbon Fiber Twin Leg Video Tripod Legs with Ground Spreader (100/75mm Bowl) Specs

Key Specs
Head Mount Type
100 mm Bowl
Primary Leg Material
Carbon Fiber
Maximum Working Height
62.20" / 158 cm
Minimum Working Height
13.2" / 33.5 cm
Closed Length
27.2" / 69 cm
Weight
7.21 lb / 3.27 kg
Legs
Head Mount Type
100 mm Bowl
Primary Leg Material
Carbon Fiber
Leg Lock
Lever Lock
Leg Sections
3
Independent Leg Spread
Yes
Leg Positions
Continuously Adjustable
Foot Features
Dual Spiked
General
Maximum Working Height
62.20" / 158 cm
Minimum Working Height
13.2" / 33.5 cm
Closed Length
27.2" / 69 cm

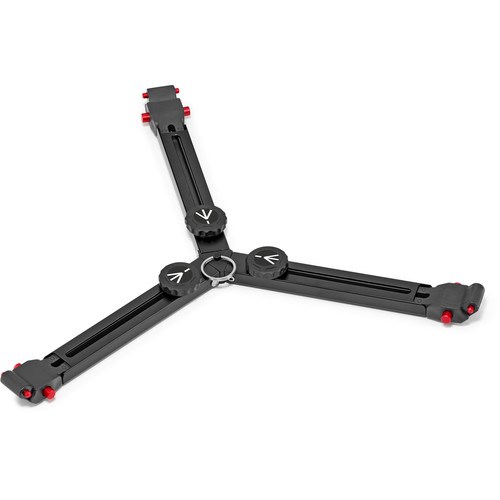

Spreader Support
Ground (Included)
Weight
7.21 lb / 3.27 kg
Packaging Info
Package Weight
9.2 lb
Box Dimensions (LxWxH)
31 x 9 x 8"
  • Manfrotto 612 Nitrotech Fluid Video Head
  • Pan Bar
  • 504PLONGRL Camera Plate
  • 2 x 1/4"-20 Screw
  • 2 x 3/8"-16 Screw
  • 2 x Anti-Rotation Pin
  • Spare Rosette
  • CR1220 3V Battery
  • Manfrotto Carbon Fiber Twin Leg Video Tripod Legs with Ground Spreader (100/75mm Bowl)
  • 100 to 75mm Adapter Ring
  • Half Ball
  • Padded Tripod Bag
