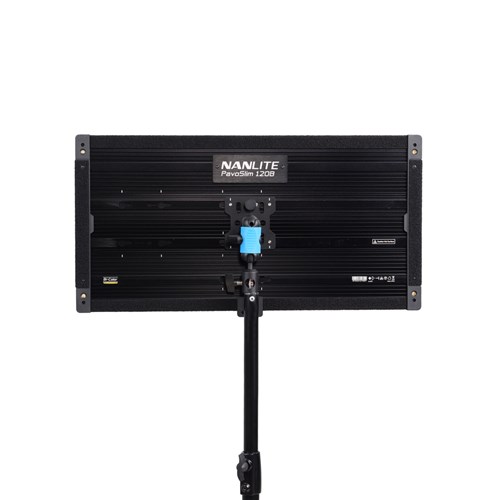

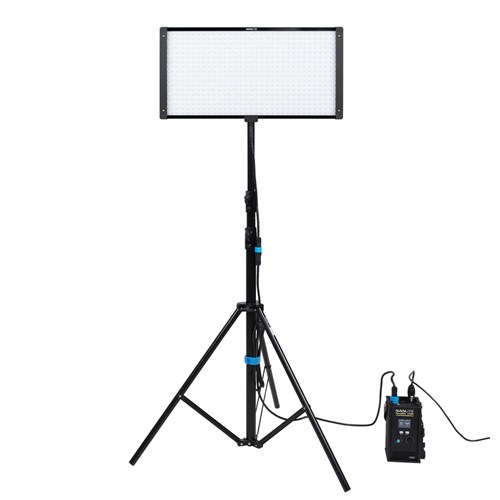

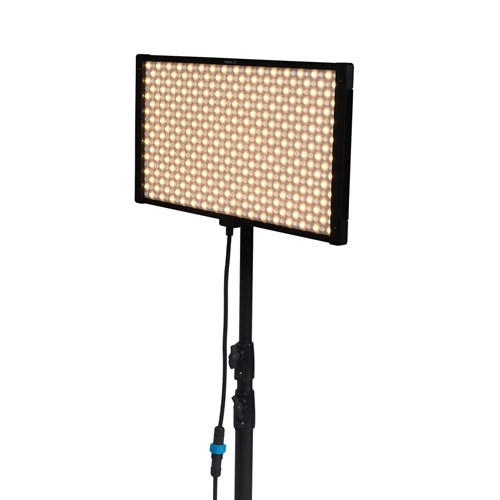

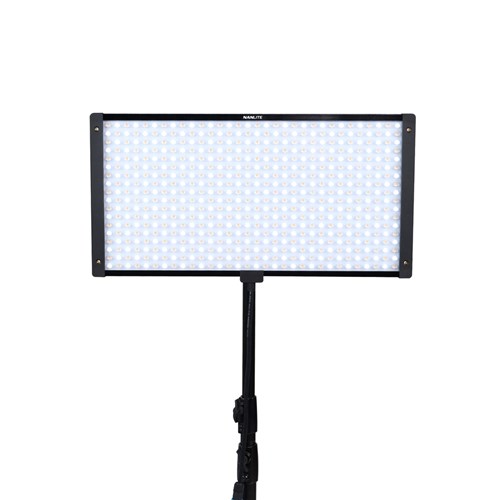

Nanlite PavoSlim 120B LED Bi-colour Panel Light

Key Features
  • Designed for studio, film, and TV productions, this thin and lightweight LED panel provides a bright illumination of 17,620 lux at 3.3'.
  • Variable color temperature range of 2700 to 6500K and 0 to 100% dimming.
  • 12 built-in special effects for CCT loop, intensity loop, flash, pulse, storm, police car, TV, paparazzi, candle/fire, disco, bad bulb, firework, explosion, and welding.
  • Multiple presets for LEE filters.
  • Silent passive cooling for working on sets with sound recording
  • 4-pin locking plate design to combine panels together to make a larger light source.

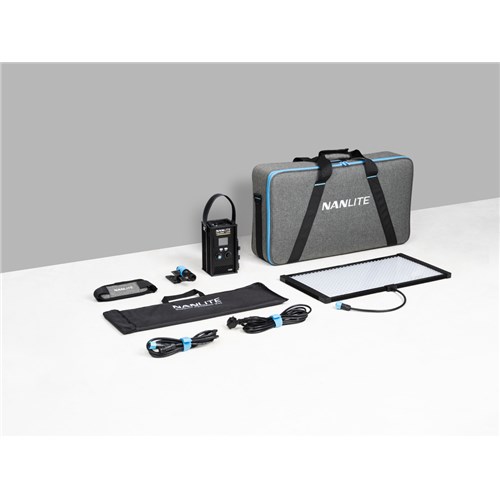

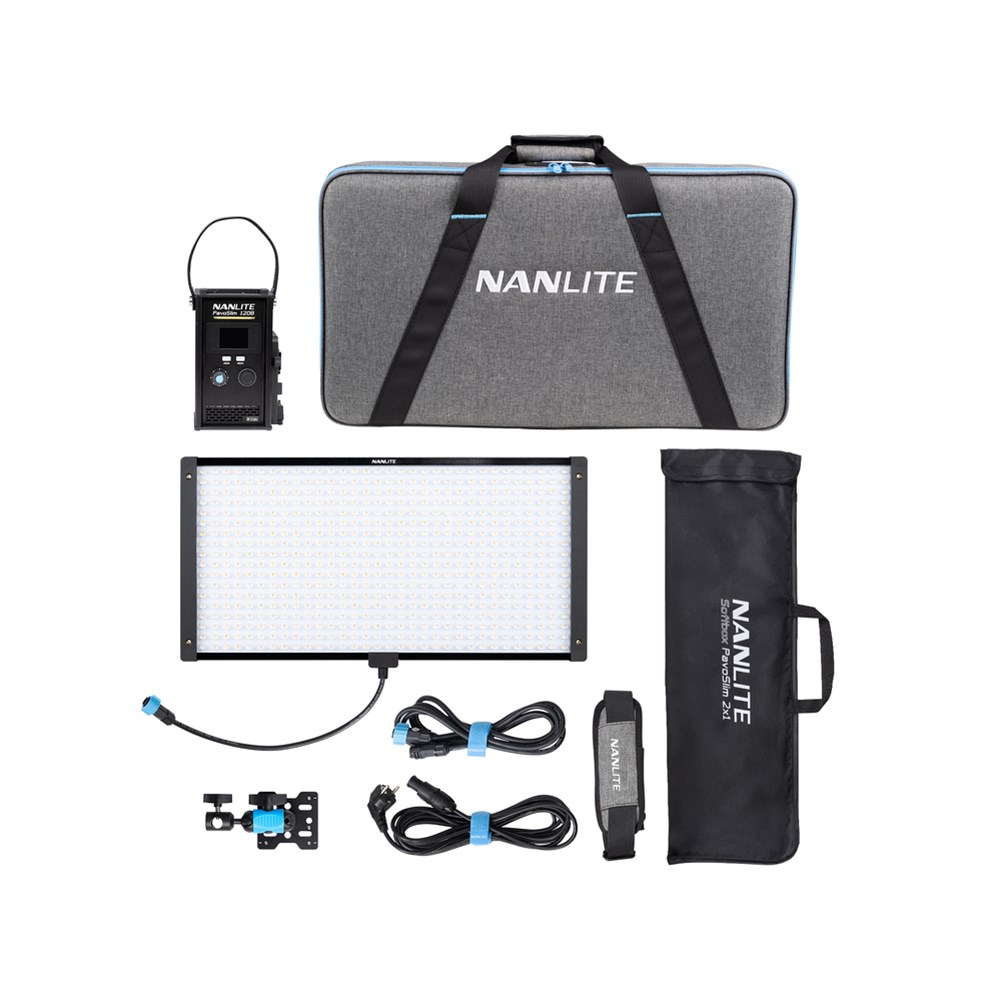

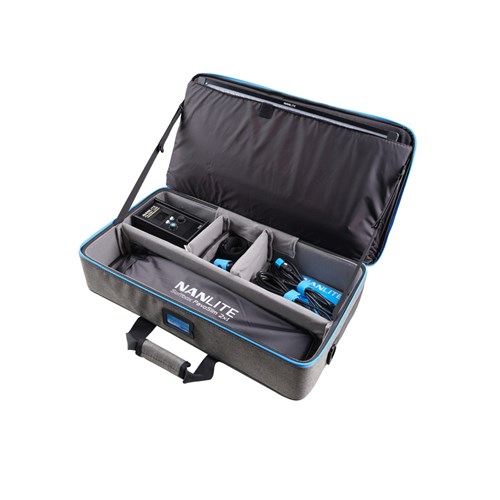

  • Includes two diffusers, a softbox, an eggcrate, and a soft case.

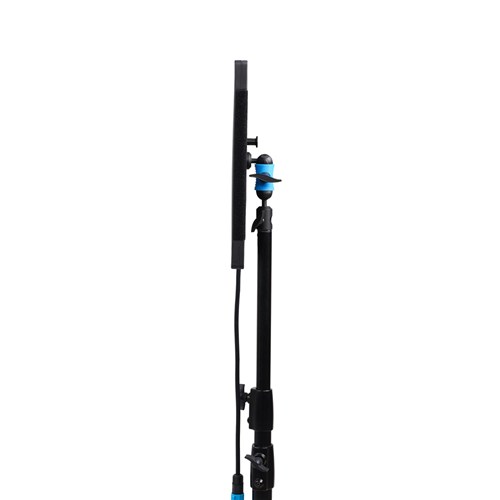

Thin, lightweight, and bright, this 60.2cm x 30.7cm PavoSlim 120B Bi-Color LED Panel from Nanlite is an ideal choice for shoots where color accuracy and sophisticated control are needed. Offering a wide variable color temperature range of 2700 to 6500K and 0-100% dimming, this slim and powerful panel seamlessly integrates into ambient light situations, letting you match the output of most fixtures. The panel's high CRI/TLCI ratings of 95/97 provide high color accuracy and rendering, and multiple onboard and wireless control options make for easy creative adjustments. Twelve built-in special effects are included for CCT loop, intensity loop, flash, pulse, storm, TV, paparazzi, candle/fire, disco, bad bulb, firework, explosion, and welding. Additionally, two diffusers, a softbox, and an eggcrate are also included for modifying and adjusting the panel's output.
Model PavoSlim 60B PavoSlim 120B
Rated Power 72W 150W
Input Voltage/Current DC(Battery)14.4-26V
DC(Battery)7.4V × 2
AC100-240V 50/60Hz
DC24V
DC(Battery)14.4-26V
AC100-240V 50/60Hz
CCT 2700K-6500K
CRI Average 95
TLCI Average 97
TM-30 Rf Average 95
TM-30 Rg Average 102
SSI (3200K) 83
SSI (5600K) 73
Dimming 0-100%
Control On-board, Remote Controller, NANLINK APP, DMX/RDM
Special Effects CCT Loop, INT Loop, Flash, Pulse, Storm, TV, Paparazzi, Candle/Fire, Bad Bulb, Firework,
Explosion and Welding
Product Size Light Fixture:
306.3 × 300.65 × 18.6mm / 12.06 × 11.84 × 0.73"

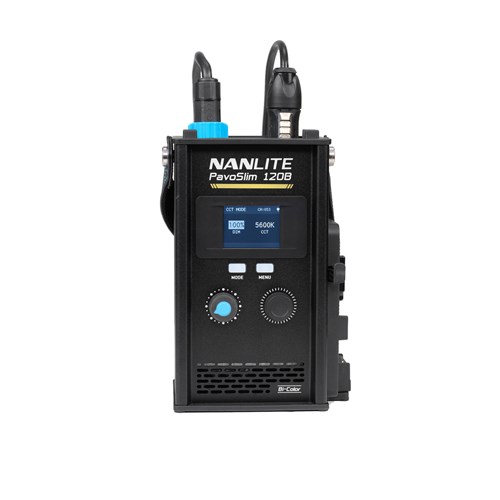

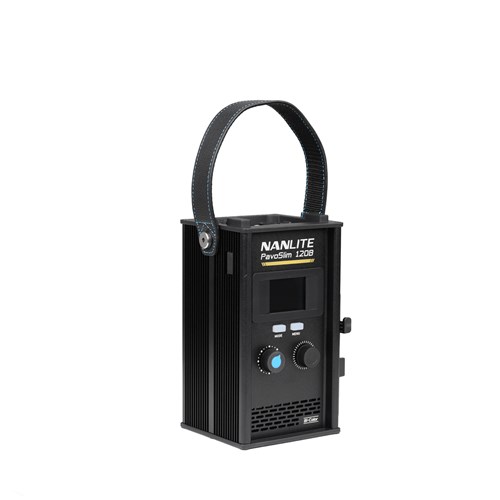

Control Unit:
146.45 × 111.48 × 175mm / 5.77 × 4.39 × 6.89"
Light Fixture:
602 × 306.3 × 18.6mm / 23.7 × 12.06 × 0.73"
Control Unit:
140.3 × 111.48 × 203mm / 5.52 × 4.39 × 7.99"
Product Weight Light Fixture:0.91kg / 2.01lb
Control Unit:1.37kg / 3.02lb
Light Fixture:1.65kg / 3.64lb
Control Unit:1.84kg / 4.06lb
Certifications RoHS,CE,UKCA,FCC-ID,NCC,KCC,PSE,BIS
Illumination ( lux / fc )
PavoSlim 60B
Light Only
Distance 0.5M 1M 3M
2700K 25160 lux / 2337 fc 7063 lux / 656 fc 840 lux / 78 fc
3200K 26350 lux / 2448 fc 7433 lux / 691 fc 871 lux / 81 fc
4300K 27700 lux / 2573 fc 7766 lux / 721 fc 902 lux / 84 fc
5600K 29180 lux / 2711 fc 8156 lux / 758 fc 955 lux / 89 fc
6500K 28140 lux / 2614 fc 7893 lux / 733 fc 918 lux / 85 fc
With Softbox and Standard Diffuser
Distance 0.5M 1M 3M
2700K 5040 lux / 468 fc 1148 lux / 107 fc 131 lux / 12 fc
3200K 5282 lux / 491 fc 1199 lux / 111 fc 137 lux / 13 fc
4300K 5560 lux / 517 fc 1258 lux / 117 fc 143 lux / 13 fc
5600K 5868 lux / 545 fc 1328 lux / 123 fc 152 lux / 14 fc
6500K 5694 lux / 529 fc 1282 lux / 119 fc 146 lux / 14 fc
PavoSlim 120B
Light Only
Distance 0.5M 1M 3M
2700K 46250 lux / 4297 fc 15480 lux / 1438 fc 1945 lux / 181 fc
3200K 48830 lux / 4536 fc 16210 lux / 1506 fc 2035 lux / 189 fc
4300K 53540 lux / 4974 fc 17940 lux / 1667 fc 2244 lux / 208 fc
5600K 52200 lux / 4979 fc 17620 lux / 1637 fc 2210 lux / 205 fc
6500K 53600 lux / 4979 fc 18010 lux / 1673 fc 2253 lux / 209 fc
With Softbox and Lite Diffuser
Distance 0.5M 1M 3M
2700K 22420 lux / 2083 fc 6495 lux / 603 fc 784 lux / 73 fc
3200K 23400 lux / 2174 fc 6812 lux / 633 fc 819 lux / 76 fc
4300K 26130 lux / 2427 fc 7593 lux / 705 fc 910 lux / 85 fc
5600K 25660 lux / 2384 fc 7435 lux / 691 fc 888 lux / 82 fc
6500K 26240 lux / 2438 fc 7601 lux / 706 fc 912 lux / 85 fc
With Softbox and Standard Diffuser
Distance 0.5M 1M 3M
2700K 10360 lux / 962 fc 2542 lux / 236 fc 301 lux / 28 fc
3200K 10850 lux / 1008 fc 2676 lux / 249 fc 311 lux / 29 fc
4300K 12040 lux / 1119 fc 2952 lux / 274 fc 344 lux / 32 fc
5600K 11810 lux / 1097 fc 2913 lux / 271 fc 337 lux / 31 fc
6500K 12100 lux / 1124 fc 2968 lux / 276 fc 345 lux / 32 fc
