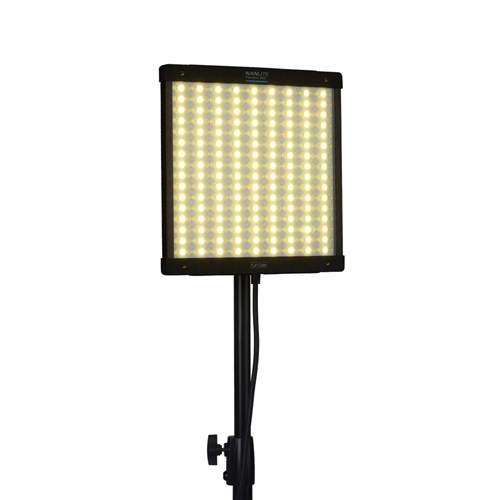

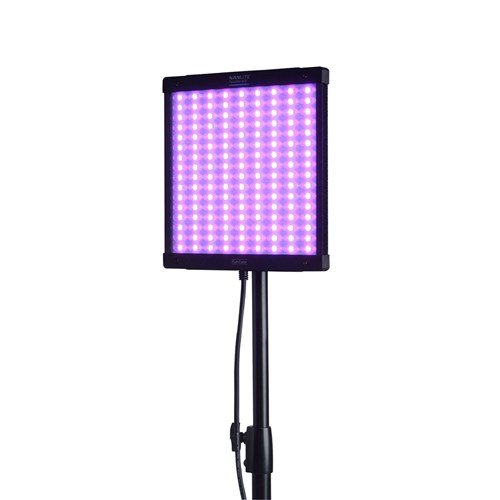

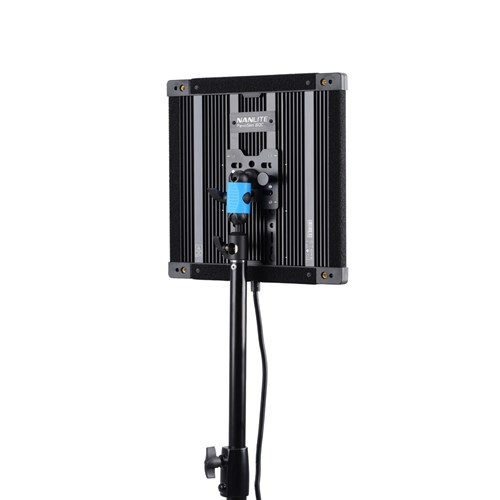

Nanlite PavoSlim 60C RGBWW LED Panel Light

Key Features
  • Designed for studio, film, and TV productions, this thin and lightweight LED panel provides a bright illumination of 7074 lux at 3.3'.
  • Variable color temperature range of 2700 to 7500K and thousands of colours and 0 to 100% dimming.
  • High CRI/TLCI ratings of 96/97 provide high color accuracy and rendering.
  • 15 built-in special effects for hue loop, CCT loop, intensity loop, flash, pulse, storm, police car, TV, paparazzi, candle/fire, disco, bad bulb, firework, explosion, and welding.
  • Multiple presets for LEE filters.
  • Silent passive cooling for working on sets with sound recording.
  • Built-in battery plates for one NP-F battery and one V-mount battery.
  • DMX/RDM port, Bluetooth, and wireless RF control options.
  • 4-pin locking plate design to combine panels together to make a larger light source.

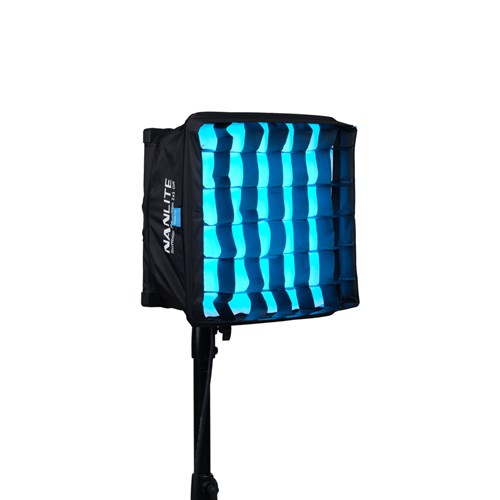

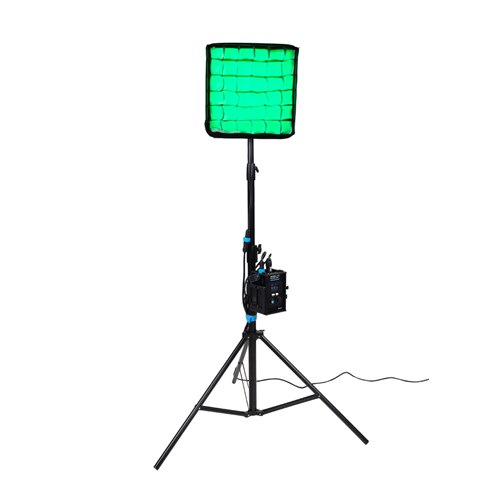

  • Includes two diffusers, a softbox, an eggcrate, and a soft case.

Thin, lightweight, and bright, this 30.7cm x 30cm PavoSlim 60C Bi-Color LED Panel from Nanlite is an ideal choice for shoots where color accuracy and sophisticated control are needed. Offering a wide variable color temperature range of 2700 to 7500K and 0-100% dimming, this slim and powerful panel seamlessly integrates into ambient light situations, letting you match the output of most fixtures. The panel's high CRI/TLCI ratings of 96/97 provide high color accuracy and rendering, and multiple onboard and wireless control options make for easy creative adjustments. Fifteen built-in special effects are included for hue loop, CCT loop, intensity Loop, flash, pulse, storm, police car, TV, paparazzi, candle/fire, disco, bad bulb, firework, explosion, and welding. Additionally, two diffusers, a softbox, and an eggcrate are also included for modifying and adjusting the panel's output.

PavoSlim 60C/120C
Technical Data
Model PavoSlim 60C PavoSlim 120C
Rated Power 72W 150W
Input Voltage/Current DC(Battery)14.4-26V
DC(Battery)7.4V × 2
AC100-240V 50/60Hz
DC24V
DC(Battery)14.4-26V
AC100-240V 50/60Hz
CCT 2700K-7500K(G/M ± 150)
CRI Average 96
TLCI Average 97
TM-30 Rf Average 94
TM-30 Rg Average 100
SSI (3200K) 83
SSI (5600K) 74
Dimming 0-100%
LED Type RGBWW
Control On-board, Remote Controller, NANLINK APP, LumenRadio CRMX, DMX/RDM
Special Effects HUE Loop, CCT Loop, INT Loop, Flash, Pulse, Storm, Police Car, TV, Paparazzi,
Candle/Fire, Disco, Bad Bulb, Firework, Explosion and Welding
Product Size Light Fixture:
306.3 × 300.65 × 18.6mm / 12.06 × 11.84 × 0.73"

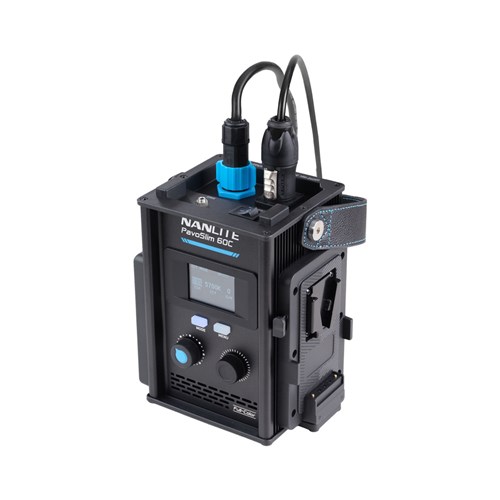

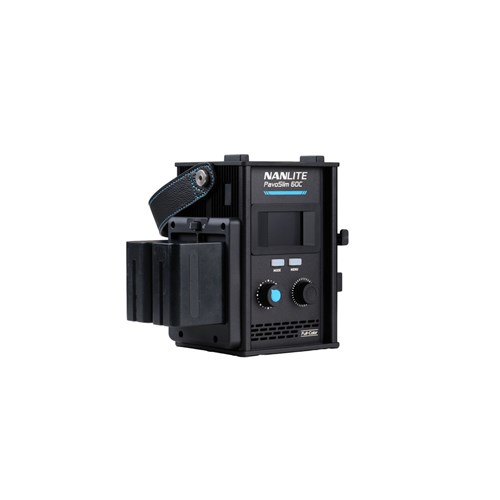

Control Unit:
146.45 × 111.48 × 175mm / 5.77 × 4.39 × 6.89"
Light Fixture:
602 × 306.3 × 18.6mm / 23.7 × 12.06 × 0.73"
Control Unit:
140.3 × 111.48 × 203mm / 5.52 × 4.39 × 7.99"
Product Weight Light Fixture:0.94kg / 2.07lb
Control Unit:1.37kg / 3.02lb
Light Fixture:1.76kg / 3.88lb
Control Unit:1.84kg / 4.06lb
Certifications RoHS,CE,UKCA,FCC,NCC,KCC,PSE,BIS
Illumination ( lux / fc )
PavoSlim 60C
Light Only
Distance 0.5M 1M 3M
2700K 20780 lux / 1930 fc 5912 lux / 549 fc 717 lux / 67 fc
3200K 22310 lux / 2073 fc 6362 lux / 591 fc 769 lux / 71 fc
5600K 24900 lux / 2313 fc 7074 lux / 657 fc 849 lux / 79 fc
7500K 23700 lux / 2202 fc 6728 lux / 625 fc 809 lux / 75 fc
R 9530 lux / 885 fc 2580 lux / 240 fc 305 lux / 28 fc
G 17520 lux / 1628 fc 4595 lux / 427 fc 544 lux / 51 fc
B 2510 lux / 233 fc 660 lux / 61 fc 78 lux / 7 fc
With Softbox and Lite Diffuser
Distance 0.5M 1M 3M
2700K 10250 lux / 952 fc 2528 lux / 235 fc 290 lux / 27 fc
3200K 11130 lux / 1034 fc 2732 lux / 254 fc 313 lux / 29 fc
5600K 12360 lux / 1148 fc 3034 lux / 282 fc 349 lux / 32 fc
7500K 11820 lux / 1098 fc 2885 lux / 268 fc 332 lux / 31 fc
R 5090 lux / 473 fc 1233 lux / 115 fc 148 lux / 14 fc
G 9604 lux / 892 fc 2308 lux / 214 fc 268 lux / 25 fc
B 1400 lux / 130 fc 334 lux / 31 fc 39 lux / 4 fc
With Softbox and Standard Diffuser
Distance 0.5M 1M 3M
2700K 5648 lux / 525 fc 1250 lux / 116 fc 138 lux / 13 fc
3200K 6161 lux / 572 fc 1356 lux / 126 fc 149 lux / 14 fc
5600K 6787 lux / 631 fc 1525 lux / 142 fc 166 lux / 15 fc
7500K 6452 lux / 599 fc 1444 lux / 134 fc 158 lux / 15 fc
R 2885 lux / 268 fc 664 lux / 62 fc 73 lux / 7 fc
G 5455 lux / 507 fc 1202 lux / 112 fc 132 lux / 12 fc
B 810 lux / 75 fc 178 lux / 17 fc 19 lux / 2 fc
PavoSlim 120C
Light Only
Distance 0.5M 1M 3M
2700K 29550 lux / 2745 fc 10500 lux / 975 fc 1388 lux / 129 fc
3200K 31750 lux / 2950 fc 11200 lux / 1040 fc 1475 lux / 137 fc
5600K 36240 lux / 3367 fc 12830 lux / 1192 fc 1675 lux / 156 fc
7500K 34450 lux / 3200 fc 12240 lux / 1137 fc 1594 lux / 148 fc
R 15500 lux / 1440 fc 5100 lux / 474 fc 641 lux / 60 fc
G 27300 lux / 2536 fc 8655 lux / 804 fc 1063 lux / 99 fc
B 3830 lux / 356 fc 1290 lux / 120 fc 156 lux / 14 fc
With Softbox and Lite Diffuser
Distance 0.5M 1M 3M
2700K 17360 lux / 1613 fc 4850 lux / 451 fc 579 lux / 54 fc
3200K 18570 lux / 1725 fc 5191 lux / 482 fc 621 lux / 58 fc
5600K 21320 lux / 1981 fc 5944 lux / 552 fc 711 lux / 66 fc
7500K 20050 lux / 1863 fc 5624 lux / 522 fc 670 lux / 62 fc
R 9150 lux / 850 fc 2573 lux / 239 fc 296 lux / 27 fc
G 16680 lux / 1550 fc 4536 lux / 421 fc 536 lux / 50 fc
B 2590 lux / 241 fc 780 lux / 72 fc 90 lux / 8 fc
With Softbox and Standard Diffuser
Distance 0.5M 1M 3M
2700K 10420 lux / 968 fc 3460 lux / 229 fc 290 lux / 27 fc
3200K 11160 lux / 1037 fc 2635 lux / 245 fc 312 lux / 29 fc
5600K 12720 lux / 1182 fc 3026 lux / 281 fc 357 lux / 33 fc
7500K 12050 lux / 1119 fc 2856 lux / 265 fc 337 lux / 31 fc
R 5650 lux / 525 fc 1334 lux / 124 fc 161 lux / 15 fc
G 10120 lux / 940 fc 2380 lux / 221 fc 281 lux / 26 fc
B 1650 lux / 153 fc 375 lux / 35 fc 53 lux / 5 fc

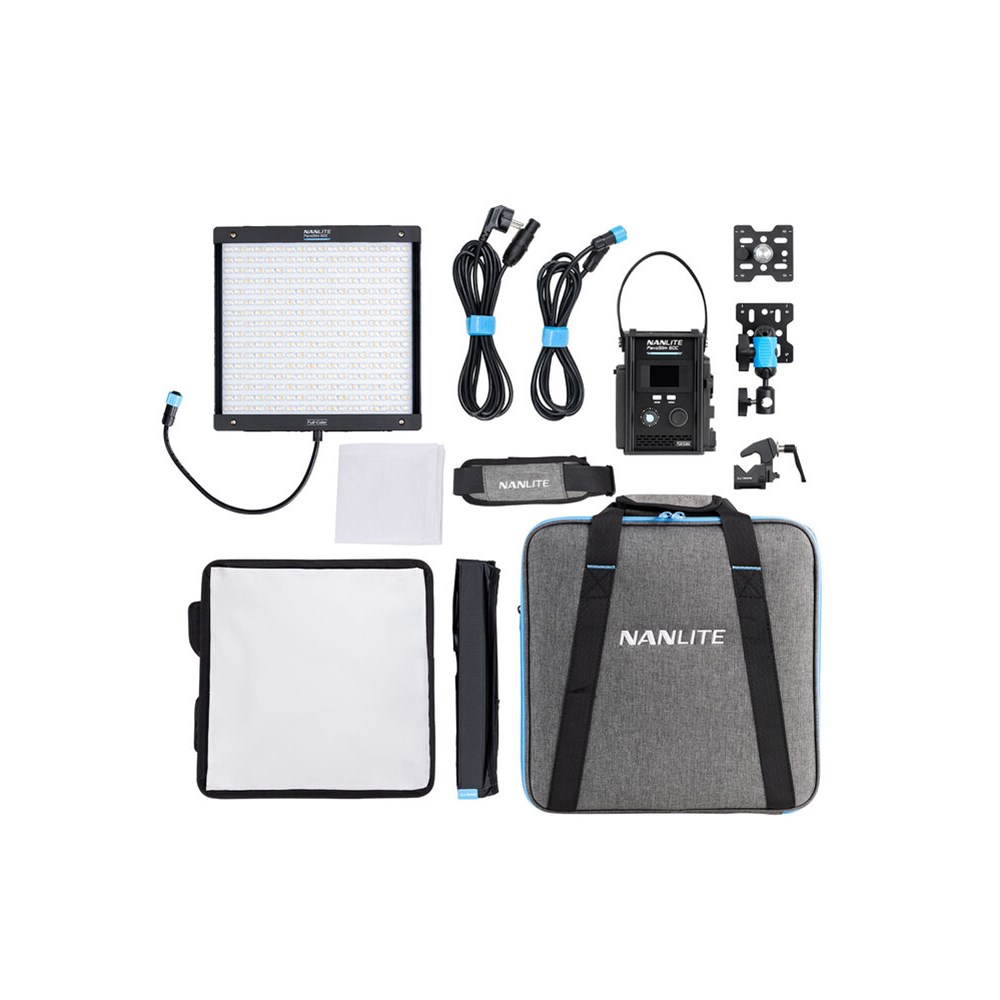

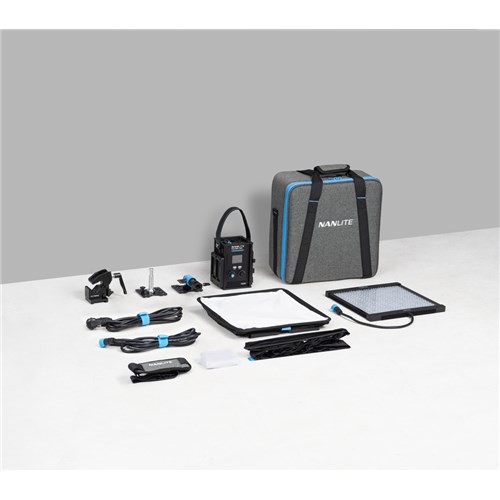

PavoSlim 60C × 1
Control Unit × 1
Universal Holder × 1
Quick Release Clamp × 1
Baby Pin Holder × 1
DC Connection Cable 2.6M × 1
AC Power Cable 4.5M × 1
Softbox × 1
Diffuser × 2
(Standard Diffuser × 1+Lite Diffuser × 1)
Eggcrate × 1

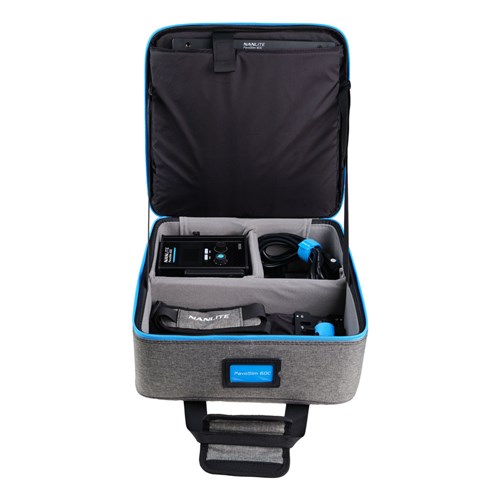

Carrying Bag × 1
User Manual × 1
