Type | Compact digital camera |
Effective pixels | 16.0 million (Image processing may reduce the number of effective pixels.) |
Image sensor | 1/2.3-in. type CMOS Total pixels: approx. 16.79 million |
Lens | NIKKOR lens with 83 x optical zoom |
Focal length | 4.3 to 357 mm (angle of view equivalent to that of 24 to 2000 mm lens in 35mm [135] format) |
f/-number | f/ 2.8 to 6.5 |
Construction | 16 elements in 12 groups (5 ED lens elements and 1 super ED lens element) |
Digital zoom magnification | Up to 4x (angle of view equivalent to that of approx. 8000 mm lens in 35mm [135] format) Up to 3.6x when recording movies with [2160/30p] (4K UHD) or [2160/25p] (4K UHD) |
Vibration reduction | Lens shift (still images) Combination of lens shift and electronic VR (movies) |
Autofocus system | Contrast-detect AF |
Focus range | [W]: Approx. 50 cm (1 ft 8 in.) to ∞ [T]: Approx. 5.0 m (16 ft 5 in.) to ∞ Macro close-up: [W]: Approx. 1 cm (0.4 in.) to ∞ [T]: Approx. 5.0 m (16 ft 5 in.) to ∞ (All distances measured from centre of front surface of lens) |
Focus-area selection | Target finding AF, face priority, manual (spot), manual (normal), manual (wide), subject tracking, centre (spot), centre (normal), centre (wide) |
Viewfinder | Electronic viewfinder, 1 cm (0.39-in.), approx. 2359k-dot OLED with the diopter adjustment function (‑3 to +3 m(*1)) |
Frame coverage (shooting mode) | Approx. 99% horizontal and vertical (compared to actual picture) |
Frame coverage (playback mode) | Approx. 100% horizontal and vertical (compared to actual picture) |
Monitor size | 8.1 cm (3.2-in.) |

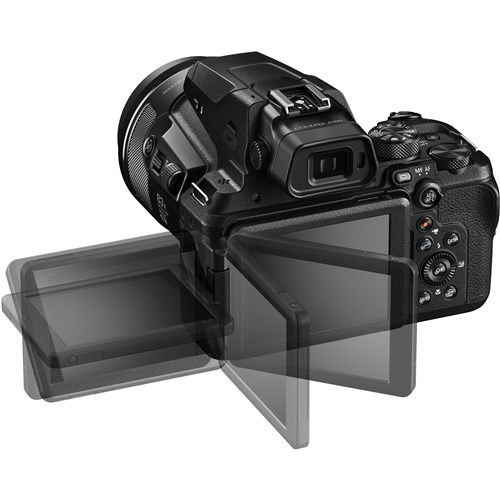

Monitor resolution | Approx. 921 k-dot, (RGB), wide viewing angle TFT LCD with anti-reflection coating and 5-level brightness adjustment, vari-angle TFT LCD |
Frame coverage (shooting mode) | Approx. 99% horizontal and vertical (compared to actual picture) |
Frame coverage (playback mode) | Approx. 100% horizontal and vertical (compared to actual picture) |
Media | SD, SDHC, SDXC |
File system | DCF and Exif 2.31 compliant |
File formats | Still images: JPEG, RAW (NRW) (Nikon’s own format) Movies: MP4 (Video: H.264/MPEG-4 AVC, Audio: AAC stereo) |
Still image | 16 M [4608x3456], 8 M [3264x2448], 4 M [2272x1704], 2 M [1600x1200], 16:9 12 M [4608x2592], 3:2 14 M [4608x3072], 1:1 12 M [3456x3456] |
Movie | 2160/30p (4K UHD), 2160/25p (4K UHD), 1080/30p, 1080/25p, 1080/60p, 1080/50p, 720/30p, 720/25p, 720/60p, 720/50p, HS 480/4x, HS 720/2x, HS 1080/0.5x |
ISO sensitivity (Standard output sensitivity) | ISO 100 to 1600 [100-400], [100-800], [100-1600] (default setting), [100-3200], [100-6400], [100], [200], [400], [800], [1600], [3200], and [6400] are available when using P, S, A, M, U, or Movie manual mode |
Metering mode | Matrix, centre-weighted, spot |
Exposure control | Programmed auto exposure with flexible program, shutter-priority auto, aperture-priority auto, manual, exposure bracketing, exposure compensation (–2.0 to +2.0 EV in steps of 1/3 EV) |
Shutter type | Mechanical and CMOS electronic shutter |
Shutter speed | 1/2000 to 1 s In P, A mode, 1/2000 to 2 s (at ISO sensitivity [100-1600]) or 1/2000 to 30 s (when ISO sensitivity is fixed at [100]) In S, M mode, 1/4000 (at wide-angle position, with largest f-number setting (smallest aperture)) to 30 s (can be set at ISO sensitivity 3200 or lower) Bulb and Time setting (can be set when ISO sensitivity is 1600 or lower in M mode): Up to 60 seconds When recording movies, 1/8000 to 1/30 s (at Frame rate [30 fps (30p/60p)]) or 1/8000 to 1/25 s (at Frame rate [25 fps (25p/50p)]) |
Flash sync speed | Synchronizes with all shutter speeds |
Type | Electronically-controlled 6-blade iris diaphragm |
Range | 10 steps of 1/3 EV (W) (A, M mode) |
Built-in flash | Yes |
Range (approx.) (ISO sensitivity: [100-1600]) | [W]: 0.5 to 11.5 m (1 ft 8 in. to 37 ft) [T]: 5.0 to 7.0 m (16 ft 5 in. to 22 ft) |
Control | TTL auto flash with monitor pre-flashes |
Flash exposure compensation | In steps of 1/3 EV in the range between –2 and +2 EV |
Accessory shoe | ISO 518 hot-shoe with sync and data contacts and safety lock |
USB connector | Micro-USB connector (Do not use any USB cable other than the included UC-E21 USB Cable.), Hi-Speed USB |
HDMI output connector | HDMI micro connector (Type D) |
External microphone connector | Stereo mini-pin jack (3.5 mm diameter; plug-in power supported) |
Accessory terminal | Compatible with the following accessories (available separately): MC-DC2 Remote Cord WR-R10/WR-1 Wireless Remote Controller |
Standards | IEEE 802.11b/g (standard wireless LAN protocol) |
Operating frequency | 2412 to 2462 MHz (1 to 11 channels) |
Maximum output power | 9.2 dBm (EIRP) |
Authentication | Open system, WPA2-PSK |
Communication protocols | Bluetooth Specification Version 4.1 |
Operating frequency | Bluetooth: 2402 to 2480 MHz Bluetooth Low Energy: 2402 to 2480 MHz |
Maximum output power | Bluetooth: 7.2 dBm (EIRP) Bluetooth Low Energy: 7.2 dBm (EIRP) |
Power sources | One EN-EL20a Rechargeable Li-ion Battery (included) EH-5d AC Adapter; requires EP-5C Power Connector (available separately) |
Charging time | Approx. 3 h (when using EH-73P/EH-73PCH Charging AC Adapter and when no charge remains) |
Battery life of still shooting | Approx. 290 shots when using EN-EL20a |
Battery life of movies (actual battery life for recording) | Approx. 1 h 20 min when using EN-EL20a |
Tripod socket | 1/4 (ISO 1222) |
Dimensions (WxHxD) | Approx. 140.2 x 109.6 x 149.8mm (excluding projections) |
Weight | Approx. 1005g (including battery and memory card) |
Temperature | 0°C to 40°C |
Humidity | 85% or less (no condensation) |
Supplied Accessories | Strap, LC-67 Lens Cap, EN-EL20a Rechargeable Li-ion Battery, EH-73P Charging AC Adapter (A plug adapter is attached depending on the country or region of purchase. The shape of the plug adapter varies with the country or region of purchase), UC-E21 USB Cable, HN-CP20 Lens Hood |
