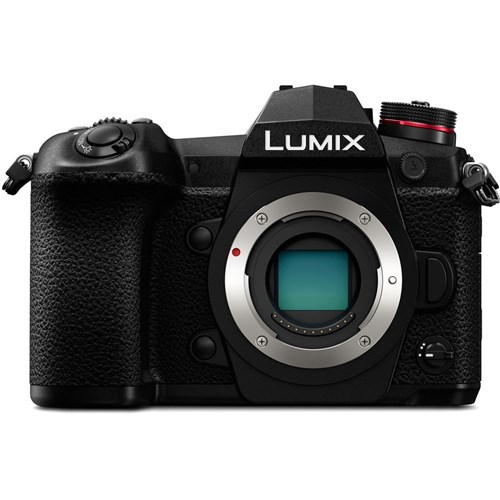

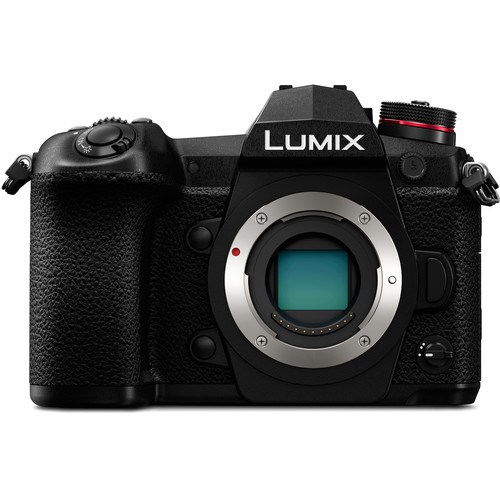

| Lens Mount |
Micro Four Thirds
|
| Sensor Resolution |
Actual: 21.77 Megapixel
|
| Effective: 20.3 Megapixel (5184 x 3888) |
| Image Sensor |
17.3 x 13 mm (Four Thirds) MOS
|
| Sensor Crop (35mm Equivalent) |
Crop Factor: 2x
|
| Additional Modes: 2.8x/4x |
| *Additional Crop Occurs in Select Video Modes |
| Image Stabilization |
Sensor-Shift, 5-Axis
|
| Built-In ND Filter |
No
|
| Capture Type |
Stills & Video
|
| Shutter Type |
Mechanical Focal Plane Shutter and Electronic Rolling Shutter
|
| Shutter Speed |
Mechanical Shutter
|
| 1/8000 to 60 Seconds |
| Electronic Front Curtain Shutter |
| 1/2000 to 60 Seconds |
| Up to 30 Minutes in Bulb Mode |
| Electronic Shutter |
| 1/32000 to 1 Second |
| 1/16000 to 1/25 Second in Movie Mode |
| Bulb/Time Mode |
Bulb Mode
|
| ISO Sensitivity Range |
|
| 200 to 25,600 in Manual, Auto Mode (Extended: 100) |
| Video |
| 200 to 12,800 in Manual, Auto Mode (Extended: 100) |
| Metering Method |
Center-Weighted Average, Highlight Weighted, Multi, Spot
|
| Precise Scan Rate Control |
No
|
| Exposure Modes |
Aperture Priority, Auto, Manual, Program, Shutter Priority
|
| Exposure Compensation |
-5 to +5 EV (1/3 EV Steps)
|
| Metering Range |
0 to 18 EV
|
| White Balance |
2500 to 10,000K
|
| Presets: AWB, Auto, Cloudy, Color Temperature, Color Temperature Filter, Daylight, Flash, Incandescent, Shade, White Set 1, White Set 2, White Set 3, White Set 4 |
| Continuous Shooting |
Mechanical Shutter
|
| Up to 12 fps at 20.3 MP for up to 50 Frames (Raw) / 50 Frames (JPEG) |
| Electronic Shutter |
| Up to 60 fps at 20.3 MP for up to 50 Frames (Raw) / 50 Frames (JPEG) |
| Interval Recording |
Yes
|
| Self-Timer |
2/10-Second Delay
|
| Image Sizes |
4:03
|
| 80.5 MP (10,368 x 7776) *Via In-Camera Pixel-Shift |
| 40 MP (7296 x 5472) *Via In-Camera Pixel-Shift |
| 20 MP (5184 x 3888) |
| 10 MP (3712 x 2784) |
| 5 MP (2624 x 1968) |
| 3:02 |
| 71.5 MP (10,368 x 6912) *Via In-Camera Pixel-Shift |
| 35.5 MP (7296 x 4864) *Via In-Camera Pixel-Shift |
| 17 MP (5184 x 3456) |
| 9 MP (3712 x 2480) |
| 4.5 MP (2624 x 1752) |
| 16:09 |
| 60.5 MP (10,368 x 5832) *Via In-Camera Pixel-Shift |
| 30 MP (7296 x 4104) *Via In-Camera Pixel-Shift |
| 14.5 MP (5184 x 2920) |
| 8 MP (3840 x 2160) |
| 2 MP (1920 x 1080) |
| 1:01 |
| 60.5 MP (7776 x 7776) *Via In-Camera Pixel-Shift |
| 30 MP (5472 x 5472) *Via In-Camera Pixel-Shift |
| 14.5 MP (3888 x 3888) |
| 7.5 MP (2784 x 2784) |
| 3.5 MP (1968 x 1968) |
| Aspect Ratio |
1:1, 3:2, 4:3, 16:9
|
| Image File Format |
JPEG, Raw
|
| Internal Recording Modes |
AVCHD/MOV/MP4 4:2:2/4:2:0 8/10-Bit
|
| UHD 4K (3840 x 2160) at 23.98/25/29.97/47.95/59.94 fps [100 to 150 Mb/s VBR] |
| 1920 x 1080p at 29.97/59.94/180 fps [20 to 28 Mb/s VBR] |
| 1920 x 1080i at 59.94 fps [17 to 24 Mb/s VBR] |
| External Recording Modes |
4:2:2 8/10-Bit via HDMI
|
| UHD 4K (3840 x 2160) |
| 1920 x 1080 |
| Fast-/Slow-Motion Support |
Yes
|
| Recording Limit |
Up to 30 Minutes
|
| Up to 10 Minutes in 4K HFR |
| Broadcast Output |
NTSC
|
| IP Streaming |
No
|
| Built-In Microphone |
Stereo
|
| Audio Recording |
MOV: LPCM Audio
|
| MP4: AAC Audio |
| Media/Memory Card Slot |
Dual Slot: SD/SDHC/SDXC (UHS-II)
|
| Video I/O |
1x HDMI (Unspecified Signal) Output
|
| Audio I/O |
1x 1/8" / 3.5 mm TRS Stereo Headphone Output
|
| 1x 1/8" / 3.5 mm TRS Stereo Microphone Input |
| Power I/O |
1x Micro-USB Input/Output
|
| Other I/O |
1x Micro-USB (USB 3.2 / 3.1 Gen 1) Input/Output (Shared with Power Input)
|
| 1x 2.5 mm Sub-Mini Control Input |
| Wireless |
Wi-Fi 5 (802.11ac), Bluetooth 4.2
|
| Mobile App Compatible |
Yes: Android & iOS
|
| App Name: Panasonic LUMIX Sync |
| Functionality: Access Stored Files, Remote Control, View Live Feed |
| Display Size |
3.0"
|
| Resolution |
1,040,000 Dot
|

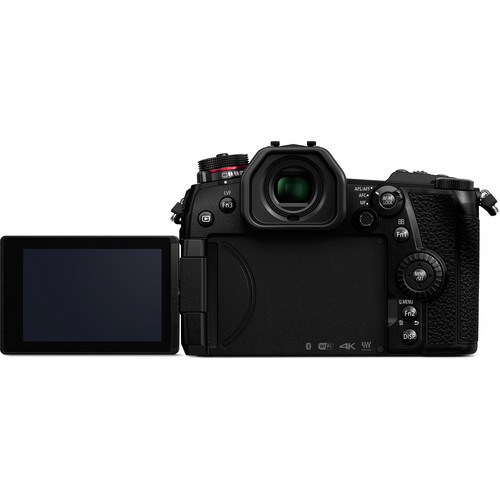

| Display Type |
Articulating Touchscreen LCD
|

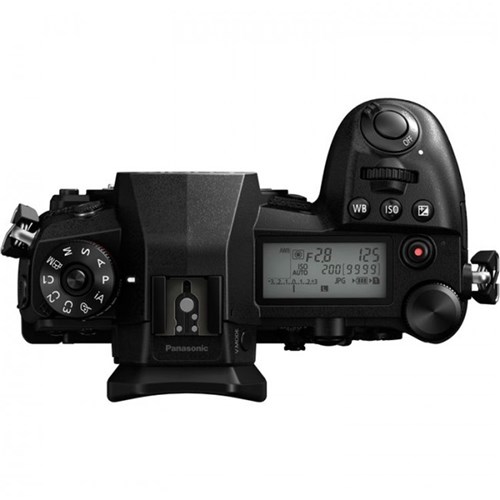

| Secondary Display |
Top: Status Display
|
| Type |
Built-In Electronic
|
| Resolution |
3,680,000 Dot
|
| Eye Point |
21 mm
|
| Coverage |
100%
|
| Magnification |
Approx. 0.83x
|
| Diopter Adjustment |
-4 to +3
|
| Focus Type |
Auto and Manual Focus
|
| Focus Mode |
Continuous-Servo AF, Flexible, Manual Focus, Single-Servo AF
|
| Autofocus Points |
Contrast Detection: 225
|
| Autofocus Sensitivity |
-4 to +18 EV
|
| Built-In Flash/Light |
No
|
| Flash Modes |
Auto, Auto/Red-Eye Reduction, Forced On, Forced On/Red-Eye Reduction, Off, Slow Sync, Slow Sync/Red-Eye Reduction
|
| Maximum Sync Speed |
1/250 Second
|
| Flash Compensation |
-3 to +3 EV (1/3 EV Steps)
|
| Dedicated Flash System |
TTL
|
| External Flash Connection |
Shoe Mount, PC Terminal
|
| Operating Temperature |
14 to 104°F / -10 to 40°C
|
| Operating Humidity |
10 to 80%
|
| Battery Type |
1x DMW-BLF19 Rechargeable Lithium-Ion, 7.2 VDC, 1860 mAh
|
| Shoe Mount |
1x Hot Shoe
|
| Tripod Mounting Thread |
1x 1/4"-20 Female (Bottom)
|
| Material of Construction |
Magnesium Alloy
|
| Dimensions (W x H x D) |
136.9 x 97.3 x 91.6 mm
|
| Weight |
658 g (With Battery, Recording Media)
|
| 579 g (Body Only) |
