TYPE |
Type |
Digital Single Lens Mirrorless camera |
Lens mount |
Micro Four Thirds mount |
IMAGE SENSOR |
Type |
Live MOS sensor (17.3 x 13.0 mm) |
Camera effective pixels / Total pixels |
25.21 megapixels / 26.52 megapixels |
AR (Anti Reflection) coating |
Yes |
Aspect ratio / Color filter |
4:3 / Primary color filter |
Dust reduction system |
Image sensor shift type |
LATITUDE |
13+ stops (V-Log) (Sensor output is 60fps or less) 12+ stops (V-Log) (Sensor output is 61fps or higher) |
STILL IMAGE |
Recording file format |
JPEG (DCF, Exif 2.31), RAW |
Aspect ratio |
4:3 / 3:2 / 16:9 / 1:1 |
File size (Pixels) |
4:3 |
5776x4336(L) / 4096x3072(M) / 2944x2208(S) / 11552x8672(XL)* / 8192x6144(LL)* *High Resolution Mode. |
3:2 |
5776x3848(L) / 4096x2728(M) / 2944x1960(S) / 11552x7696(XL)* / 8192x5464(LL)* *High Resolution Mode. |
16:9 |
5776x3248(L) / 4096x2304(M) / 2944x1656(S) / 11552x6496(XL)* / 8192x4608(LL)* *High Resolution Mode. |
1:1 |
4336x4336(L) / 3072x3072(M) / 2208x2208(S) / 8672x8672(XL)* / 6144x6144(LL)* *High Resolution Mode. |
Image quality |
RAW / RAW+Fine / RAW+Standard / Fine / Standard (High Resolution mode: Combined / RAW / RAW+Fine / Fine) |
Color space |
sRGB, AdobeRGB |
MOTION PICTURE |
Recording file format |
MOV: H.264/MPEG-4 AVC, H.265/HEVC, Apple ProRes MP4: H.264/MPEG-4 AVC, H.265/HEVC |
Audio format |
MOV: LPCM (2ch 48kHz/24-bit, 96kHz/24-bit*) (4ch 48kHz/24-bit**, 96kHz/24-bit**) MP4: AAC (2ch 48kHz/16-bit) *When attaching Φ3.5mm microphone or DMW-XLR1 (sold separately). **When attaching DMW-XLR1 (sold separately). |
System frequency |
59.94Hz / 50.00Hz / 24.00Hz |
Image area of video |
FULL / PIXEL/PIXEL |
MOV (*1) (*2)
*HLG is selectable. |
59.94Hz |
[5.8K] 5760x4320 (4:3) |
29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)* 23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)* *Image Area of Video is set to FULL during this recording mode. |
[5.7K] 5728x3024 (17:9) |
59.94p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)* 47.95p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)* 29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)* 23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)* *Image Area of Video is set to FULL during this recording mode. |
[4.4K] 4352x3264 (4:3) |
59.94p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)* 47.95p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)* *Image Area of Video is set to PIXEL/PIXEL during this recording mode. |
[C4K] 4096x2160 |
119.88p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)* 59.94p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)** 59.94p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 59.94p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 47.95p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)** 47.95p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 47.95p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required on a USB-SSD. **External USB-SSD recording. |
[4K] 3840x2160 |
119.88p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)* 59.94p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)** 59.94p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 59.94p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 47.95p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)** 47.95p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 47.95p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required on a USB-SSD. **External USB-SSD recording. |
[FHD] 1920x1080 |
239.76p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*/** 239.76p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*/*** 239.76p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*/*** 119.88p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*** 119.88p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*** 119.88p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*** 59.94p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 59.94p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 47.95p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 47.95p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 47.95p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 29.97p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 29.97p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 29.97p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 23.98p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 23.98p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 23.98p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) *Image Area of Video is set to FULL during this recording mode. **External USB-SSD recording. An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required. ***An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required on a USB-SSD. |
50.00Hz |
[5.8K] 5760x4320 (4:3) |
25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)* *Image Area of Video is set to FULL during this recording mode. |
[5.7K] 5728x3024 (17:9) |
50.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)* 25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)* *Image Area of Video is set to FULL during this recording mode. |
[4.4K] 4352x3264 (4:3) |
50.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)* *Image Area of Video is set to PIXEL/PIXEL during this recording mode. |
[C4K] 4096x2160 |
100.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)* 50.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)** 50.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 50.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required on a USB-SSD. **External USB-SSD recording. |
[4K] 3840x2160 |
100.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)* 50.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)** 50.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 50.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required on a USB-SSD. **External USB-SSD recording. |
[FHD] 1920x1080 |
200.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*/** 200.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*/*** 200.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*/*** 100.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*** 100.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*** 100.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*** 50.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 50.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 25.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 25.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 25.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) *Image Area of Video is set to FULL during this recording mode. **External USB-SSD recording. An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required. ***An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required on a USB-SSD. |
24.00Hz |
[5.8K] 5760x4320 (4:3) |
24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)* *Image Area of Video is set to FULL during this recording mode. |
[5.7K] 5728x3024 (17:9) |
48.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)* 24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)* *Image Area of Video is set to FULL during this recording mode. |
[4.4K] 4352x3264 (4:3) |
48.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)* *Image Area of Video is set to PIXEL/PIXEL during this recording mode. |
[C4K] 4096x2160 |
120.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)* 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required on a USB-SSD. |
[4K] 3840x2160 |
120.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)* 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required on a USB-SSD. |
[FHD] 1920x1080 |
120.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)* 120.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)* 120.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)* 24.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 24.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 24.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required on a USB-SSD. |
MP4 (*1) |
59.94Hz |
[4K] 3840x2160 |
59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)* 29.97p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)* 23.98p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)* 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) *HLG is selectable. |
[FHD] 1920x1080 |
59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) |
50.00Hz |
[4K] 3840x2160 |
50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)* 25.00p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)* 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) *HLG is selectable. |
[FHD] 1920x1080 |
50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) |
24.00Hz |
- |
- |
ProRes (*1) (*2) |
59.94Hz |
[5.7K] 5728x3024 (17:9) |
29.97p, 1.9Gbps (ProRes 422 HQ) / 1.3Gbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)* 23.98p, 1.5Gbps (ProRes 422 HQ) / 1.0Gbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)* *External USB-SSD recording. Image Area of Video is set to FULL during this recording mode. |
[C4K] 4096x2160 |
59.94p, 1.9Gbps (ProRes 422 HQ) / 1.3Gbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)* 29.97p, 972Mbps (ProRes 422 HQ) / 648Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)* 23.98p, 778Mbps (ProRes 422 HQ) / 519Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)* *External USB-SSD recording. |
[FHD] 1920x1080 |
59.94p, 454Mbps (ProRes 422 HQ) / 302Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM) 29.97p, 227Mbps (ProRes 422 HQ) / 151Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM) 23.98p, 181Mbps (ProRes 422 HQ) / 121Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM) |
50.00Hz |
[5.7K] 5728x3024 (17:9) |
25.00p, 1.6Gbps (ProRes 422 HQ) / 1.1Gbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)* *External USB-SSD recording. Image Area of Video is set to FULL during this recording mode. |
[C4K] 4096x2160 |
50.00p, 1.6Gbps (ProRes 422 HQ) / 1.1Gbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)* 25.00p, 811Mbps (ProRes 422 HQ) / 541Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)* *External USB-SSD recording. |
[FHD] 1920x1080 |
50.00p, 378Mbps (ProRes 422 HQ) / 252Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM) 25.00p, 189Mbps (ProRes 422 HQ) / 126Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM) |
24.00Hz |
[5.7K] 5728x3024 (17:9) |
24.00p, 1.5Gbps (ProRes 422 HQ) / 1.0Gbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)* *External USB-SSD recording. Image Area of Video is set to FULL during this recording mode. |
[C4K] 4096x2160 |
24.00p, 779Mbps (ProRes 422 HQ) / 519Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)* *External USB-SSD recording. |
[FHD] 1920x1080 |
24.00p, 182Mbps (ProRes 422 HQ) / 121Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM) |
SLOW & QUICK |
MOV (*1)
*HLG is selectable. |
59.94Hz |
[C4K] 4096x2160 |
59.94p (Maximum output of sensor is 120fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)* 29.97p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)* 29.97p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)** 23.98p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)* 23.98p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)** *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record video of 61fps or higher on a USB-SSD. **External USB-SSD recording. |
[4K] 3840x2160 |
59.94p (Maximum output of sensor is 120fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)* 29.97p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)* 29.97p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)** 23.98p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)* 23.98p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)** *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record video of 61fps or higher on a USB-SSD. **External USB-SSD recording. |
[FHD] 1920x1080 |
59.94p (Maximum output of sensor is 300fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*/** 59.94p (Maximum output of sensor is 240fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*/*** 29.97p (Maximum output of sensor is 300fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*/** 29.97p (Maximum output of sensor is 240fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*/*** 23.98p (Maximum output of sensor is 300fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*/** 23.98p (Maximum output of sensor is 240fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*/*** *Maximum output of sensor is 120fps when Image Area of Video is set to PIXEL/PIXEL. **An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record video of 61fps or higher on a USB-SSD. ***External USB-SSD recording. An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record video of 61fps or higher. |
50.00Hz |
[C4K] 4096x2160 |
50.00p (Maximum output of sensor is 120fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)* 25.00p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)* 25.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)** *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record video of 61fps or higher on a USB-SSD. **External USB-SSD recording. |
[4K] 3840x2160 |
50.00p (Maximum output of sensor is 120fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)* 25.00p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)* 25.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)** *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record video of 61fps or higher on a USB-SSD. **External USB-SSD recording. |
[FHD] 1920x1080 |
50.00p (Maximum output of sensor is 300fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*/** 50.00p (Maximum output of sensor is 240fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*/*** 25.00p (Maximum output of sensor is 300fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*/** 25.00p (Maximum output of sensor is 240fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*/*** *Maximum output of sensor is 120fps when Image Area of Video is set to PIXEL/PIXEL. **An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record video of 61fps or higher on a USB-SSD. ***External USB-SSD recording. An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record video of 61fps or higher. |
24.00Hz |
[C4K] 4096x2160 |
24.00p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)* 24.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)** *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record video of 61fps or higher on a USB-SSD. **External USB-SSD recording. |
[4K] 3840x2160 |
24.00p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)* 24.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)** *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record video of 61fps or higher on a USB-SSD. **External USB-SSD recording. |
[FHD] 1920x1080 |
24.00p (Maximum output of sensor is 300fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*/** 24.00p (Maximum output of sensor is 240fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*/*** *Maximum output of sensor is 120fps when Image Area of Video is set to PIXEL/PIXEL. **An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record video of 61fps or higher on a USB-SSD. ***External USB-SSD recording. An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record video of 61fps or higher. |
EXTERNAL USB-SSD RECORDING |
Yes (ON / OFF) |
VIEWFINDER |
Type |
OLED Live View Finder |
Pixels |
Approx. 3.68 million dots |
Field of view / Magnification |
Approx. 100% / Approx. 1.6x / 0.8x (35mm camera equivalent) with 50 mm lens at infinity; -1.0 m-1, when the aspect ratio is set to 4:3 |
Eye point / Diopter adjustment |
Approx. 21 mm at infinity; -1.0 m-1 / -4.0 - +2.0 (dpt) |
Eye sensor |
Yes |
Display speed |
120fps / 60fps |

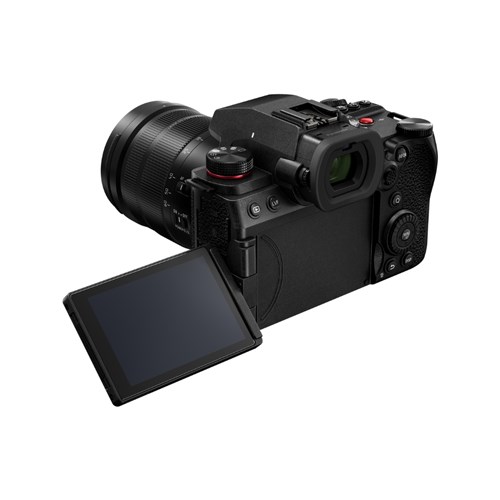

REAR MONITOR |
Type |
TFT LCD monitor with static touch control |
Monitor size |
Free-angle, 3.0-inch (7.6cm), 3:2 aspect |
Pixels |
Approx. 1.84 million dots |
Field of view |
Approx. 100% |
FOCUS (*3) |
Type |
Phase Detection AF system / Contrast AF system |
DFD technology |
Yes |
Focus mode |
AFS (Single) / AFC (Continuous) / MF |
AF mode |
Tracking / Full Area AF / Zone (Horizontal/Vertical) / Zone / 1-Area+ / 1-Area / Pinpoint *Automatic Detection can be turned ON to switch between Human / Animal / Car / Motorcycle. Except when Pinpoint is set. |
AF detective range |
EV -4 - 18 (F2.0, ISO100 equivalent, AFS) |
AF custom setting |
AF Sensitivity, AF Area Switching Sensitivity, Moving Object Prediction |
AF assist light |
Yes |
AF lock |
Set the Fn button in custom menu to AF lock |
Focus ring control |
Nonlinear / Linear* (90°/ 120°/ 150°/ 180°/ 210°/ 240°/ 270°/ 300°/ 330°/ 360°/ 720°/ 1080°/ Maximum) *When a compatible lens is attached. |
Others |
AF-ON, AF-ON: Near Shift, AF-ON: Far Shift, Focus Limiter, Focus Peaking, 1-Area AF Moving Speed, AF Micro Adjustment, Continuous AF (during motion picture recording), Focus/Shutter Priority, Focus Switching for Vert/Hor, AF/AE Lock Hold, AF+MF, MF Assist, MF Guide, Focus Ring Lock, Show/Hide AF Mode, AF-Point Scope, Shutter AF, Half Press Shutter, Quick AF, Eye Sensor AF, Loop Focus Frame, Enlarged Live Display (Video), Touch Shutter, Touch AF/AE Function, Touch Pad AF, Lens Focus Resume |
EXPOSURE CONTROL |
Light metering system |
1,728-zone multi-pattern sensing system |
Light metering mode |
Multiple / Center Weighted / Spot / Highlight Weighted |
Metering range |
EV0-18 (F2.0 lens, ISO100 equivalent) |
Mode dial |
Program AE (P) / Aperture Priority AE (A) / Shutter Priority AE (S) / Manual Exposure (M) / Creative Video (P/A/S/M)* / Slow&Quick / Custom 1, 2, 3 / Intelligent Auto *The same exposure operations as P/A/S/M mode is available. |
Exposure compensation |
1/3 EV step ±5EV (±3EV for motion picture) |
ISO sensitivity (Standard output sensitivity) |
Still image |
[Normal] Auto / 50 (Extended ISO) / 100-25600
[V-Log] Auto / 125 (Extended ISO) / 500-12800
*Switchable between 1/3 or 1 EV step. |
Motion picture |
[Normal] Sensor output is 60fps or less (Base ISO 100): Auto / 50 (Extended ISO) / 100-12800 Sensor output is 61fps or higher (Base ISO 100): Auto / 50 (Extended ISO) / 100-3200 / 4000-12800 (Extended ISO)
[V-Log] Sensor output is 60fps or less (Base ISO 500): Auto / 125-400 (Extended ISO) / 500-12800 Sensor output is 61fps or higher (Base ISO 250): Auto / 125-200 (Extended ISO) / 250-3200 / 4000-12800 (Extended ISO)
[Hybrid Log Gamma] Sensor output is 60fps or less (Base ISO 250): Auto / 250-12800 Sensor output is 61fps or higher (Base ISO 250): Auto / 250-3200 / 4000-12800 (Extended ISO)
*Switchable between 1/3 or 1 EV step. |
ISO Auto |
Still image |
[Normal] Minimum: 100-12800 Max: Auto / 200-25600
[V-Log] Minimum: 500-6400 Max: Auto / 800-12800 |
Motion picture |
[Normal] Minimum: Sensor output is 60fps or less: 100-6400 Sensor output is 61fps or higher: 100-1600 Max: Sensor output is 60fps or less: Auto / 200-12800 Sensor output is 61fps or higher: Auto / 200-3200
[V-Log] Minimum: Sensor output is 60fps or less: 500-6400 Sensor output is 61fps or higher: 250-1600 Max: Sensor output is 60fps or less: Auto / 800-12800 Sensor output is 61fps or higher: Auto / 400-3200
[Hybrid Log Gamma] Minimum: Sensor output is 60fps or less: 250-6400 Sensor output is 61fps or higher: 250-1600 Max: Sensor output is 60fps or less: Auto / 400-12800 Sensor output is 61fps or higher: Auto / 400-3200 |
AE lock |
Set the Fn button in custom menu to AE lock |
IMAGE STABILIZATION SYSTEM |
B.I.S. (5-axis / 8.0-stop*) *Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=60mm (35mm camera equivalent f=120mm) when H-ES12060 is used.]
Dual I.S. 2 (7.5-stop**) **Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=140mm (35mm camera equivalent f=280mm) when H-FSA14140 is used.] |
WHITE BALANCE |
White balance |
AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2, 3, 4 / Color temperature setting 1, 2, 3, 4 |
White balance adjustment |
Blue/Amber bias, Magenta/Green bias |
Color temperature setting |
2500-10000K in 100K |
SHUTTER |
Type |
Focal-plane shutter |
Shutter speed |
Still image: Bulb (Max. 30 minutes), 1/8,000 - 60 Electronic front curtain shutter: Bulb (Max. 30 minutes), 1/2,000 - 60 Electronic shutter: Bulb (Max. 60 sec), 1/32,000 - 60 Motion picture: 1/25,000 - 1/25 Creative Video M mode / MF mode: 1/25,000 - 1/8 |
Self timer |
10sec, 3 images / 2sec / 10sec / Custom Time |
Remote control |
Remote control by DMW-RS2 (sold separately) |
Silent mode / Shutter type |
Yes / Yes (Auto / Mechanical / Electronic front curtain / Electronic / Electronic+NR) |
BRACKET |
AE bracket |
3, 5, 7 images in 1/3, 2/3 or 1 EV step, max. ±3 EV, single/burst |
Aperture bracket |
3, 5 or all positions |
Focus bracket |
1 to 999 images, focus steps can be set in 10 levels |
White balance bracket |
3 images in blue/amber axis or in magenta/green axis, color temperature setting |
BURST SHOOTING |
Burst speed |
Mechanical shutter |
H: 14 frames/sec (AFS/MF), 10 frames/sec (AFC) (with Live View) M: 6 frames/sec (AFS/AFC/MF) (with Live View) L: 2 frames/sec (AFS/AFC/MF) (with Live View) |
Electronic front curtain shutter |
H: 14 frames/sec (AFS/MF), 9 frames/sec (AFC) (with Live View) M: 6 frames/sec (AFS/AFC/MF) (with Live View) L: 2 frames/sec (AFS/AFC/MF) (with Live View) |
Electronic shutter |
SH75: 75 frames/sec (AFS/MF) SH60: 60 frames/sec (AFS/AFC/MF) SH20: 20 frames/sec (AFS/AFC/MF) SH75 PRE: 75 frames/sec (AFS/MF) SH60 PRE: 60 frames/sec (AFS/AFC/MF) SH20 PRE: 20 frames/sec (AFS/AFC/MF) H: 14 frames/sec (AFS/MF), 9 frames/sec (AFC) (with Live View) M: 6 frames/sec (AFS/AFC/MF) (with Live View) L: 2 frames/sec (AFS/AFC/MF) (with Live View) |
Number of recordable images |
H/M/L* RAW+JPEG: More than 160 images RAW: More than 170 images JPEG: More than 200 images *Until the burst shooting speed slows. When recording is performed under the test conditions specified by Panasonic. *When using a card with SD Speed Class with "UHS-II UHS Speed Class 3 (U3)".
SH RAW / RAW+JPEG / JPEG: 200 images |
FLASH |
Flash type |
TTL External Flash (sold separately) |
Flash mode |
Auto* / Auto/Red-eye Reduction* / Forced On / Forced On/Red-eye Reduction / Slow Sync. / Slow Sync./Red-eye Reduction / Forced Off *For iA only. |
Flash synchronization |
1st Curtain Sync, 2nd Curtain Sync. |
Flash output adjustment |
1/3EV step ±3EV |
Synchronization speed |
Less than 1/250 second |
Wireless control |
Yes (When using DMW-FL200L / FL360L / FL580L (sold separately)), Wireless Channel: 1ch/2ch/3ch/4ch |
EXTRA TELE CONVERSION |
|
2.0x (EX S), 1.4x (EX M) *Only for still image recording. |
COLOR SETTINGS |
Photo Style |
Photo Style |
Standard / Vivid / Natural / L. Classic Neo / Flat / Landscape / Portrait / Monochrome / L. Monochrome / L. Monochrome D / L. Monochrome S / LEICA Monochrome / Cinelike D2 / Cinelike V2 / Like709 / V-Log / REAL TIME LUT / Hybrid Log Gamma / My Photo Style 1-4 (5-10)* *Set to ON from Show/Hide Photo Style to select. |
Picture adjustment |
Contrast / Highlight / Shadow / Saturation / Color Tone / Hue / Filter Effect / Grain Effect / Color Noise / Sharpness / Noise Reduction / ISO / WB / LUT *Adjustable settings vary depending on the Photo Style mode. |
Filter |
Expressive / Retro / Old Days / High Key / Low Key / Sepia / Cross Process / Bleach Bypass |
LUT Library |
Vlog_709 / Set 1-10 *REAL TIME LUT in Photo Style, Apply LUT in Fn button, Apply LUT in RAW Processing, LUT View Assist in V-Log View Assist, LUT can be applied from these settings. |
MOTION PICTURE FUNCTION |
Time lapse shot |
Yes |
Stop motion animation |
Yes |
SS/Gain operation |
Shutter Duration/ISO / Angle/ISO / Shutter Duration/dB |
Luminance level |
8-bit: 0-255 / 16-235 / 16-255 10-bit: 0‒1023 / 64‒940 / 64‒1023 |
Synchro scan |
Yes |
Master pedestal level |
31 steps |
Color bars / Test tone |
Yes (SMPTE / EBU / ARIB) / Yes |
LUT view assist |
Supported file types: .vlt, .cube Monitor / HDMI |
HLG view assist |
Monitor (MODE1 / MODE2 / OFF) / HDMI (AUTO / MODE1 / MODE2 / OFF) |
Anamorphic desqueeze display |
2.0x / 1.8x / 1.5x / 1.33x / 1.30x / OFF |
Wave form monitor / Vectorscope |
Selectable |
Knee control |
Yes (in Like709 mode) |
Red REC frame indicator |
ON / OFF |
VERTICAL POSITION INFORMATION |
Still image / Motion picture (ON/OFF) |
LEVEL GAUGE |
|
Yes |
FUNCTION BUTTON |
REC |
Exposure Comp. / Sensitivity / White Balance / Photo Style / Apply LUT / Metering Mode / Aspect Ratio / Picture Quality / Picture Size / 1 Shot Spot Metering / Long Exposure NR / Min. Shutter Speed / 1 Shot RAW+JPG / i.Dynamic Range / Filter Effect / One Push AE / Touch AE / AWB Lock / Exposure Mode / Synchro Scan / AF Mode / AF Detection Setting / Detecting Subject / AF Custom Setting(Photo) / AF Custom Setting(Video) / Focus Limiter / Focus Limiter Range Set / Focus Peaking / Focus Peaking Sensitivity / Focus Frame Moving Speed / Focus Ring Lock / AE LOCK / AF LOCK / AF/AE LOCK / AF-ON / AF-ON: Near Shift / AF-ON: Far Shift / AF-Point Scope / Focus Area Set / Enlarged Live Display (Video) / Flash Mode / Flash Adjust. / Wireless Flash Setup / Drive Mode Setting / Bracketing / Silent Mode / Image Stabilizer / Shutter Type / Ex. Tele Conv. / Live View Composite / Rec. File Format / Rec Quality / Rec Quality (My List) / Slow & Quick Setting / Time Code Display / Audio Information / Sound Rec Level Disp. / Mute Sound Input / Sound Rec Level Adj. / Sound Rec Quality / Sound Rec Level Limiter / 4ch Mic Input / XLR Mic Adaptor Setting / Sound Monitoring Channel / Image Stabilizer / E-Stabilization (Video) / Boost I.S. (Video) / Image Area of Video / Focus Transition / Q.MENU / Rec/Playback Switch / Video Record / Video Record (Creative Video) / LVF/Monitor Switch / Operation Lock / Dial Operation Switch / Preview / Preview Aperture Effect / Constant Preview / Level Gauge / Histogram / Luminance Spot Meter / Frame Marker / Photo Grid Line / Live View Boost / Monochrome Live View / Night Mode / LVF/Monitor Disp. Set / Video-Priority Display / Zebra Pattern / LUT View Assist (Monitor) / LUT View Assist (HDMI) / LUT Select / HLG View Assist(Monitor) / HLG View Assist (HDMI) / Sheer Overlay / I.S. Status Scope / WFM/Vector Scope / Anamorphic Desqueeze Display / Color Bars / Focus Ring Control / AF Micro Adjustment / Zoom Control / Step Zoom / Zoom Speed / Lens Information / Destination Card Slot / Wi-Fi / Save to Custom Mode / No Setting / Off (Disable Press and Hold) / Restore to Default |
PLAY |
Magnify from AF Point / LUT View Assist (Monitor) / HLG View Assist (Monitor) / Anamorphic Desqueeze Display / RAW Processing / Delete Single / Protect / Rating 1, 2, 3, 4, 5 / Copy / Rec/Playback Switch / LVF/Monitor Switch / Video Record / Video Record (Creative Video) / Night Mode / Card Slot Change / Sound Monitoring Channel(Play) / Wi-Fi / Send Image (Smartphone) / LUT View Assist (HDMI) / HLG View Assist (HDMI) / No Setting / Off (Disable Press and Hold) / Restore to Default |
OSD LANGUAGE |
|
Please refer to "OSD" Sheet |
INTERFACE |
USB |
USB Type-C (SuperSpeed USB 10Gbps (USB 3.2 Gen2)) |
HDMI (*4) |
HDMI |
HDMI TypeA Audio: ON / OFF, MP4: 2ch, MOV: 2ch (When [4ch Mic Input] is set to OFF.), 4ch (When [4ch Mic Input] is set to ON.) |
Monitor-through |
4:2:2 10bit (When [Rec Quality] is set to [4:2:2 10bit] or [4:2:0 10bit] or [4:2:0 8bit].) |
Playback |
59.94Hz: C4K/60p / C4K/30p / 4K/60p / 4K/30p / 1080/120p / 1080p / 1080i / 720p* / 480p* 50.00Hz: C4K/50p / C4K/25p / 4K/50p / 4K/25p / 1080/100p / 1080p / 1080i / 720p* / 576p* 24.00Hz: C4K/24p / 4K/24p / 1080p *Only for playback. |
Remote input |
φ2.5mm |
Audio |
Build-in microphone |
Stereo Wind Noise Canceller: OFF / Standard / High |
External microphone / External audio device input |
φ3.5mm for external microphone / external audio device MIC (Plug-in Power) / MIC / LINE Wind Cut: OFF / Low / Standard / High *When attaching Φ3.5mm microphone. Special Mic: Stereo / Shotgun *When attaching DMW-MS2 (sold separately). |
XLR microphone |
Yes with DMW-XLR1 (sold separately) |
4ch mic input |
Yes with DMW-XLR1 (sold separately) |
Speaker |
Monaural |
Headphone output |
φ3.5mm |
Card slot |
Slot 1, Slot 2 SD Memory Card / SDHC Memory Card* / SDXC Memory Card* *Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards. |
TC IN/OUT |
Count up |
|
Rec Run / Free Run |
|
Time code mode |
|
Drop Frame / Non-Drop Frame (When system frequency [59.94Hz] is selected.) |
|
HDMI time code output |
ON / OFF |
WIRELESS |
Wi-Fi |
2.4GHz (STA/AP) (IEEE802.11b/g/n) 5GHz (STA) (IEEE 802.11a/n/ac) Security: WPA/WPA2/WPA3 Please refer to "Wi-Fi" sheet |
Bluetooth |
Bluetooth® v5.0 (Bluetooth Low Energy (BLE)) |
DUST AND SPLASH RESISTANT* |
Yes. *Dust and Splash Resistant does not guarantee that damage will not occur if this camera is subjected to direct contact with dust and water. |
POWER |
Battery |
Li-ion Battery Pack (7.2V, 2200mAh, 16Wh) (bundled) USB power supply, USB power charging, USB power delivery |
Battery life (CIPA standard) |
When using SD memory card |
Approx. 370 images, 1300 images (Power Save LVF mode*) with H-ES12060 / DMW-BLK22 Approx. 390 images, 1350 images (Power Save LVF mode*) with H-FS12060 / DMW-BLK22 *Using a Panasonic SDXC memory card. Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec. |
When using external USB-SSD (*6) |
Approx. 310 images with H-ES12060 / DMW-BLK22 Approx. 320 images with H-FS12060 / DMW-BLK22 *Using a Samsung external SSD (T7 Shield 2TB1TB). Under the test conditions specified by Panasonic based on CIPA standard. |
Continuous recordable time (Motion picture) (*1) |
When using SD memory card |
MP4 [4K/60p]: Approx. 90 min *When using H-ES12060 / H-FS12060. When the battery is fully charged. |
When using external USB-SSD |
MP4 [4K/60p]: Approx. 80 min *When using H-ES12060 / H-FS12060. When the battery is fully charged. |
Actual recordable time (Motion picture) (*1) |
When using SD memory card |
MP4 [4K/60p]: Approx. 45 min *When using H-ES12060 / H-FS12060. When the battery is fully charged. |
When using external USB-SSD |
MP4 [4K/60p]: Approx. 40 min *When using H-ES12060 / H-FS12060. When the battery is fully charged. |
Battery grip |
DMW-BG1 (sold separately) |
DIMENSIONS / WEIGHT |
Dimensions (W x H x D) |
Approx. 134.3 x 102.3 x 90.1 mm / 5.29 x 4.03 x 3.55 inch (Body only, excluding protrusions) Approx. 134.3 x 102.3 x 140.7 mm / 5.29 x 4.03 x 5.54 inch (with H-FS12060, excluding protrusions) Approx. 134.3 x 102.3 x 153.8 mm / 5.29 x 4.03 x 6.06 inch (with H-ES12060, excluding protrusions) |
Weight |
Approx. 658g / 1.45 lb (Body, Hot Shoe Cover, Battery, SD Memory Card x 1) (excluding body cap) Approx. 575g / 1.27 lb (Body, Hot Shoe Cover) (excluding body cap) |
OPERATING ENVIRONMENT |
Operating temperature |
-10oC to 40oC (14oF to 104oF) |
Operating humidity |
10%RH to 80%RH |
