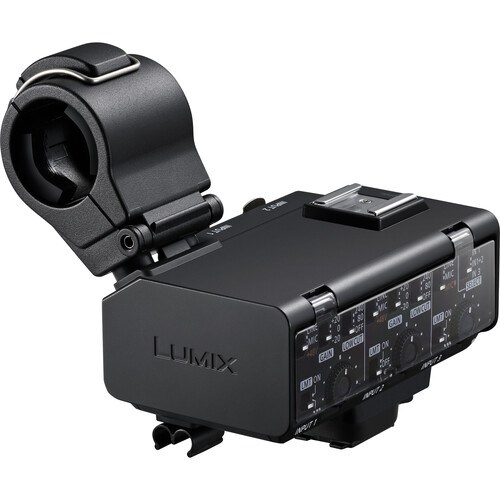

Panasonic XLR2 Adaptor

Name: Panasonic XLR2 Adaptor
Brand: Panasonic
SKU: 119540
Availability: OutOfStock
Rating: 4.6 (117 reviews)

Key Features

Connects to DC-GH7 through Hot Shoe
Provides Two XLR Audio Inputs
One 3.5mm Stereo Mini Jack Input
Control Panel with Clear Cover
Physical Switches & Dials
Recording at up to 96 kHz & 24-Bit
48V Phantom Power on XLR or 3.5mm
Cable Clamp for Wire Management
Additional Shoe Mount on Top of Unit
Powered by Camera

Expand the audio capabilities of your DC-GH7 mirrorless camera with this shoe-mounted DMW-XLR2 XLR Microphone Adapter from Panasonic. It is powered by the camera directly through the hot shoe and provides two XLR inputs for using professional microphones, and there is an additional 3.5mm stereo audio input for alternative mic options.

Compatibility	Panasonic Lumix DC-GH7
Input Level	XLR: LINE: 0 dBu MIC, +48V: -40 dBu (0 dBu=0.775 Vrms) 3.5 mm Jack: LINE: -10 dBV MIC, MIC (plug-in power): -40 dBV (0 dBV=1 Vrms)
Phantom Power	XLR: 48 V 3.5 mm: 2.5 V
Input Level	-12 dBFS
Frequency	20 Hz to 40 kHz, +1/-1 dB (During Fs=96 kHz, During LINE)
Sampling Rate	Linear/Float: 48 kHz, 24-Bit, 2-Channel 96 kHz, 24-bit, 2-Channel (Select One of INPUT1, INPUT1+2, or INPUT3) 48 kHz, 24-bit, 4-Channel

Inputs / Outputs

Audio I/O

2x XLR 3-Pin Input
1x 1/8" / 3.5 mm Mic Input (Stereo)

Power

Power Source

Camera

Environmental

Operating Temperature	14 to 104°F / -10 to 40°C
Operating Humidity	10 to 80%

Physical

Mounting	Bottom: 1x Hot Shoe Top: 1x Cold Shoe
Color	Black
Dimensions	3.6 x 2.4 x 2.4" / 92 x 61.2 x 60.9 mm (Without Microphone Holder) 4.2 x 3.7 x 3.6" / 106.2 x 94.6 x 92 mm (With Microphone Holder)
Weight	5.6 oz / 158 g (Without Microphone Holder) 6.8 oz / 192 g (With Microphone Holder)
