Sensor Type 35mm full frame (35.7 x 23.8 mm), Exmor R CMOS sensor
No. of pixels
(effective)
Approx. 61.0 megapixels
No. pixels (total) Approx. 62.5 megapixels
Image Stabilisation Image Sensor-Shift mechanism with 5-axis compensation (Compensation depends on lens
specifications). 8.0 stops (based on CIPA standard. Pitch/yaw shake only. With FE 50mm F1.2 GM
lens mounted. Long exposure NR off.)
RECORDING
SYSTEM
(STILLS)
Format JPEG (DCF Ver. 2.0, Exif Ver. 2.32, MPF Baseline compliant), HEIF (MPEG-A MIAF compliant), RAW
(Sony ARW 4.0 format compliant)
Image Quality RAW (Compressed / Lossless Compressed (L / M / S) / Uncompressed), HEIF (4:2:0 / 4:2:2) (Extra
fine / Fine / Standard / Light), RAW & JPEG, RAW & HEIF
Colour Space sRGB standard (with sYCC gamut), Adobe RGB standard and Rec. ITU-R BT.2100 standard (BT.2020
gamut).*1
Creative Look ST, PT, NT, VV, VV2, FL, IN, SH, BW, SE, Custom Look (1-6)
RECORDING
SYSTEM
(MOVIE)
Recording Format XAVC S, XAVC HS, XAVC S-I
Recording Settings
(PAL)
XAVC HS 8K: 7680 x 4320 (4:2:0, 10bit, PAL) (Approx.) 25p (400 Mbps / 200 Mbps); XAVC HS 4K:
3840 x 2160 (4:2:0, 10bit, PAL) (Approx.) 50p (150 Mbps / 75 Mbps / 45 Mbps), 3840 x 2160 (4:2:2,
10bit, PAL) (Approx.) 50p (200 Mbps / 100 Mbps); XAVC S 4K: 3840 x 2160 (4:2:0, 8bit, PAL) (Approx.)
50p (150 Mbps), 25p (100 Mbps / 60 Mbps), 3840 x 2160 (4:2:2, 10bit, PAL) (Approx.) 50p (200
Mbps), 25p (140 Mbps); XAVC S HD: 1920 x 1080 (4:2:0, 8bit, PAL) (Approx.) 100p (100 Mbps / 60
Mbps), 50p (50 Mbps / 25 Mbps), 25p (50 Mbps / 16 Mbps), 1920 x 1080 (4:2:2, 10bit, PAL) (Approx.)
50p (50 Mbps), 25p (50 Mbps), XAVC S-I 4K: 3840 x 2160 (4:2:2, 10bit, PAL) (Approx.) 50p (500
Mbps), 25p (250 Mbps); XAVC S-I HD: 1920 x 1080 (4:2:2, 10bit, PAL) (Approx.) 50p (185 Mbps), 25p
(93 Mbps)
Slow & Quick
Format
XAVC S, XAVC HS
(S&Q) Frame Rate
(PAL)
PAL mode: 1fps, 2fps, 3fps, 6fps, 12fps, 25fps, 50fps, 100fps
Colour Space Rec. ITU-R BT.2100 standard compatible (BT.2020 gamut)*4
Picture Profile Yes (Off / PP1-PP11) Parameters: Black level, Gamma (Movie, Still, S-Cinetone, Cine1-4, ITU709,
ITU709 [800%], S-Log2, S-Log3, HLG, HLG1-3), Black Gamma, Knee, Color Mode, Saturation, Color
Phase, Color Depth, Detail, Copy, Reset
AUDIO Audio Recording
Format
LPCM 2ch (48 kHz 16 bit), LPCM 2ch (48 kHz 24 bit) , LPCM 4ch (48 kHz 24 bit) , MPEG-4 AAC-LC 2ch
Microphone Built-in, stereo
Speaker Built-in, monaural
MEDIA Slots SLOT1: Multi slot for SD (UHS-I/II compliant) memory card / CFexpress Type A card,
SLOT2: Multi slot for SD (UHS-I/II compliant) memory card / CFexpress Type A card
WHITE
BALANCE
WB Options Auto / Daylight / Shade / Cloudy / Incandescent / Fluorescent / Flash / Underwater / Color Temperature (2500 to 9900 K) & color filter / Custom
FOCUS SYSTEM Type Fast Hybrid AF (phase-detection AF / contrast-detection AF)
Focus Point 35mm full frame: 693 points (phase-detection AF), APS-C mode with FF lens: 693 points (phase-detection AF), with APS-C lens: 567 points (phase-detection AF) / 25 points (contrast-detection AF)
AF Modes AF-A (Automatic AF), AF-S (Single-shot AF), AF-C (Continuous AF), DMF (Direct Manual Focus),
Manual Focus
Focus Area Wide / Zone / Center Fix / Spot / Expand Spot / Tracking
Eye AF Human (Right/Left Eye Select) / Animal (Right/Left Eye Select) / Bird / Insect / Car|Train / Airplane
EXPOSURE
CONTROL
Modes STILLS: AUTO (iAuto), Programmed AE (P), Aperture priority (A), Shutter-speed priority (S), Manual
(M); MOVIE: (Programmed AE (P) / Aperture priority (A) / Shutter-speed priority (S) / Manual (M)
/ Flexible Exp. Mode); Slow & Quick Motion (Programmed AE (P) / Aperture priority (A) / Shutterspeed priority (S) / Manual (M) / Flexible Exp. Mode)
ISO Range Still images: ISO 100-32000 (ISO numbers up from ISO 50 to ISO 102400 can be set as expanded
ISO range.), AUTO (ISO 100-12800, selectable lower limit and upper limit), Movies: ISO 100-32000
equivalent, AUTO (ISO 100-12800, selectable lower limit and upper limit)
VIEWFINDER Type 1.6 cm (0.64 type) electronic viewfinder (Quad-XGA OLED)
Resolution 9 437 184 dots
Field Coverage 100%
Frame Rate (PAL) PAL mode: STD 50fps / HI 100fps
E&OE – every effort is made to ensure information herein is accurate at the time of publication.
Model SRP EAN
PCK-LG3 $59.00 4548736142190
Model SRP EAN
HVL-F60RM2 $849.00 4548736133297
Main Specifications

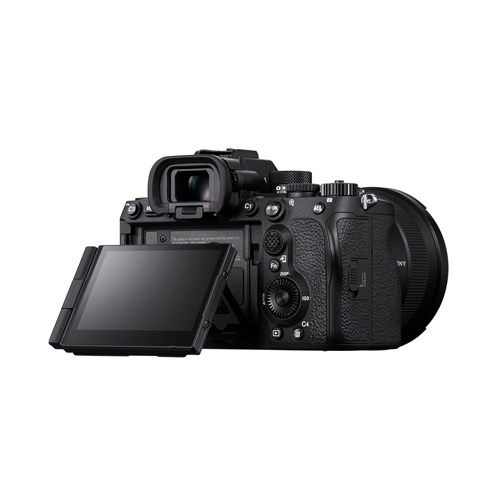

LCD SCREEN Type 8.0 cm (3.2-type) type TFT
Resolution 2 095 104 dots
Touch Panel Yes
Adjustable Angle Opening Angles (approx.): Up 98 °, down 40 °, side 180 °, rotation 270 °
SHUTTER Type Electronically-controlled, vertical-traverse, focal-plane type
Shutter Speed
Range
Still images: 1/8000 to 30 s, Bulb, Movies: 1/8000 to 1/4 (1/3 steps), up to 1/50 in AUTO mode (up
to 1/25 in Auto slow shutter mode)
Flash Sync Speed 1/250 s (35mm full frame), 1/320 s (APS-C)
Electronic Front
Curtain
Yes (ON/OFF)
Silent Shutter Yes (ON/OFF)
Modes Single Shooting, Continuous shooting (Hi+/Hi/Mid/Lo selectable), Self-timer, Self-timer (Cont.),
Bracket: Single, Bracket: Cont., Focus Bracket, White Balance bracket, DRO bracket

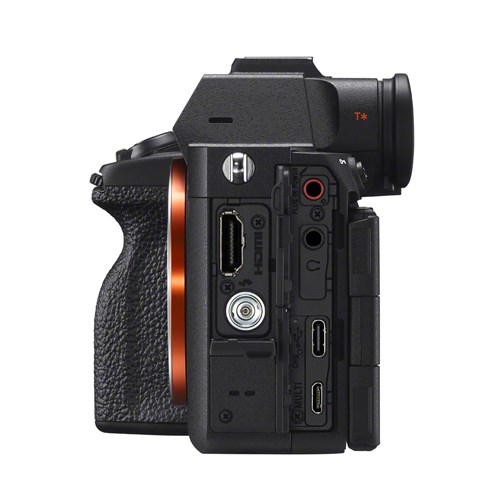

INTERFACE Video Output HDMI connector (Type-A): 3840 x 2160 (60p / 50p / 30p / 25p / 24p) / 1920 x 1080 (60p / 50p /
24p) / 1920 x 1080 (60i / 50i), YCbCr 4:2:2 10bit / RGB 8bit; 7860 x 4320 (24p / 25p), YCbCr 4:2:0
8bit*5
Multi Interface shoe Yes (with Digital Audio Interface)
Wireless LAN
(built-in)
Yes (Wi-Fi Compatible, IEEE 802.11a/b/g/n/ac (2.4 GHz band/5 GHz band))*19 *20
Remote Control
(wireless)
Yes (Bluetooth remote control)
Bluetooth Yes (Bluetooth Standard Ver. 5.0 (2.4 GHz band))
USB-C Yes (SuperSpeed USB 10 Gbps (USB 3.2) compatible)
CONSTRUCTION Chassis Material Magnesium Alloy
Dust & Weather
Resist.
Yes
Dimensions Approx. 131.3 x 96.9 x 82.4 mm, Approx. 131.3 x 96.9 x 72.3 mm (from grip to monitor)
Weight Approx. 723 g (with battery and memory card)
USB Streaming Video data format MJPEG
Video resolution 3840 x 2160 (15p / 12.5p) / 1920 x 1080 (60p / 50p / 30p / 25p) / 1280 x 720 (30p / 25p)
Audio data format LPCM 2ch (16 bit 48 kHz)
Simultaneous
internal recording
Yes
Video data format YUV420
BATTERY Battery Model NP-FZ100
Battery Life STILL IMAGES: Approx. 440 shots (Viewfinder) / Approx. 530 shots (LCD monitor) (CIPA standard);
MOVIE: Approx. 90 min (Viewfinder) / Approx. 100 min (LCD monitor) (CIPA standard)
