Sony ECM-B10 Shotgun Microphone

Key Features

Multi Interface Shoe Connection
Portable & Lightweight

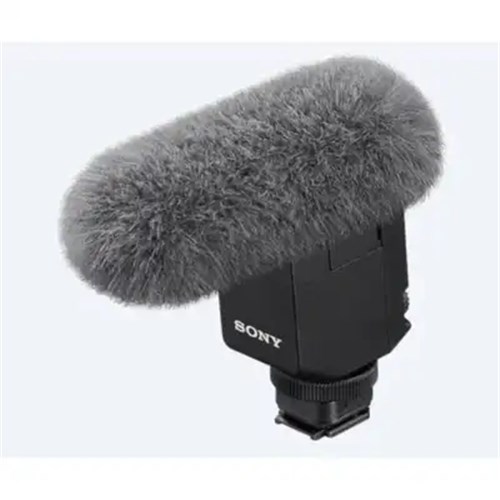

Windshield Included
Dimensions: 79.3mm x 27.4mm x 81.7mm
Selectable Patterns: Super-directional, Unidirectional and
Omnidirectional

The Sony ECM-B10 Shotgun Microphone is a portable and powerful directional microphone, perfect for use on location. The portability of this microphone makes it ideal for aspiring filmmakers, bloggers, students and more and is helped along by its cable-free, battery-free design. The multi interface shoe connection allows this microphone to record high-quality digital audio with compatible Sony cameras, while the MI Shoe is weather-sealed and provides less interference.

Primary Applications	Audio for Video, Location Sound
Form Factor	Camera-Mount
Intended Sound Sources	Speech/Voice Over
Sound Field	Mono
Capsule	Electret Condenser
Polar Pattern	Omnidirectional, Supercardioid, Unidirectional
Pattern Selection	Switched
Orientation	End Address
Pad	-10 dB -20 dB
High-Pass Filter	Yes
Tone Adjustment	Low Cut
Gain Adjustment	0 dB to 10 dB

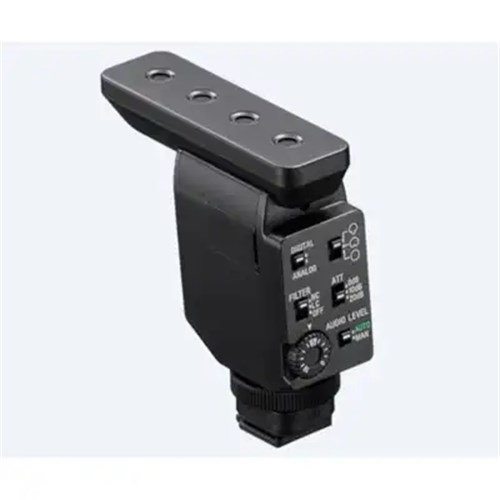

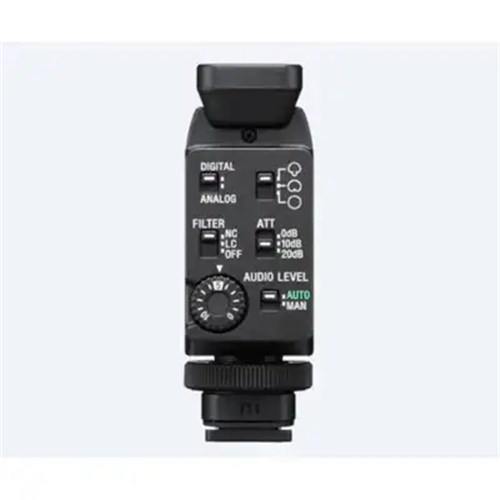

On-Board Controls	Gain/Sensitivity, LF, Polar Pattern
Windscreen	Windsock/Windjammer (Included)

Performance

Frequency Range	40 Hz to 20,000 Hz
Sensitivity	-20 dBFS
Dynamic Range	105 dB
Equivalent Noise Level	15 dB

Connectivity

Output Connectors (Analog)	None
Digital Output Connector	1 x Unspecified Interface (on Mic)
Headphone Connector	None

Digital Audio

Digital Signal Processing	Gain, Noise Reduction
OS Compatibility	None

Power

Bus Power

None

Physical

Color	Black
Mounting	Camera/Shoe-Mount
Mounting Thread Size	Not Specified by Manufacturer
Included Case	Pouch
Included Filters	None
Dimensions	H: 3.2 x W: 1.1 x L: 3.1" / H: 81.7 x W: 27.4 x L: 79.3 mm
Weight	2.5 oz / 72 g
