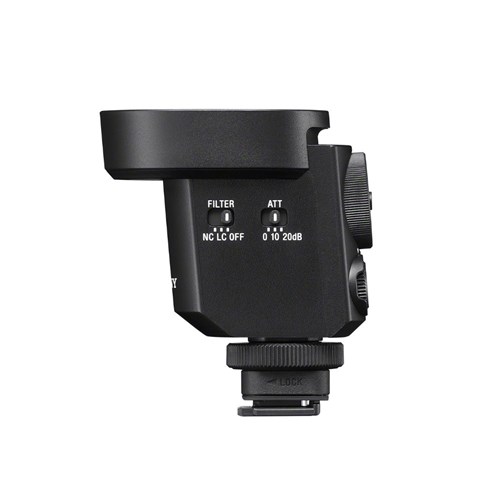

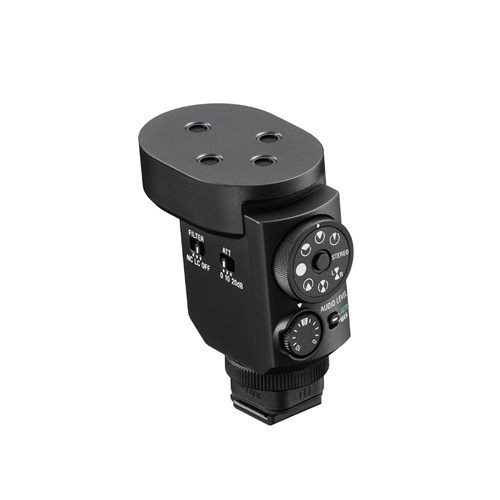

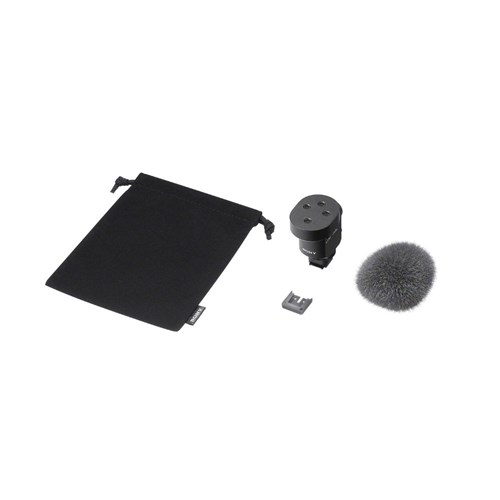

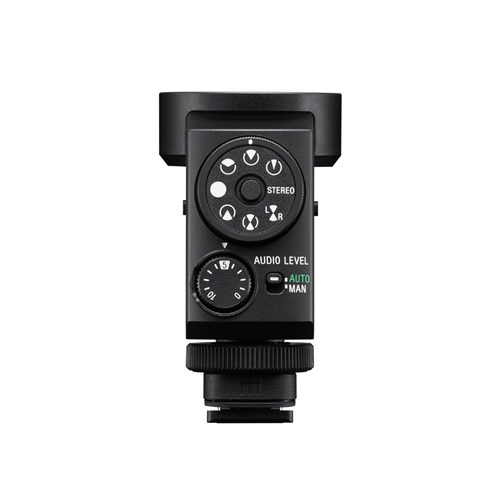

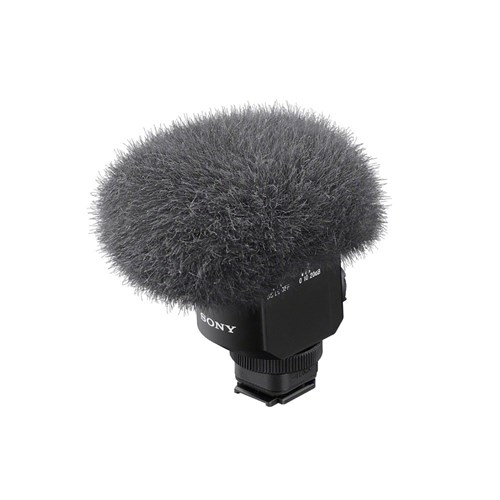

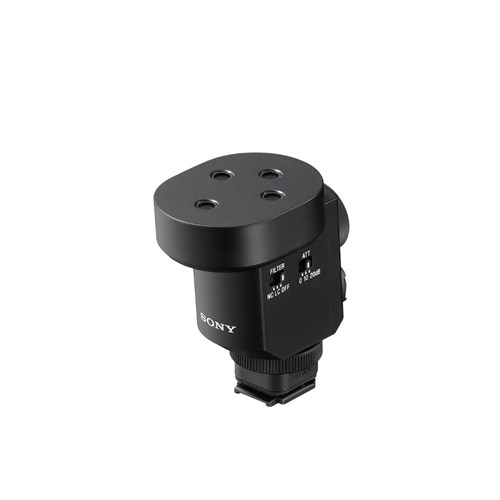

Sony ECM-M1 Mid Beamforming Shotgun Microphone

Key Features:

Easy selection of 8 audio recording modes for targeted pickup
Noise effectively suppressed for clear, high-quality recording
Flexibly adapts to a broad range of shooting situations
Outstanding versatility, control, and reliability

The ECM-M1 extends the beamforming technology used in the ECM-B1M and ECM-B10 microphones to provide a wide variety of pickup patterns, suitable for multiple roles in a production environment. Simply turn the rear dial on the ECM-M1 and it transforms from a highly directional shotgun to a general-purpose omni, from a conversational stereo mic to a specialized front-andrear microphone. Not only does the ECM-M1 deliver in a wide range of roles, but it also simplifies camera setup and prevents production errors by supplying microphone power direct from the camera body, ensuring a simple, intuitive connection process.

Dimension(Approx.)	W 40.0 mm x H 72.2 mm x D 64.4 mm (1 5/8 inches x 2 7/8 inches x 2 5/8 inches)
Weight(Approx.)	65 g (2.3 oz)
Operating Temperature	0 ℃ to 40 ℃ (32 °F to 104 °F)
Microphone Channel Audio Output	Analog 2ch / Digital 4ch
Shoe Type	Multi Interface Shoe
Power Supply from Main Unit	Multi Interface Shoe
Type	Back Electret Condenser Microphone
Monaural / Stereo	Monaural / Stereo
Directivity	Super-directional/unidirectional/omnidirectional/Super-directional (Rear)/Super-directional (Front+Rear)/Super-directional (Front/Rear)separate/STEREO/Ultra-directional
Frequency response	40 Hz to 20 000 Hz
Front sensitivity	-20 dBFS (0.1 Pa, 1 kHz) *1
Intrinsic noise	14 dB SPL or less (0 dB = 2×10<sup>-5</sup> Pa) 1 2 *3
Maximum input sound pressure level	120 dB SPL1 4
Microphone out jack	-
