Sony FR7 PTZ Camera

117700

inc GST
Increase value Decrease value
Found a better price? We'll match it!* Price Match Now
  • Product Description
  • Specifications
  • What's in the Box?

Sony FR7 PTZ Camera


Key Features
  • Supports up to UHD 4K120 Video
  • Sony E-Mount Lens Interchangeability
  • 4K Full-Frame Sensor
  • 12G-SDI, HDMI & Streaming Output
  • Variable Electronic ND Filter
  • Smooth, Slow Pan & Tilt Movement
  • IR, IP & Web App Remote Control
  • Flexible PoE+ Installation
  • Genlock, Timecode & Tally Lamps
  • The FR7 combines a 4K full-frame sensor and compatibility with Sony E-mount lenses to produce outstandingly expressive, cinematic imagery
  • 15+ stops of dynamic range and a base ISO of 800 that is expandable from 12,800 to 409,600 for capturing optimal video in an array of lighting conditions
  • Compatibility with up to 70 Sony E-mount lenses covers a range of 12 to 1200mm, enabling you to capture the widest vistas and the closest details
  • Use with G Master (GM) lenses to obtain impressive resolution and pleasing bokeh
  • An integrated, electronic ND filter offers variable ND filtration ranging from 1/4 (2 stops) to 1/128 (7 stops)
  • Use the ND filter to compensate for changes in exposure without affecting your depth of field
  • Create shallow depth-of-field effects by adding the ND and opening the iris
  • Output video using the HDMI and up to 12G-SDI video outputs
  • Stream RTSP, SRT, or NDI|HX (requires NewTek license) using the LAN port
  • The included IR remote can be used for pan, tilt, zoom (PTZ), focus, recording, playback, and other camera settings
  • Use with the separately available RM-IP500 control panel with joystick zoom rocker, and buttons
  • Web app remote control can be accessed from a tablet or PC browser


Capture cinematic, full-frame footage in PTZ form for broadcast use, reality shows, houses of worship, and live events and sports with the black FR7 Cinema Line PTZ Camera from Sony. This versatile camera features the unique ability to use interchangeable Sony E-mount lenses and is currently compatible with up to 70 E-mount lenses ranging from 12 to 1200mm. The large image sensor provides 15+ stops of dynamic range, captures up to UHD 4K120 video, offers live streaming, supports S-Cinetone, Cine EI, and MLUT looks for matching select Sony cameras, and enables you to create shallow depth-of-field bokeh effects.

Lens Mount    Sony E
Sensor Type    CMOS Sensor
Sensor Resolution    Actual: 12.9 Megapixel
Effective: 10.3 Megapixel
Lens Communication    Yes, with Autofocus Support
Built-In ND Filter    2 to 7 Stop Electronic ND Filter
Focus Control    Autofocus
Autofocus Points    Phase Detection: 627
Exposure Control
Shutter Type    Electronic Rolling Shutter
Shutter Speed    1/8000 to 1 Second
ISO Sensitivity    800 to 12,800 (Extended: 409,600)
Gain    -3 to 30 dB
Advertised Dynamic Range    15 Stops
Flip / Mirror Support    Image Flip
White Balance    2000 to 15,000K
Presets: ATW, Set A
Video Capture
External Recording Modes    Raw 16-Bit via SDI/BNC
4096 x 2160 at 23.98p/24.00p/25p/29.97p/50p/59.94p
3840 x 2160 at 23.98p/25p/29.97p/50p/59.94p
1920 x 1080 at 23.98p/24.00p/25p/29.97p/50i/50p/59.94i/59.94p
HDMI
4096 x 2160 at 23.98p/24.00p/25p/29.97p/50p/59.94p
3840 x 2160 at 23.98p/25p/29.97p/50p/59.94p
1920 x 1080 at 23.98p/24.00p/25p/29.97p/50i/50p/59.94i/59.94p
720 x 480 at 59.94p
720 x 576 at 50p
Internal Recording Modes    XAVC-I 4:2:2 10-Bit
DCI 4K (4096 x 2160) at 23.98p/24.00p/25p/29.97p/50p/59.94p [240 to 600 Mb/s VBR]
UHD 4K (3840 x 2160) at 23.98p/25p/29.97p/50p/59.94p [240 to 600 Mb/s VBR]
1920 x 1080 at 23.98p/25p/29.97p/50p/59.94p [89 to 222 Mb/s]
XAVC-L
UHD 4K (3840 x 2160) at 23.98p/25p/29.97p/50p/59.94p [100 to 150 Mb/s VBR]
1920 x 1080 at 23.98p/25p/29.97p/50p/59.94p [35 to 50 Mb/s VBR]
Audio Recording    4-Channel 24-Bit 48 kHz LPCM Audio
Gamma Curve    HDR-HLG, Rec709, S Cinetone, Sony S-Log 3, Standard
IP Streaming    NDI|HX, RTSP, SRT: 640 x 360 to 4096 x 2160 (0.5 to 80.00 Mb/s)
Control
Presets    3 via IR
100 via IP
Move Speed    Pan: 0.02 to 60°/sec
Tilt: 0.02 to 60°/sec
Movement Range    Pan: 340° (-170 to 170°)
Tilt: 225° (-30 to 195°)
Tally Light    Yes
Supported Control Protocols    IR
VISCA

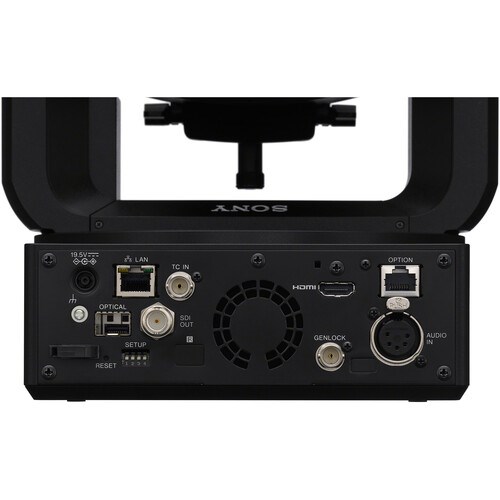

Interface
Media/Memory Card Slot    Dual Slot: CFexpress Type A / SD
Video I/O    1 x BNC (12G-SDI) Output
1 x SFP+ Output
1 x HDMI Output
Audio I/O    1 x XLR 5-Pin Mic/Line (+48 V Phantom Power) Input
Other I/O    1 x BNC (Timecode)
1 x RJ45 (LAN) Control
1 x BNC (Genlock)
1 x RJ45 (Tally)
Power
PoE Support    PoE++ 802.3bt
Power I/O    1 x Barrel (19.5 VDC) Input
Power Consumption    PoE: to 71.3 W
Power Supply: to 80 W
Environmental
Operating Temperature    32 to 104°F / 0 to 40°C
Storage Temperature    -4 to 140°F / -20 to 60°C
General
Mounting    2 x 1/4"-20 Female for Tripod
Sound Level    NC35
Dimensions (W x H x D)    11.4 x 9.2 x 8.9" / 289 x 233 x 227 mm (Without Protrusions)
Weight    10.1 lb / 4.6 kg (Body Only)
  • Sony FR7 Cinema Line PTZ Camera
  • RMT-RC1 Remote Commander
  • Lens Mount Cap for Body
  • AC Adapter
  • Power Cord
  • HDMI Cable Clamp
